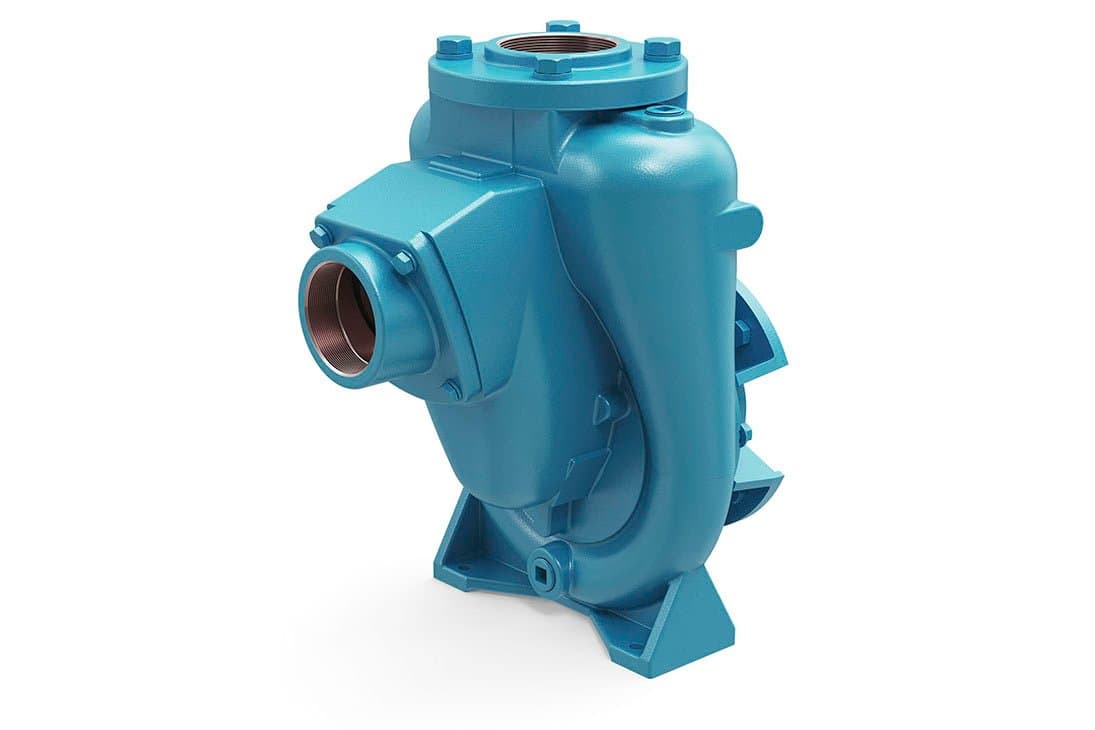

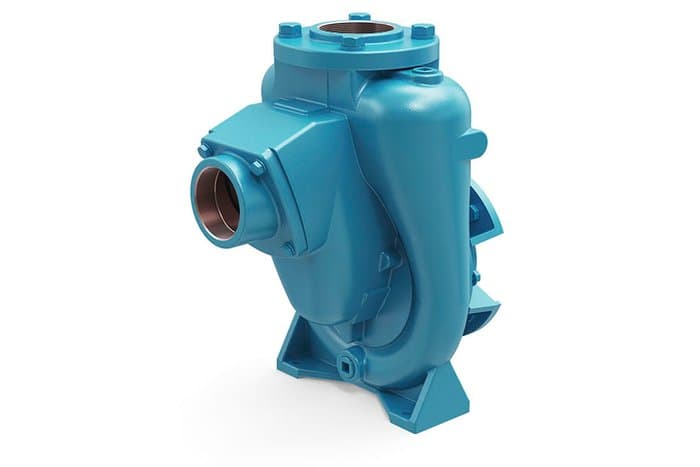

Flomax 30 PumPAK | Self Priming Centrifugal Pump End Only | MP35259
Flomax 30 PumPAK | Self Priming Centrifugal Pump End Only | MP35259
Art. No.: mp_mp35259
Art. No.: mp_mp35259
Key Features:
- Construction: Durable cast iron pump body for long service life
- Impeller: Semi-open, dynamically balanced bronze impeller (7.0" diameter)
- Seal: T-21 mechanical seal with single convolution for enhanced sealing
- Ports: 3" suction and 3" discharge (NPT threaded)
- Fasteners & Wear Components: Stainless steel fasteners, renewable wear plate, and stainless steel drive sleeve
Lead times temporarily extended to 20 weeks.
$5,182.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at Checkout.The MP 35259 is a high-performance pump end from the FLOMAX 30 series, designed for mounting onto compatible motors. Built with a rugged cast iron housing and a 7-inch diameter bronze impeller, this self-priming centrifugal pump end delivers reliable operation across demanding applications.
Engineered for efficient liquid handling, the FLOMAX 30 pump end features a T-21 single convolution mechanical seal and 3" NPT suction and discharge ports. It’s capable of lifting liquids up to 25 feet, thanks to its integrated flapper valve that maintains prime and optimizes pump performance.
This unit is sold as a pump end only, without a motor, making it ideal for users looking to couple it with existing 182TC to 256TC frame motors or gas engines. A bearing pedestal is also available for T-frame motors or belt-driven systems.
Performance Specs:
Engineered for efficient liquid handling, the FLOMAX 30 pump end features a T-21 single convolution mechanical seal and 3" NPT suction and discharge ports. It’s capable of lifting liquids up to 25 feet, thanks to its integrated flapper valve that maintains prime and optimizes pump performance.
This unit is sold as a pump end only, without a motor, making it ideal for users looking to couple it with existing 182TC to 256TC frame motors or gas engines. A bearing pedestal is also available for T-frame motors or belt-driven systems.
Performance Specs:
- Max Flow Rate: Up to 480 GPM
- Max Head: 190 feet
- Solids Handling: Passes solids up to 0.6 inches
- Material: Cast Iron
- Washdown systems
- Fire pump support
- Fertilizer and pesticide distribution
- Blending and transfer operations
