Impeller: 5.75-inch diameter for optimal performance
Port Size: 2-inch inlet and discharge ports
Suction Lift: Capable of lifting liquids up to 25 feet
Specifications:
Suction and Discharge: 2" x 2" NPT
Material: Cast Iron
Maximum Flow: 225 GPM
Maximum Head: 145 feet
Max Solid Handling: 0.625 inches
Lead times temporarily extended to 16 weeks.
$1,924.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

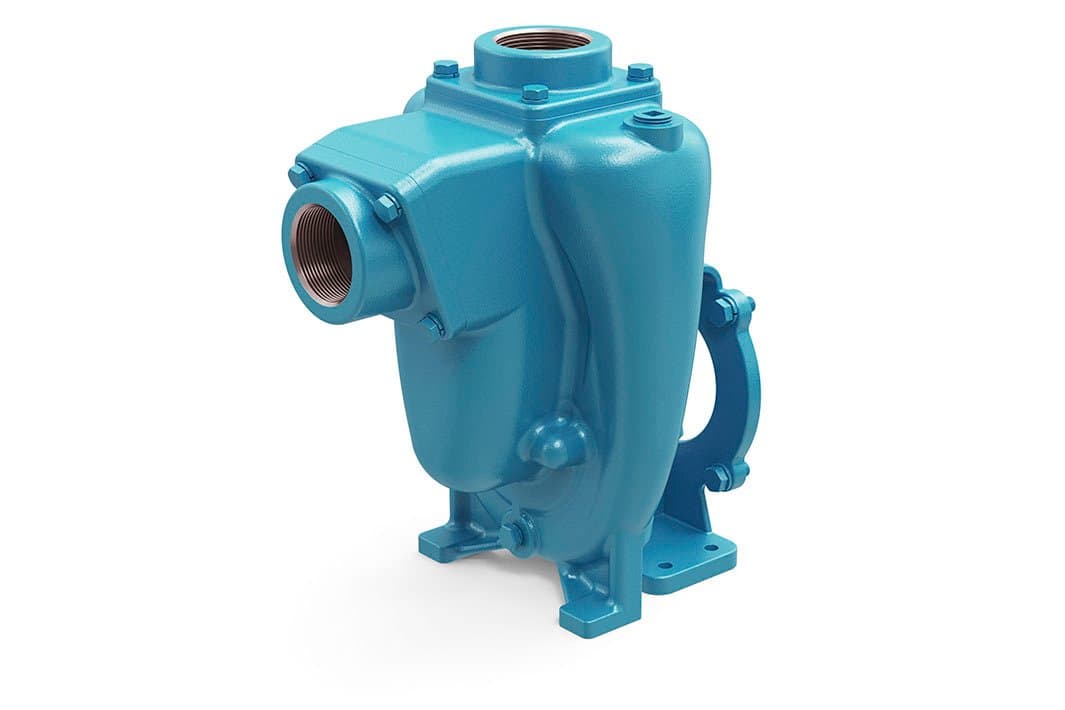

The MP 21366 is a robust and efficient self-priming centrifugal pump from the Flomax 10 series, designed for easy mounting on a motor. This pump end, featuring a 5.75-inch diameter impeller and 2-inch by 2-inch ports, is sold as a replacement unit without a motor.
The FLOMAX 10 pump is engineered to create a vacuum sufficient to lift liquids up to 25 feet. Once primed, its built-in flapper valve ensures a full column of liquid is maintained in the suction line. This pump can be easily coupled with hydraulic motors, 182TC/184TC motors, and gas engines. The FLOMAX 10 PumPAK is a fully assembled and tested pump end, ready to be paired with various drivers, including hydraulic motors, 182TC and 184TC frame motors, and gas engines. Additionally, a bearing pedestal is available for T-frame motor or belt drive applications.
Standard Features:
Stainless steel drive sleeve
Stainless steel fasteners
Renewable wear plate
Semi-open dynamically balanced impeller
The FLOMAX series pumps are versatile and commonly used in industrial, OEM, agricultural, and marine settings. Typical applications include:
