Compatibility: Easily close-coupled to hydraulic motors, 184TC/215TC frame motors, and gas engines, making it suitable for a wide range of uses.
Flapper Valve: Each FLOMAX 15 model includes a standard flapper valve to maintain a full column of liquid in the suction line.
Bearing Pedestal: Available for T-frame motors or belt drives, enhancing flexibility in installation.
FLOMAX 15 PumPAK: Fully assembled and run-tested pump end, ready to be coupled with various drivers such as hydraulic motors, 184TC and 215C frame motors, and gas engines.
Durable Construction: Features stainless steel drive sleeve, stainless steel fasteners, renewable wear plate, and a semi-open dynamically balanced impeller.
Lead times temporarily extended to 16 weeks.
$2,078.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

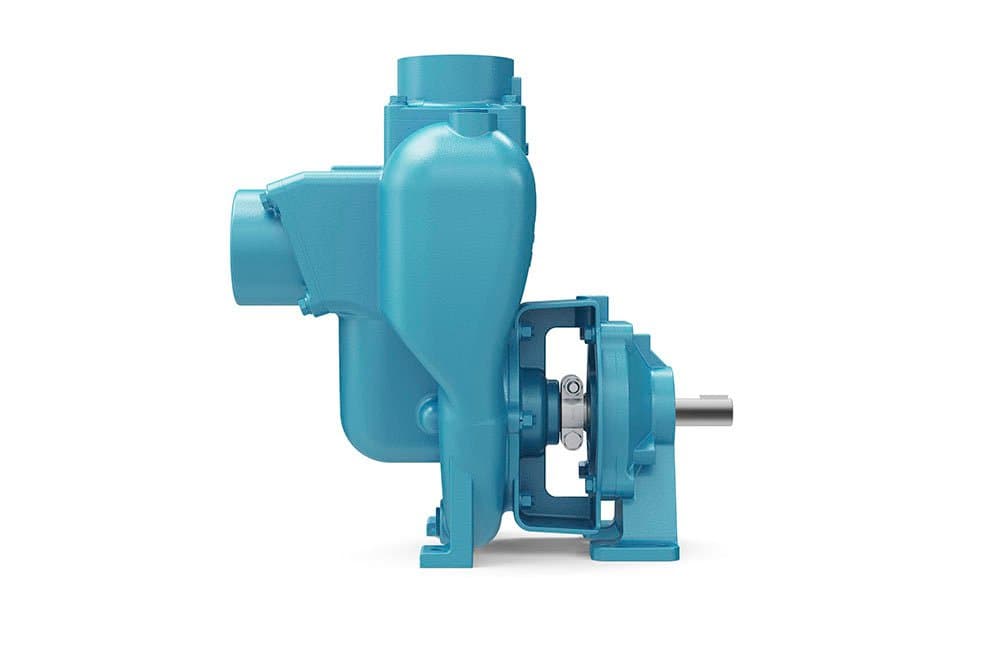

The MP 21381 is a robust and efficient Cast Iron Flomax 15 series pedestal self-priming centrifugal pump, designed for versatile applications. This pump features a 6.0-inch diameter impeller and 3-inch by 3-inch NPT ports, and is provided as a replacement pump end only, without a motor.
Engine/Motor Details:
Fuel Type: Pedestal
Engine/Motor Type: Pedestal
Pump RPM: 3450
Pump Specifications:
Type: Self-Priming Pump
Style: Centrifugal Pump
Inlet Diameter: 3"
Outlet Diameter: 3"
Max Gallon Per Minute (GPM): 320.0
Max Total Head (Static): 134 Feet
Maximum Pressure (PSI): 58
Max Suction Lift (Static, Wet, @ Sea Level): 25 Feet
Solids Handling: Yes, up to 0.625"
Self-Priming: Yes, Wet Prime
Housing Material: Cast Iron
Impeller Diameter: 6"
Impeller Type: Semi-Open
Seal Type: Mechanical
Seal Material: Carbon / Ceramic / Viton
Shaft Sleeve Material: Stainless Steel
Temperature Range: Up to 250°F
Port Type: NPT
Max Casing Pressure: 100 PSI
The FLOMAX series pumps are ideal for industrial, OEM, agricultural, and marine applications, including:
