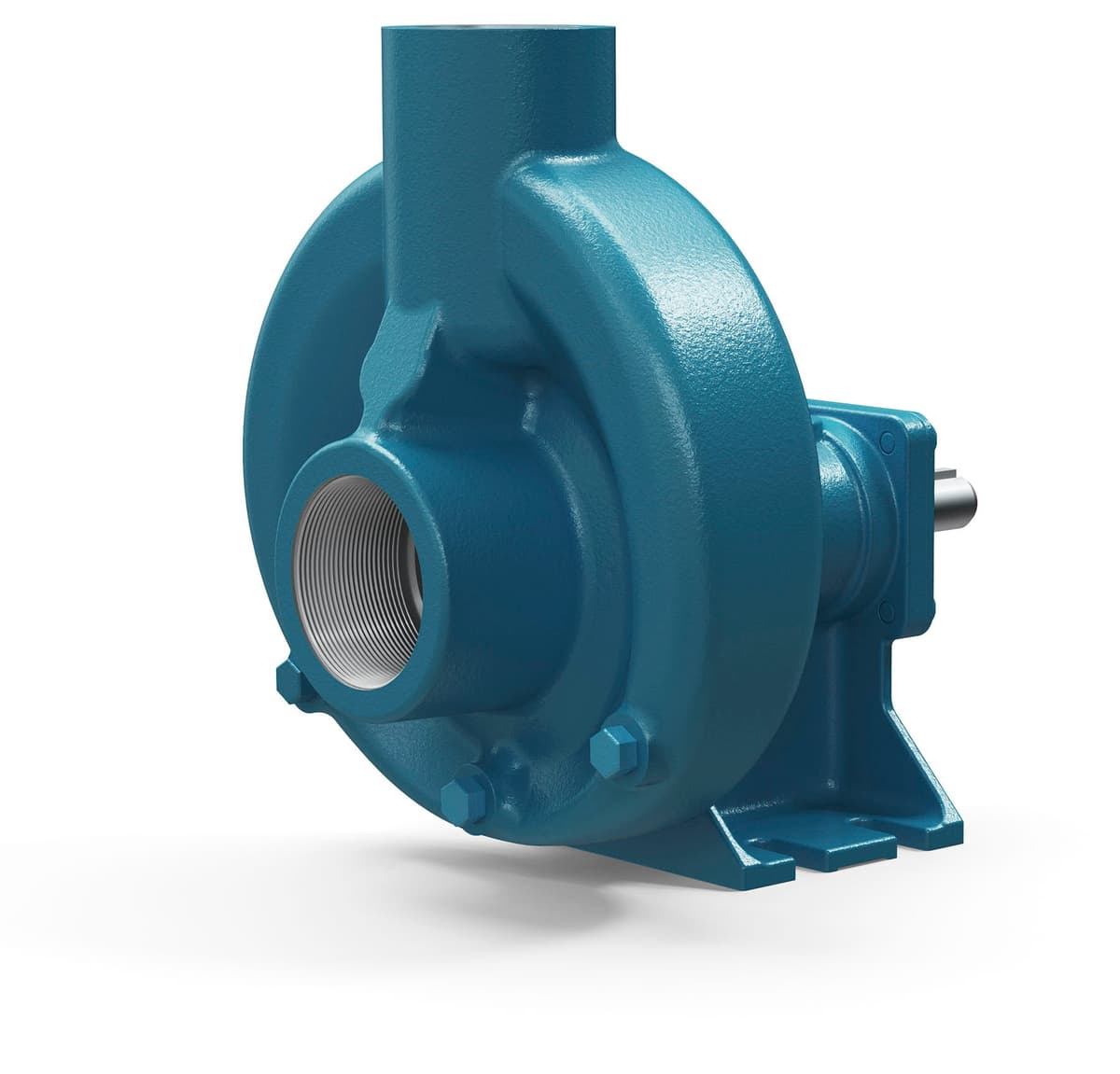

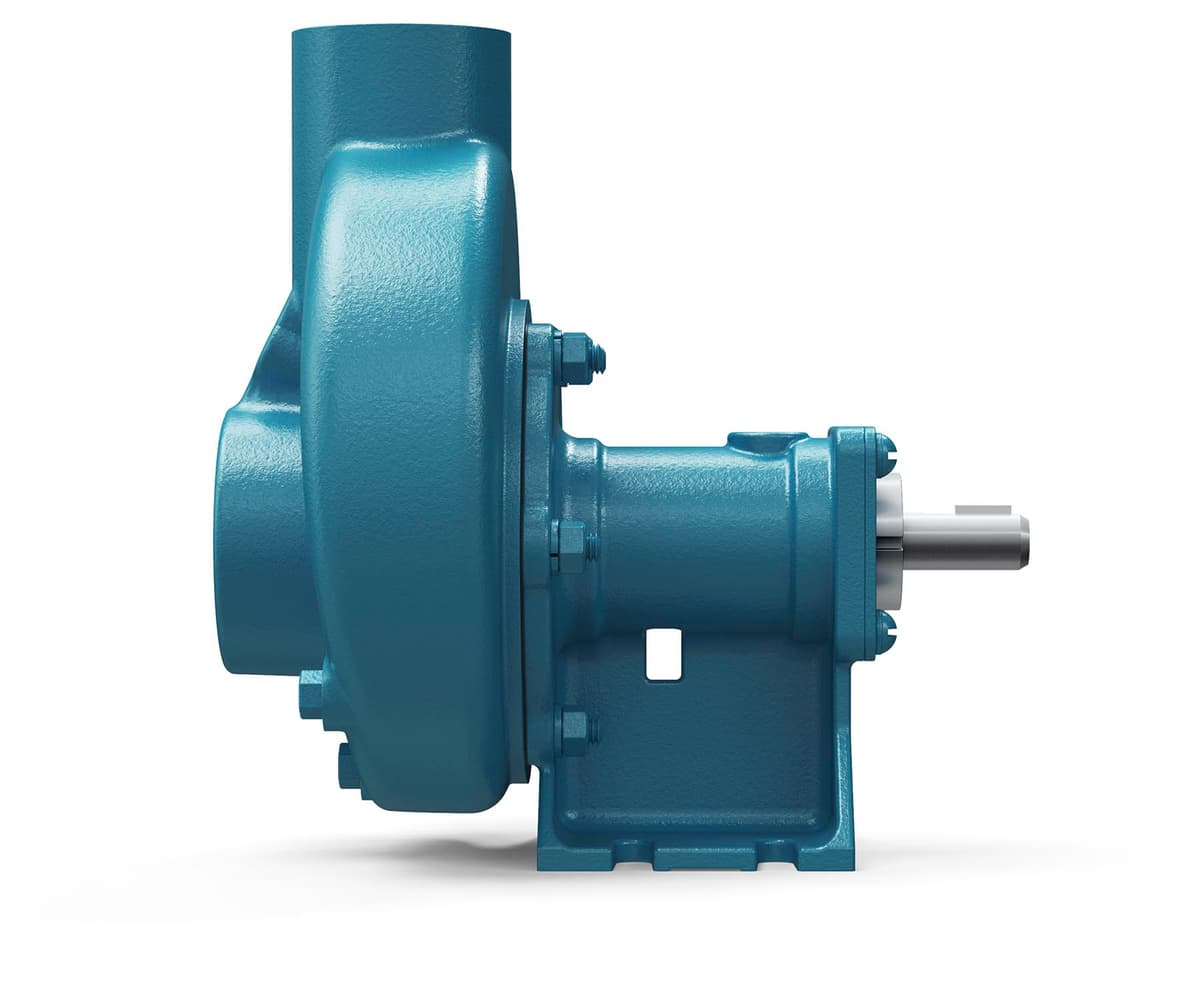

Series 130 | End Suction Centrifugal Pump and Motor Unit | MP22730
Series 130 | End Suction Centrifugal Pump and Motor Unit | MP22730
Art. No.: mp_mp22730
Art. No.: mp_mp22730
Key Features:
Pump Body: Cast Iron
Motor Specifications: 3 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)
Maximum Flow: 160 GPM
Maximum Head: 60'
Maximum Solid: 0.53"
Suction and Discharge: 2" x 1-1/2" NPT
Lead times temporarily extended to 16 weeks.
$2,174.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The MP 22730 is a robust and reliable pump and motor unit, designed for demanding industrial applications. This unit features a powerful 3 horsepower motor, operating at 230/460 volts with three-phase TEFC (Totally Enclosed Fan Cooled) technology. The Series 130 end suction centrifugal pumps are expertly close-coupled to standard NEMA "C" face motors, ensuring seamless integration and performance.
Versatile Construction Options Available in cast iron, bronze, or aluminum, the MP 22730 pump is built to withstand various environments. Stainless steel fasteners are used throughout to minimize corrosion and extend the lifespan of the pump.
Applications Ideal for agricultural, commercial, industrial, and OEM sectors, these end suction centrifugal pumps offer reliable performance across a wide range of liquid handling tasks.
Enhanced Efficiency and Durability The dynamically balanced impellers enhance efficiency and prolong bearing life. The standard carbon/ceramic/Viton mechanical seal is self-adjusting and corrosion-resistant, capable of handling a diverse array of liquids.
Convenient Installation The MP PumPAK units are thoroughly tested and available without motors, allowing for quick and easy mounting to standard NEMA C frame motors in just minutes.
