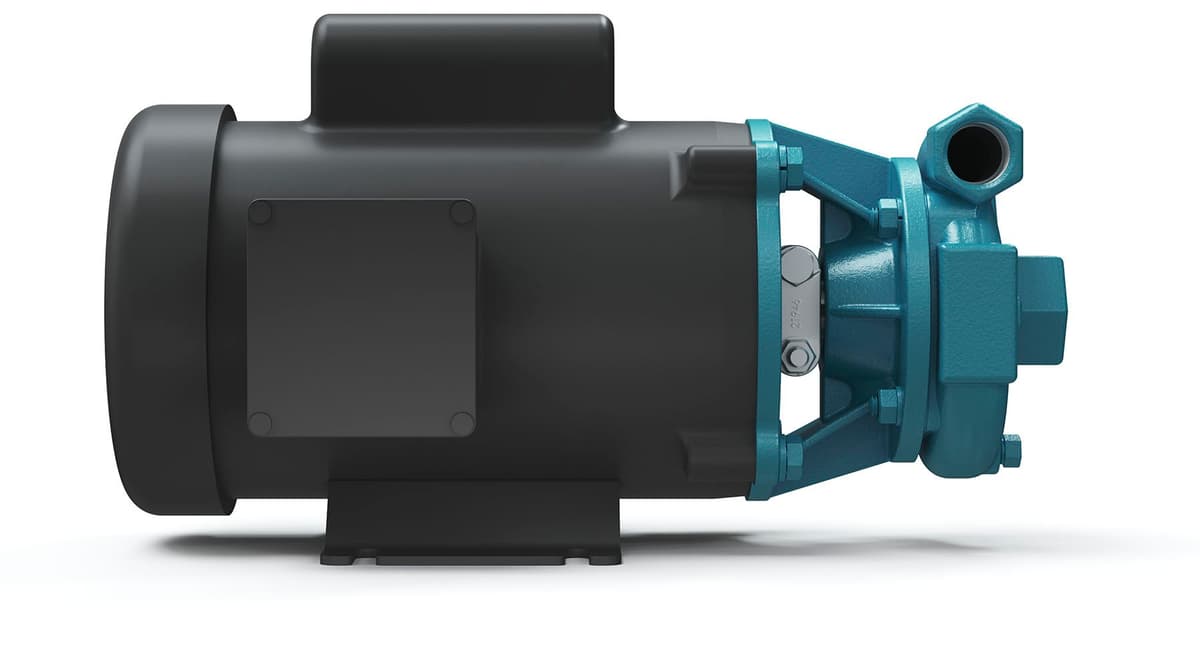

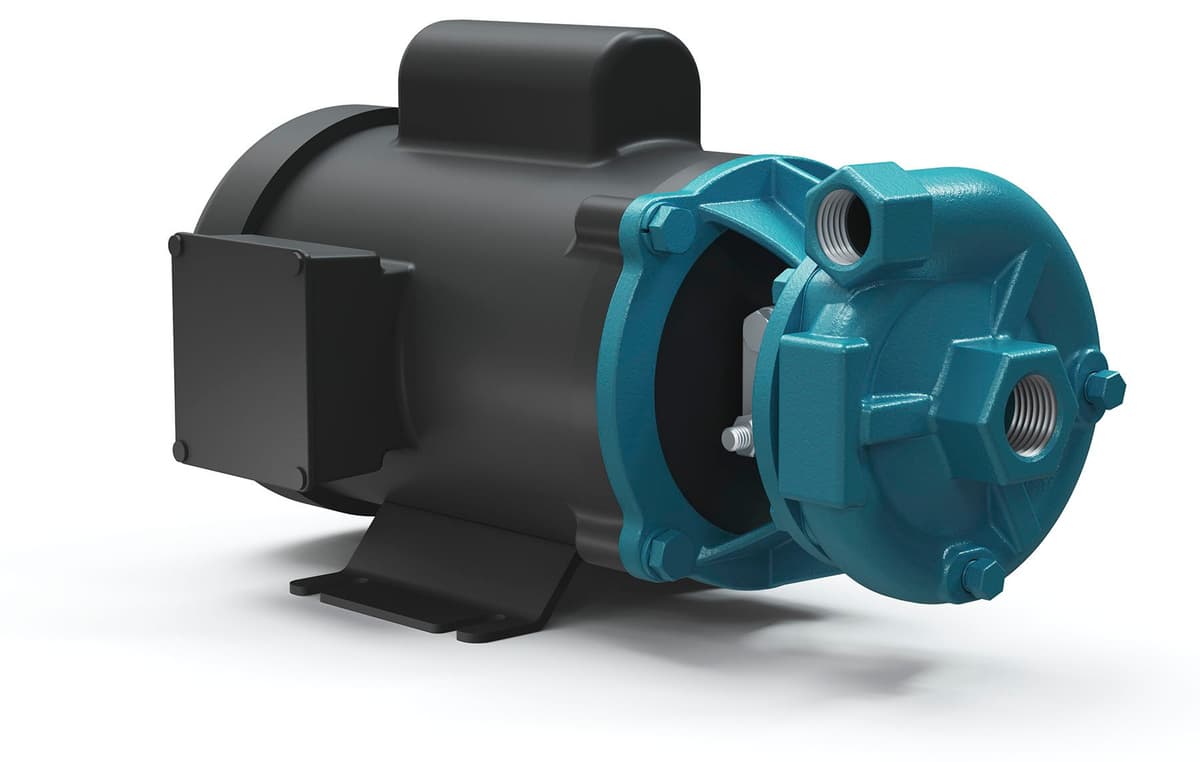

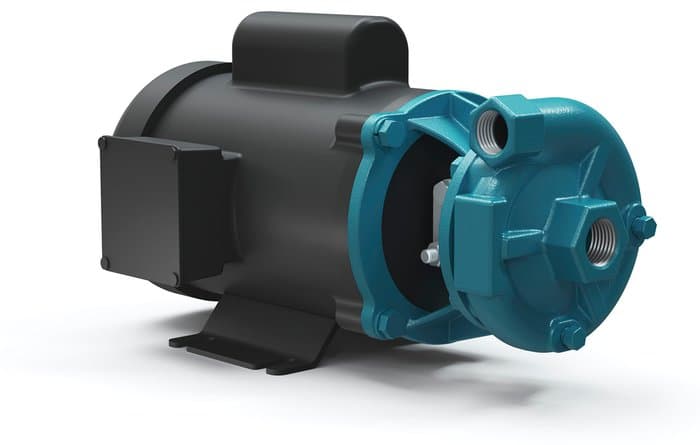

Series 30 | End Suction Centrifugal Pump and Motor Unit | MP22731
Series 30 | End Suction Centrifugal Pump and Motor Unit | MP22731
Art. No.: mp_mp22731
Art. No.: mp_mp22731
Key Features:
Pump Body: Cast Iron
Port Size: Inlet Port is 1 inch, Discharge Port is 3/4 inch
Motor Specifications: 3/4 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)
Suction and Discharge: 1" x 3/4" NPT
Material: Cast Iron
Maximum Flow: 45 GPM
Maximum Head: 40'
Maximum Solid: 0.27"
Lead times temporarily extended to 16 weeks.
$1,218.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The MP 22731 is a durable and efficient pump and motor unit, designed for a variety of industrial applications. This unit features a 3/4 horsepower motor, operating at 230/460 volts with three-phase TEFC (Totally Enclosed Fan Cooled) technology. The Series 30 end suction centrifugal pumps are precisely close-coupled to standard NEMA "C" face motors, ensuring optimal performance and reliability.
Versatile Construction Options Available in cast iron, bronze, or aluminum, the MP 22731 pump is engineered to endure diverse environments. Stainless steel fasteners are used throughout to minimize corrosion and extend the lifespan of the pump.
Applications Perfect for agricultural, commercial, industrial, and OEM sectors, these end suction centrifugal pumps deliver dependable performance across a wide range of liquid handling tasks.
Enhanced Efficiency and Durability The dynamically balanced impellers enhance efficiency and prolong bearing life. The standard carbon/ceramic/Viton mechanical seal is self-adjusting and corrosion-resistant, capable of handling a diverse array of liquids.
Convenient Installation The MP PumPAK units are thoroughly tested and available without motors, allowing for quick and easy mounting to standard NEMA C frame motors in just minutes.
