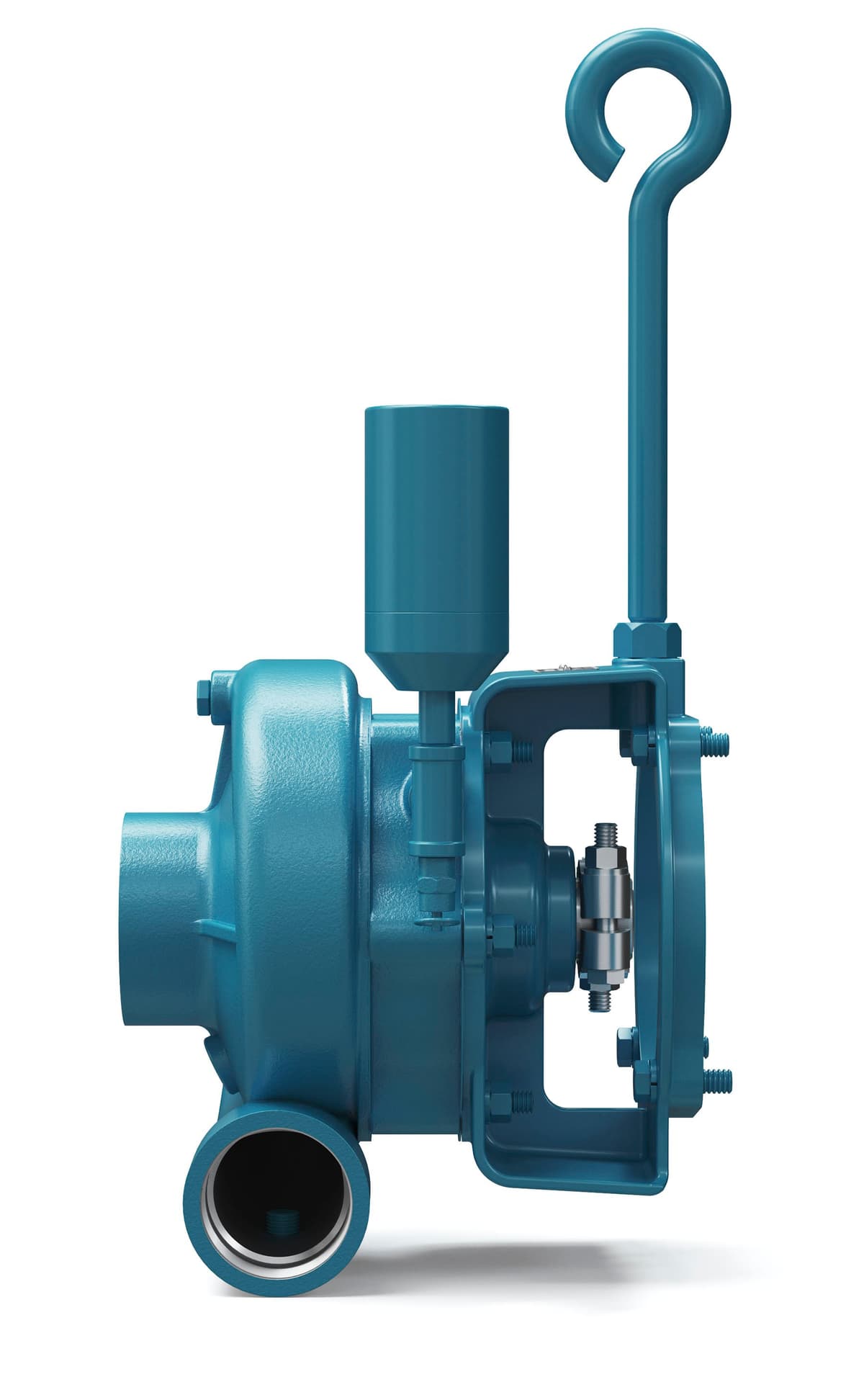

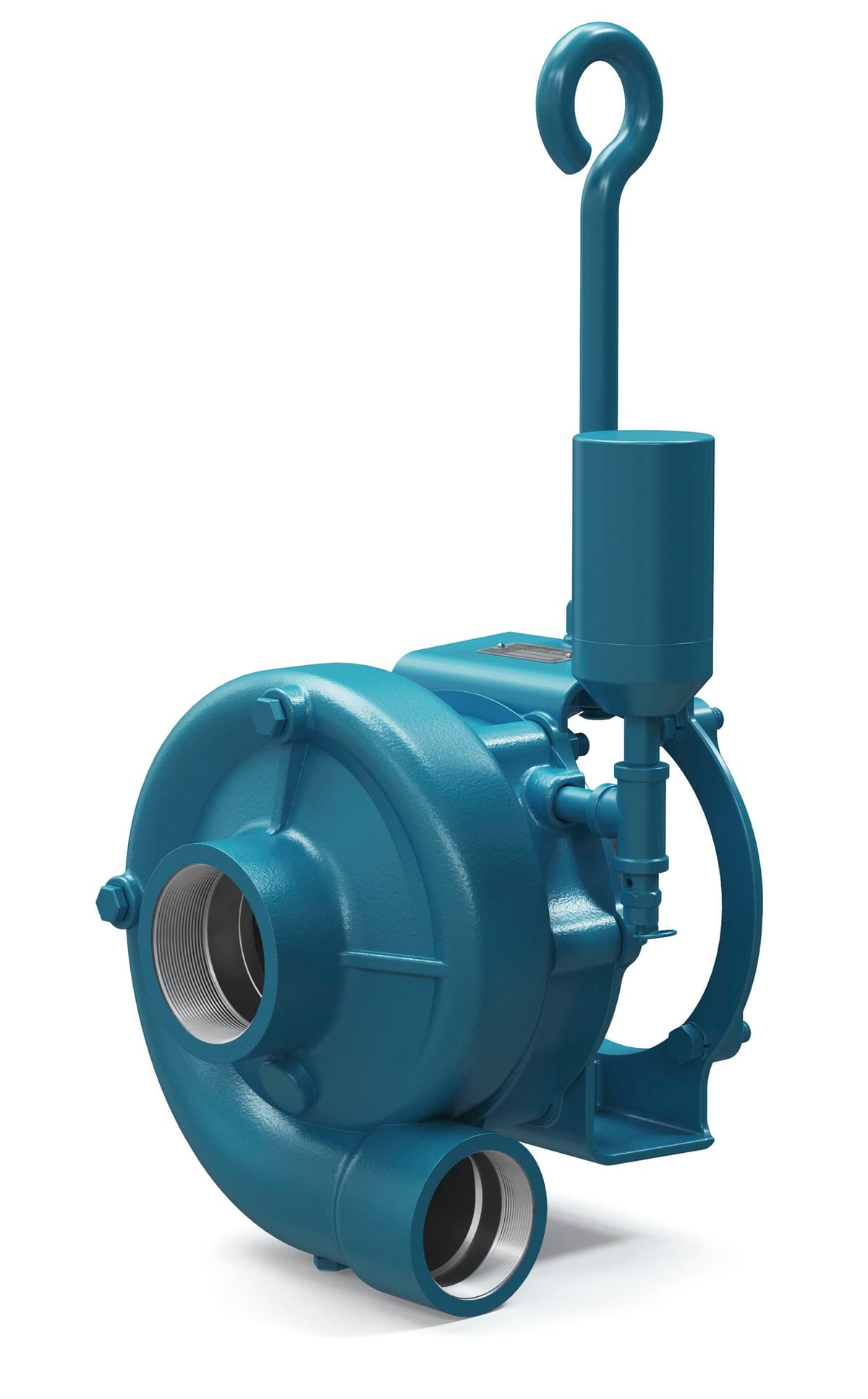

Series 200 |End Suction Centrifugal Pump and Motor Unit | MP22737
Series 200 |End Suction Centrifugal Pump and Motor Unit | MP22737
Art. No.: mp_mp22737
Art. No.: mp_mp22737
Specifications:
Pump Body: Cast Iron
Motor Specs: 5 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)
Suction and Discharge: 2-1/2" x 2" NPT
Material: Cast Iron
Maximum Flow: 300 GPM
Maximum Head: 115'
Maximum Solid: 0.6"
Lead times temporarily extended to 16 weeks.
$3,547.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The MP 22737 is a robust and reliable pump and motor unit, featuring a 5 horsepower, 230/460 volts, three-phase TEFC (Totally Enclosed Fan Cooled) motor. Designed for industrial applications, this Series 200 end suction centrifugal pump is closely coupled to standard NEMA "C" face motors, ensuring seamless integration and performance.
Versatile Construction: Available in cast iron, bronze, or aluminum, the MP 22737 pump is built to withstand demanding environments. Stainless steel fasteners are used throughout to minimize corrosion and extend the lifespan of the pump.
Wide Range of Applications: Ideal for agricultural, commercial, industrial, and OEM industries, these end suction centrifugal pumps are engineered for versatility and durability.
Enhanced Efficiency: Dynamically balanced impellers improve efficiency and prolong bearing life. The standard carbon/ceramic/Viton mechanical seal is self-adjusting and resistant to corrosion, making it suitable for handling a variety of liquids.
Easy Installation: Completely tested "Wet End" PumPAKs are available without motors, allowing for quick and easy mounting to standard NEMA C frame motors in just minutes.
