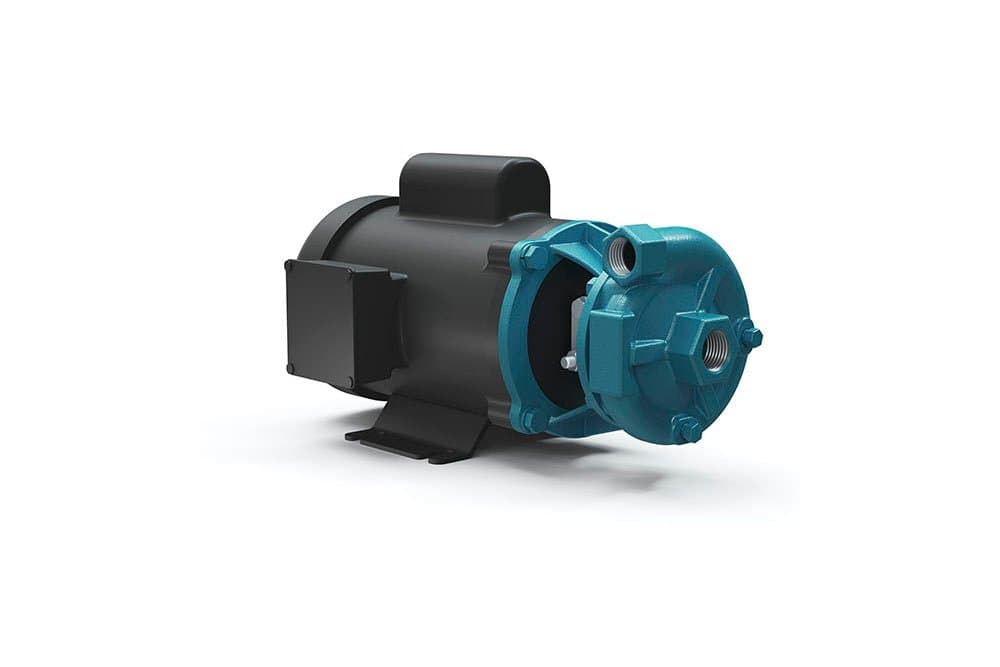

Series 30 | End Suction Centrifugal Pump and Motor Unit | MP22746
Series 30 | End Suction Centrifugal Pump and Motor Unit | MP22746
Art. No.: mp_mp22746
Art. No.: mp_mp22746
Key Features:
Pump Body: Cast Iron
Impeller: Ductile Iron, 2.5-inch Diameter
Port Size: 1-inch Inlet, 3/4-inch Discharge
Motor Specifications: 1/3 Horsepower, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled)
Suction and Discharge: 1" x 3/4" NPT
Material: Cast Iron
Maximum Flow: 45 GPM
Maximum Head: 40 feet
Maximum Solid Handling: 0.27 inches
Lead times temporarily extended to 16 weeks.
$1,767.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The MP 22746 is a robust Cast Iron Series 30 End Suction Centrifugal Pump and Motor unit, featuring a durable Ductile Iron Impeller with a 2.5-inch diameter. It is designed with 1-inch inlet and 3/4-inch discharge ports, and is closely coupled to a 1/3 horsepower, 115/230 volts, single-phase, TEFC (Totally Enclosed Fan Cooled) motor. These Series 30 pumps are engineered to be paired with standard NEMA "C" face motors, making them versatile for various applications.
This industrial-grade liquid pump is available in cast iron, bronze, or aluminum, ensuring suitability for a wide range of environments. All fasteners are made of stainless steel to enhance the pump's longevity by minimizing corrosion. The MP 22746 is ideal for use in agricultural, commercial, industrial, and OEM settings.
The impellers are dynamically balanced to optimize efficiency and extend bearing life. The standard carbon/ceramic/Viton mechanical seal is self-adjusting and resistant to corrosion, capable of handling a variety of liquids. Additionally, fully tested "Wet End" PumPAKs are available without motors, and the MP PumPAK can be easily mounted to standard NEMA C frame motors in just minutes.
