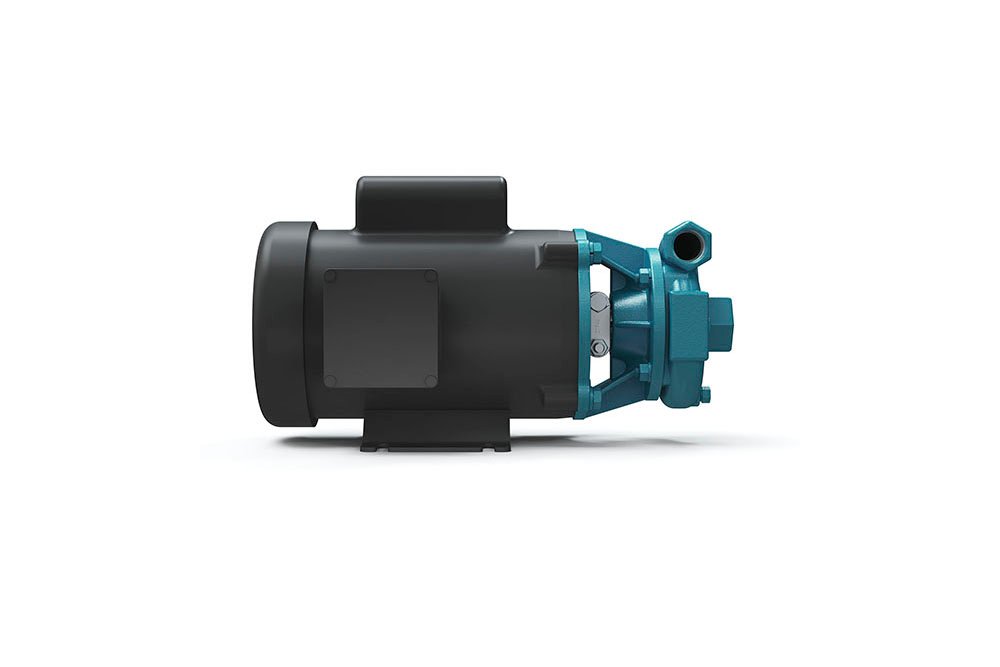

Series 30 | End Suction Centrifugal Pump and Motor Unit | MP24189
Series 30 | End Suction Centrifugal Pump and Motor Unit | MP24189
Art. No.: mp_mp24189
Art. No.: mp_mp24189
Key Features:
- Pump Body: Durable cast iron construction
- Port Size: Inlet port of 1 inch and discharge port of 3/4 inch
- Motor Specifications: 1/2 horsepower, 115/230 volts, single-phase, TEFC motor
- Suction and Discharge: 1" x 3/4" NPT
- Material Options: Available in cast iron, bronze, or aluminum
- Maximum Flow: 45 GPM
- Maximum Head: 40 feet
- Maximum Solid Handling: 0.27 inches
Lead times temporarily extended to 20 weeks.
$1,146.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at Checkout.The MP 24189 is a robust and efficient end suction centrifugal pump, designed for a variety of industrial applications. This unit features a cast iron pump body and is equipped with a 1/2 horsepower, single-phase TEFC (Totally Enclosed Fan Cooled) motor, operating at 115/230 volts. The pump is close coupled to standard NEMA "C" face motors, ensuring compatibility and ease of installation.
Advantages:
Advantages:
- Corrosion Resistance: All fasteners are made of stainless steel to minimize corrosion and extend the pump's lifespan.
- Efficiency: Dynamically balanced impellers enhance efficiency and prolong bearing life.
- Versatility: Suitable for agricultural, commercial, industrial, and OEM applications.
- Reliable Sealing: Features a self-adjusting, corrosion-resistant carbon/ceramic/Viton mechanical seal, capable of handling a wide range of liquids.
- Easy Installation: The MP PumPAK can be quickly mounted to standard NEMA C frame motors, with fully tested "Wet End" PumPAKs available without motors.
