Flomax 15 PumPAK | Self Priming Centrifugal Pump | MP24834

Art. No.: mp_mp24834

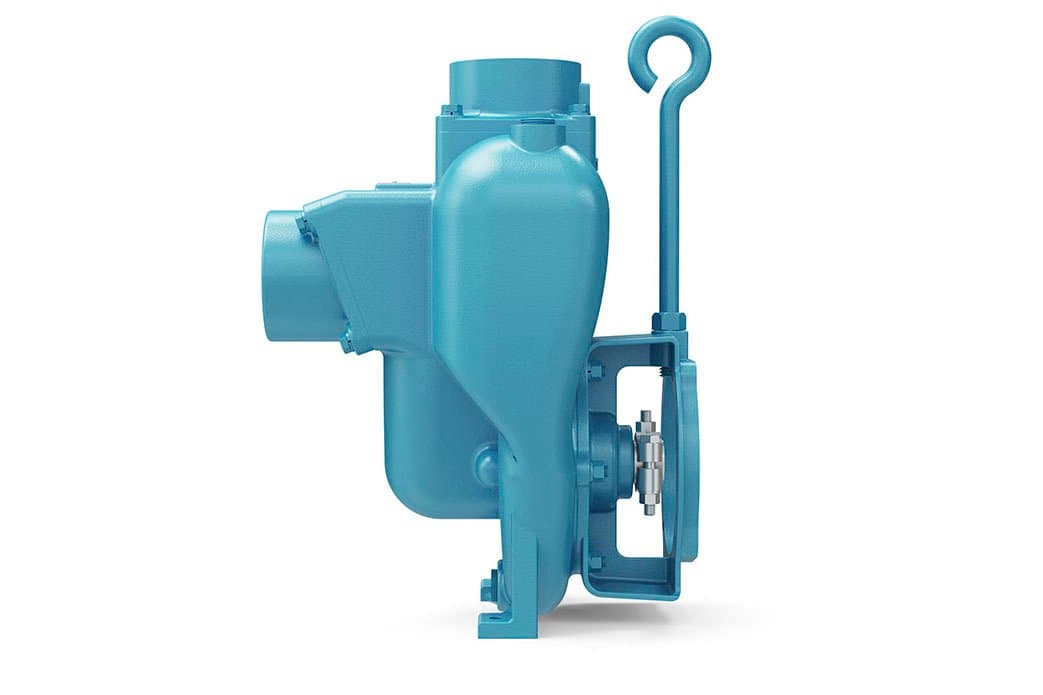

product image MP Pumps Flomax 15 FM15 Wet End only

Art. No.: mp_mp24834

Key Features:

Pump Body: Durable cast iron construction
Impeller: 6.0-inch diameter for efficient fluid movement
Port Size: 3-inch inlet and discharge NPT ports
Maximum Flow: Capable of handling up to 320 GPM
Maximum Head: Reaches up to 145 feet
Max Solid Handling: Up to 0.625 inches
Suction Lift: Up to 25 feet

Lead times temporarily extended to 16 weeks.

$1,673.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at Checkout.

The MP 24834 is a high-performance, cast iron self-priming centrifugal pump from the Flomax 15 series. Designed for mounting on a motor, this pump features a 6.0-inch diameter impeller and 3-inch by 3-inch NPT ports. This model is a replacement pump end only, without a motor, and is compatible with hydraulic motors, 184TC/215TC frame motors, and gas engines.

PumPAK Information: The FLOMAX 15 PumPAK is a fully assembled and run-tested pump end that can be easily coupled to various drivers, including hydraulic motors, 184TC and 215C frame motors, and gas engines . A bearing pedestal is also available for T-frame motors or belt drives 1. This ensures reliable performance and easy integration into different systems.

The FLOMAX 15 series pumps are versatile and commonly used in various applications, including industrial, OEM, agricultural, and marine settings. They are ideal for bilge pumps, auxiliary fire pumps, ballast transfer pumps, washdown pumps, fertilizer and pesticide pumps, applicators and sprayers, blending pumps, nurse tanks, bulk transfer pumps, and more.

Additional Benefits:

Flapper Valve: Ensures a full column of liquid is maintained in the suction line
Bearing Pedestal: Available for T-frame motors or belt drives
Stainless Steel Components: Includes a drive sleeve and fasteners for enhanced durability
Renewable Wear Plate: Extends the pump's lifespan
Semi-Open Dynamically Balanced Impeller: Provides smooth and efficient operation

Recommended Parts

Repail Kit FM 10/15 1.5" Viton T-21 CSS for Flomax 10 and 15 | MP51485

Repair Kit FM 10/15 ID: 1.13" Impeller D 6.0 for Flomax 10 and 15 | MP51489

Recommended Parts

Repail Kit FM 10/15 1.5" Viton T-21 CSS for Flomax 10 and 15 | MP51485

Repair Kit FM 10/15 ID: 1.13" Impeller D 6.0 for Flomax 10 and 15 | MP51489
