Series 300 | End Suction Centrifugal Pump | MP27005
Series 300 | End Suction Centrifugal Pump | MP27005
Art. No.: mp_mp27005
Art. No.: mp_mp27005
Inlet Size: 3 inches
Outlet Size: 2.5 inches
Maximum Flow: 520 GPM
Motor: 20 HP
Materials of Construction: Cast iron
Maximum Head: 190 feet
Lead times temporarily extended to 16 weeks.
$3,677.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

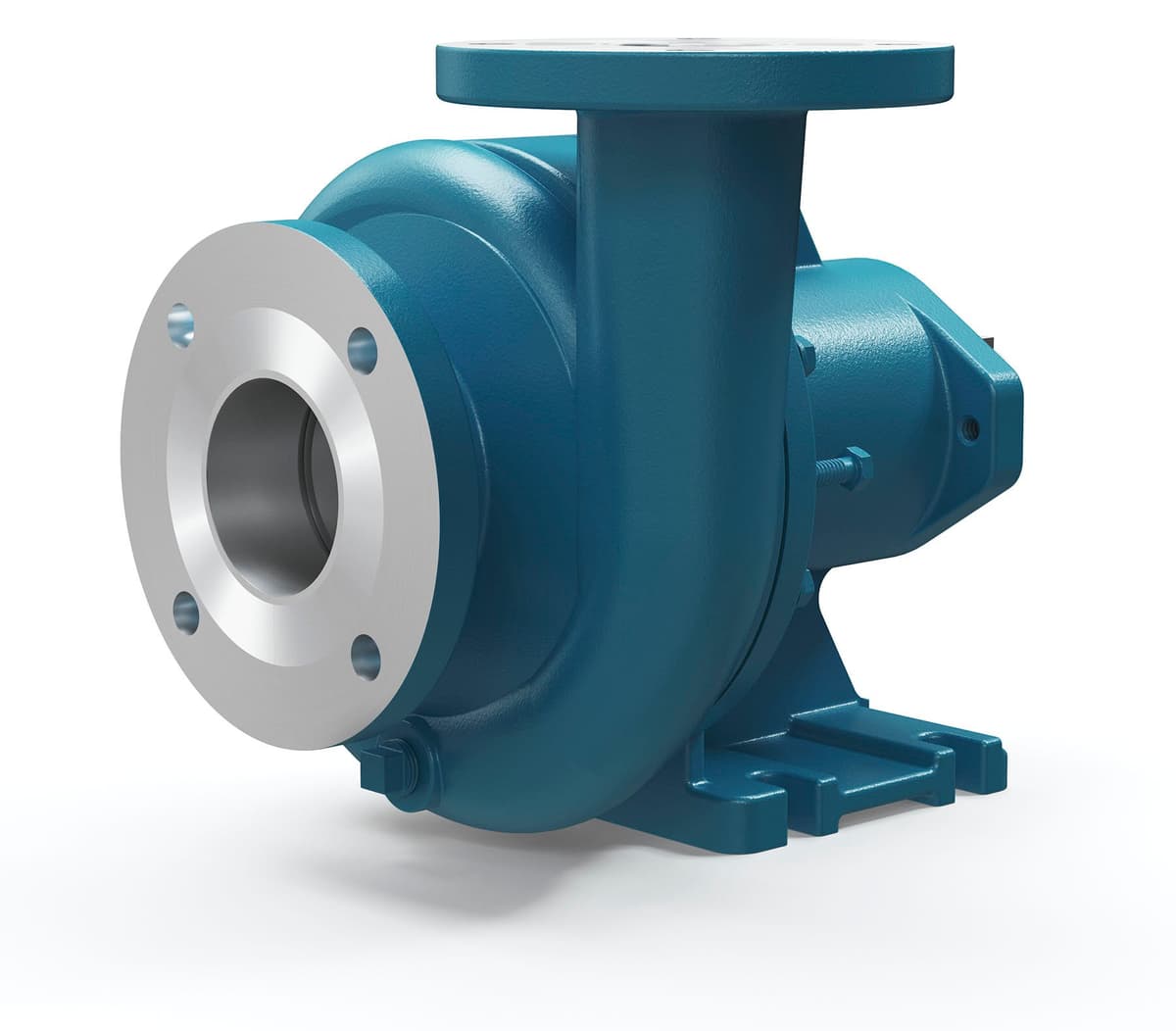

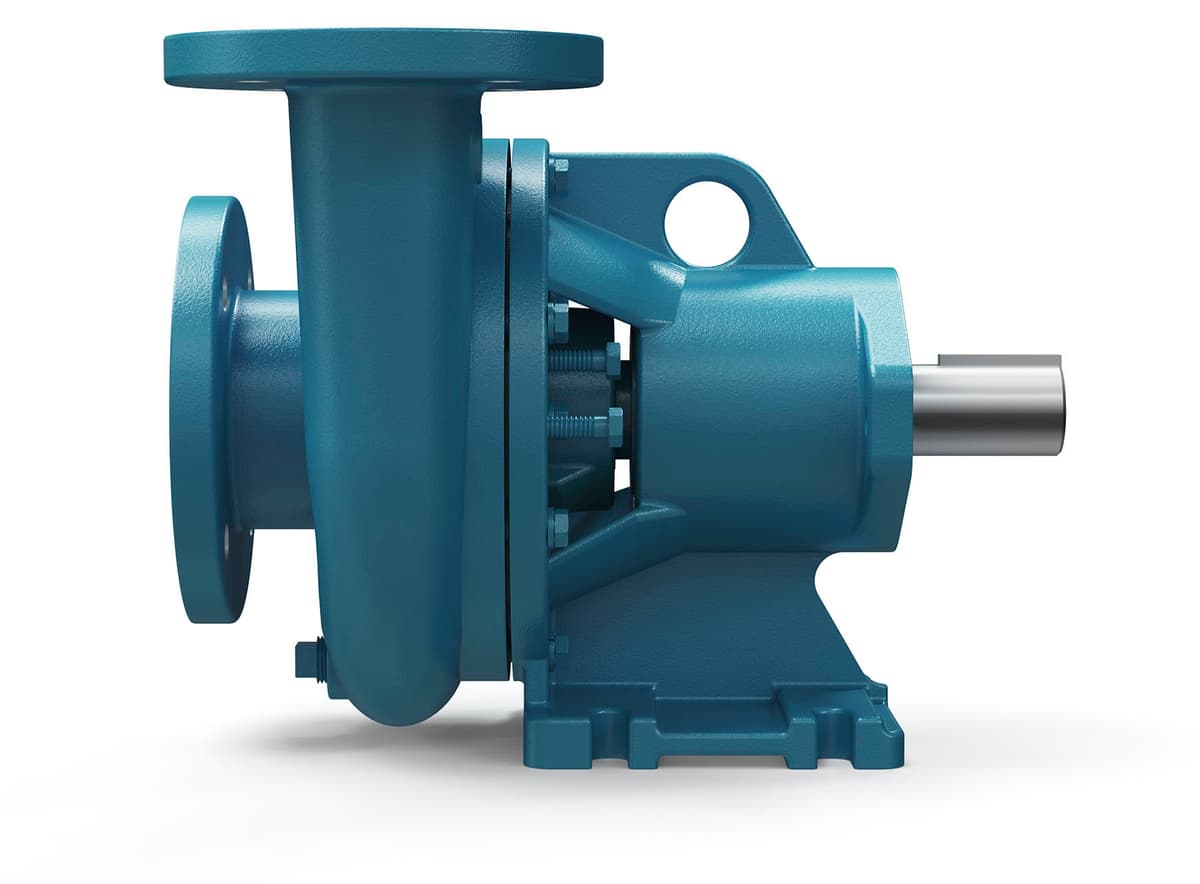

The MP27005 from the Series 300 is a robust centrifugal pump engineered for efficient fluid transfer across a range of industrial applications. Built with a durable cast iron body, it features 3-inch NPT x 2.5-inch 150# ANSI flanges on both the suction and discharge ports, ensuring easy integration into existing systems.
This pump is equipped with a 7.0-inch diameter impeller, delivering a maximum flow rate of 520 gallons per minute (GPM) and a total head of up to 190 feet. Designed for close coupling with standard NEMA "C" face motors, it offers seamless compatibility and straightforward installation.
The MP27005 is ideal for use in agricultural, commercial, industrial, and OEM sectors, providing reliable performance and durability.
