Series 60 | End Suction Centrifugal Pump and Motor Unit | MP27669
Series 60 | End Suction Centrifugal Pump and Motor Unit | MP27669
Art. No.: mp_mp27669
Art. No.: mp_mp27669
Key Features:
Pump Body: Durable cast iron construction
Impeller: High-quality bronze for enhanced durability
Motor Specifications: 2 horsepower, 230/460 volts, three-phase, TEFC
Suction and Discharge: 1-1/4" x 1" NPT
Material Options: Available in cast iron, bronze, or aluminum
Maximum Flow: 65 GPM
Maximum Head: 112 feet
Maximum Solid Handling: 0.11 inches
Lead times temporarily extended to 16 weeks.
$1,876.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

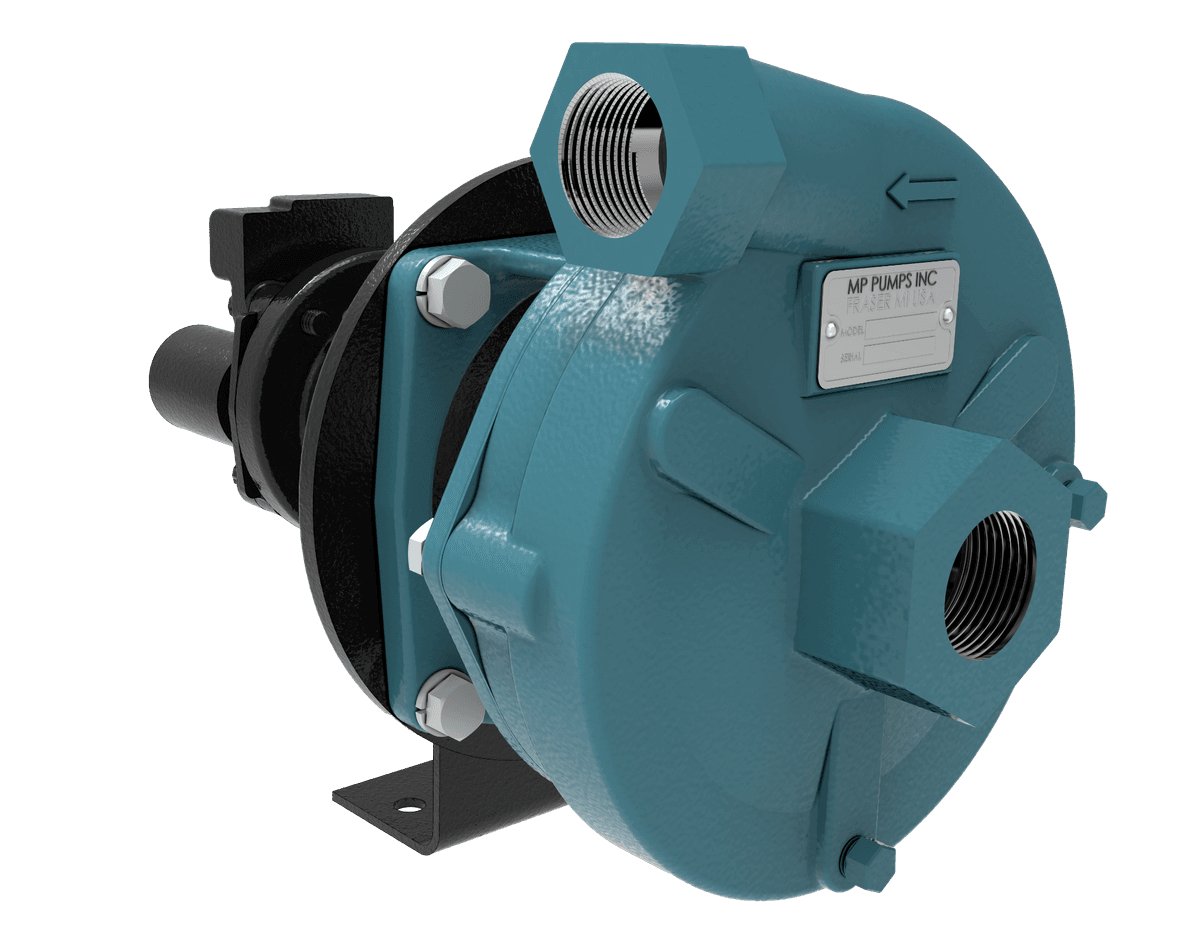

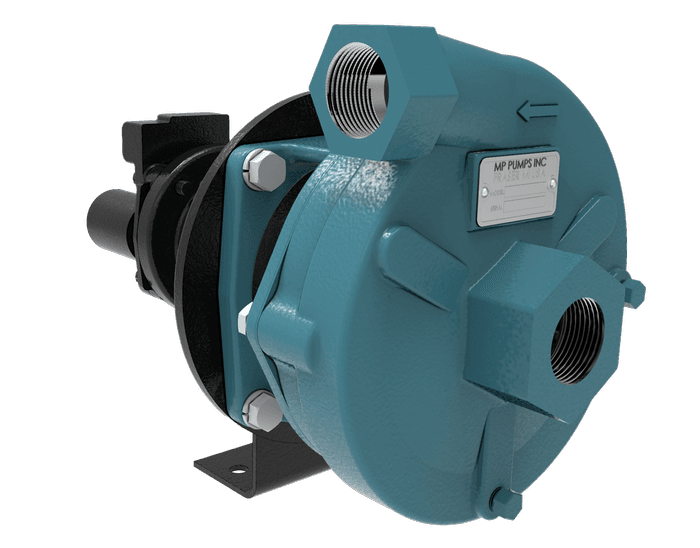

The MP 27669 is a robust and efficient pump and motor unit designed for a variety of industrial applications. Featuring a cast iron body and a bronze impeller, this unit is powered by a 2 horsepower, 230/460 volts, three-phase TEFC (Totally Enclosed Fan Cooled) motor. The Series 60 end suction centrifugal pumps are closely coupled to standard NEMA "C" face motors, ensuring reliable performance.
Additional Benefits:
Corrosion Resistance: All fasteners are made of stainless steel to minimize corrosion and extend the life of the pump.
Efficiency and Longevity: Dynamically balanced impellers improve efficiency and bearing life.
Versatile Sealing: The standard carbon/ceramic/Viton mechanical seal is self-adjusting and resistant to corrosion, suitable for handling a wide range of liquids.
Easy Installation: The MP PumPAK can be quickly mounted to standard NEMA C frame motors, with fully tested "Wet End" PumPAKs available without motors.
Ideal for agricultural, commercial, industrial, and OEM applications, the MP 27669 pump and motor unit offers reliable performance and easy maintenance.
