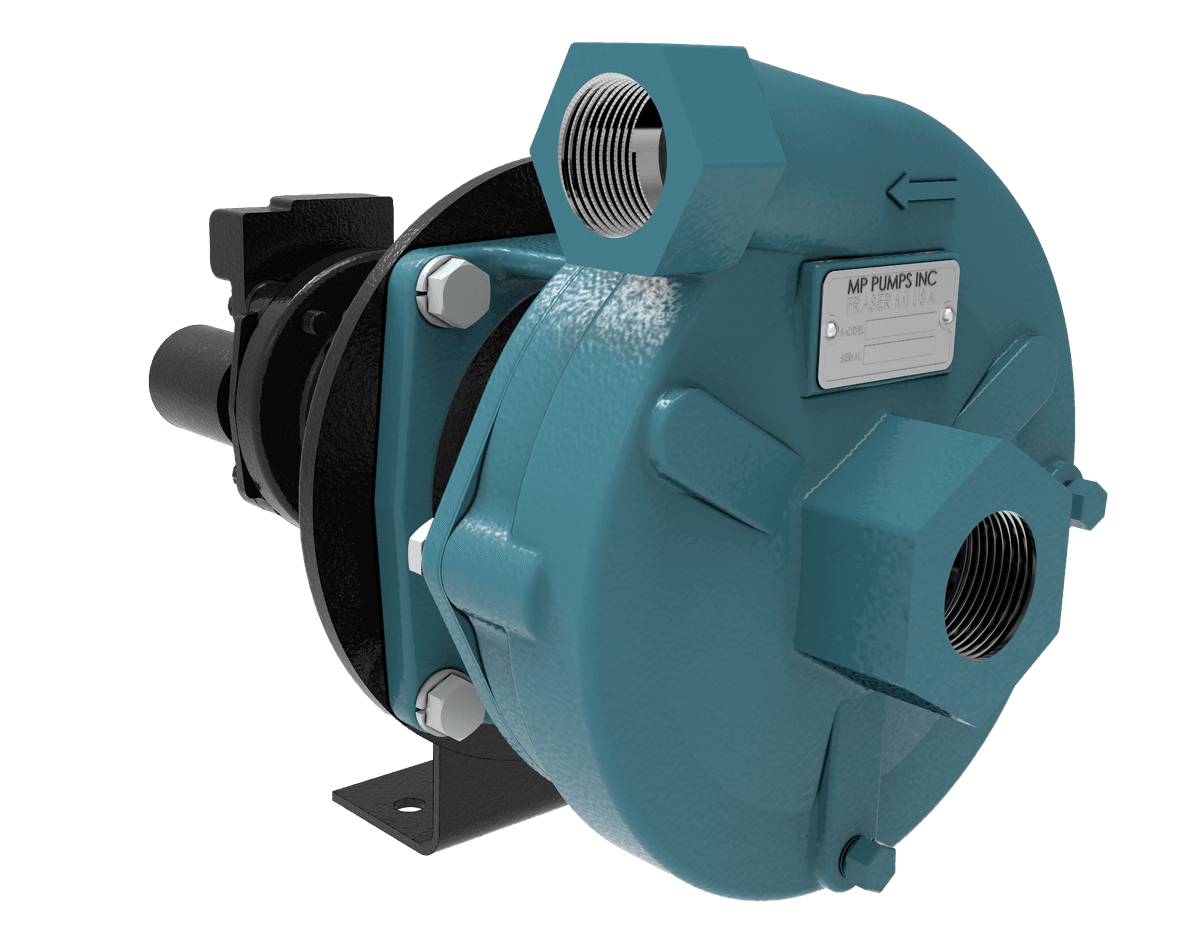

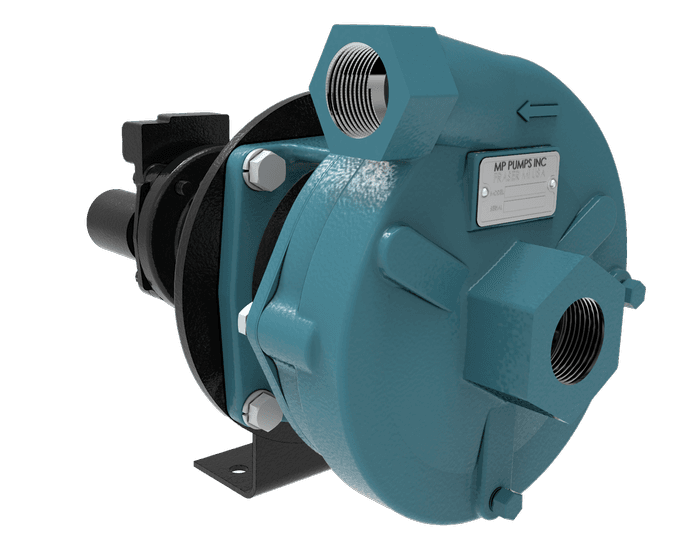

Series 60 | End Suction Centrifugal Pump and Motor Unit | MP27672
Series 60 | End Suction Centrifugal Pump and Motor Unit | MP27672
Art. No.: mp_mp27672
Art. No.: mp_mp27672
Key Features:
Pump Body: Cast Iron
Impeller: Bronze
Motor Specifications: 1-1/2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)
Suction and Discharge: 1-1/4" x 1" NPT
Material: Cast Iron
Maximum Flow: 65 GPM
Maximum Head: 112'
Maximum Solid Handling: 0.11"
Lead times temporarily extended to 16 weeks.
$2,306.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The MP 27672 is a robust and reliable pump and motor unit designed for various industrial applications. Featuring a cast iron pump body and a bronze impeller, this unit is coupled with a powerful 1-1/2 horsepower, 230/460 volts, three-phase TEFC (Totally Enclosed Fan Cooled) motor. The Series 60 end suction centrifugal pumps are closely coupled to standard NEMA "C" face motors, ensuring seamless integration and performance.
This industrial liquid pump is available in cast iron, bronze, or aluminum, with all fasteners made of stainless steel to enhance durability and reduce corrosion. The dynamically balanced impellers improve efficiency and extend bearing life. The standard carbon/ceramic/Viton mechanical seal is self-adjusting and corrosion-resistant, capable of handling a wide range of liquids.
Ideal for agricultural, commercial, industrial, and OEM applications, the MP 27672 ensures reliable performance and longevity. Additionally, completely tested "Wet End" PumPAKs are available without motors, and the MP PumPAK can be mounted to standard NEMA C frame motors in just minutes.
