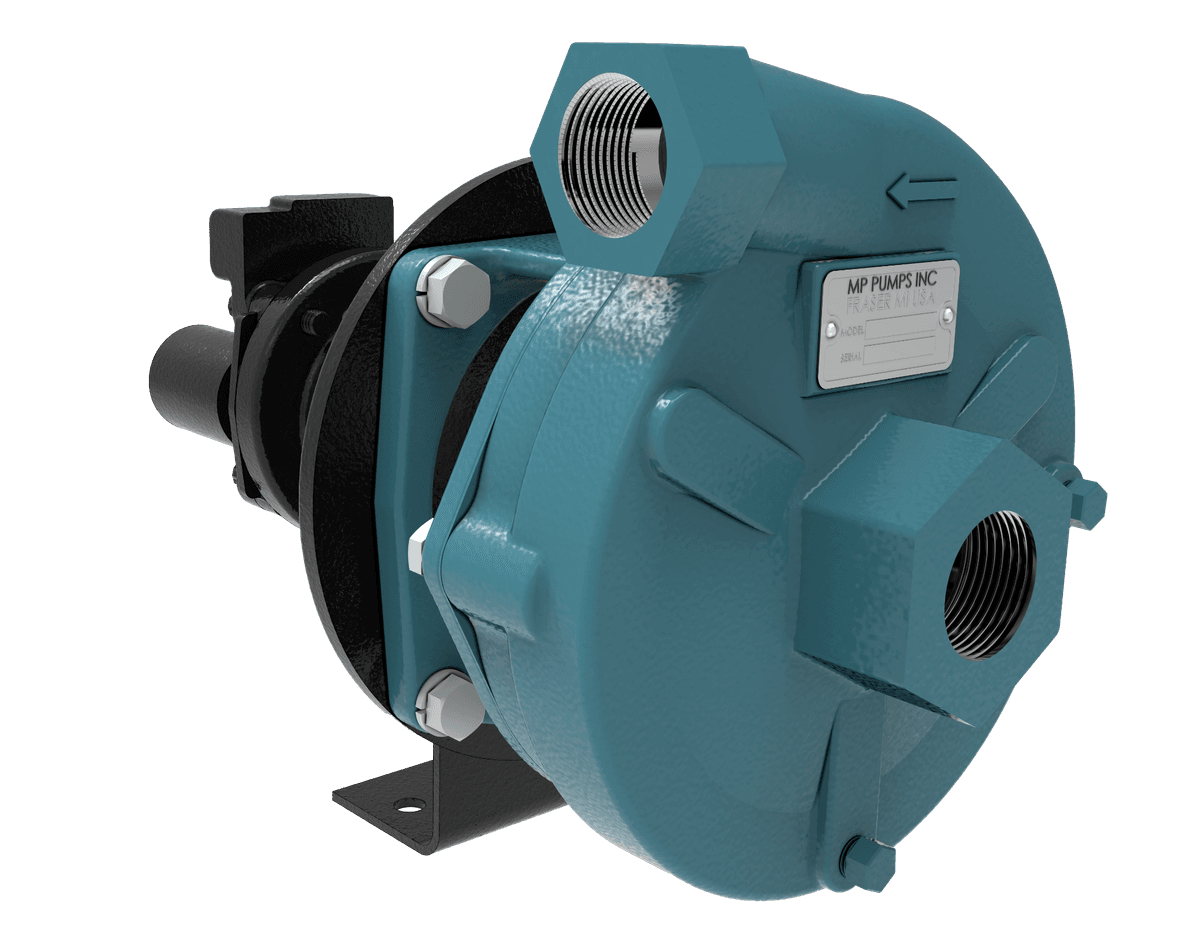

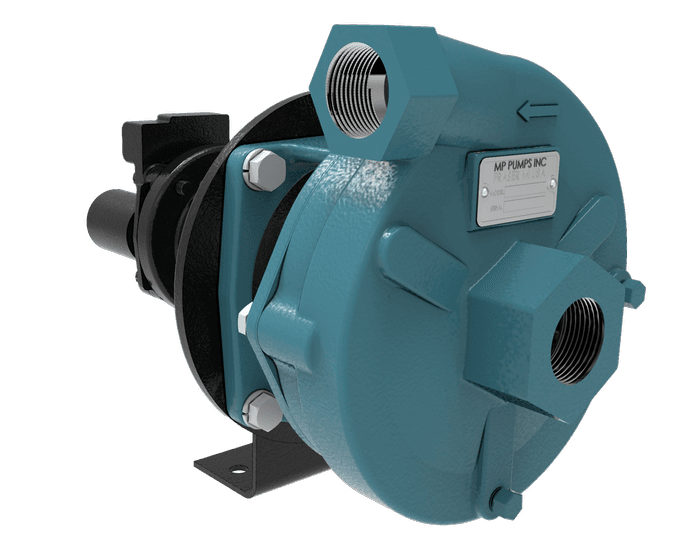

Series 60 | End Suction Centrifugal Pump and Motor Unit | MP27675
Series 60 | End Suction Centrifugal Pump and Motor Unit | MP27675
Art. No.: mp_mp27675
Art. No.: mp_mp27675
Key Features:
Pump Body: Cast Iron
Impeller: Bronze, 4.5-inch Diameter
Motor Specifications: 1 Horsepower, 230/460 Volts, Three Phase, TEFC
Suction and Discharge: 1-1/4" x 1" NPT
Material: Cast Iron
Maximum Flow: 65 GPM
Maximum Head: 112'
Maximum Solid Handling: 0.11"
Lead times temporarily extended to 16 weeks.
$2,031.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The MP 27675 is a robust and reliable pump and motor unit designed for various industrial applications. Featuring a cast iron pump body and a bronze impeller with a 4.5-inch diameter, this unit is built to last. It is powered by a 1 horsepower, 230/460 volts, three-phase TEFC (Totally Enclosed Fan Cooled) motor, ensuring efficient and consistent performance.
The Series 60 end suction centrifugal pumps are close-coupled to standard NEMA "C" face motors, making them versatile for agricultural, commercial, industrial, and OEM applications. All fasteners are made of stainless steel to minimize corrosion and extend the pump's lifespan. The dynamically balanced impellers enhance efficiency and bearing life, while the standard carbon/ceramic/Viton mechanical seal is self-adjusting and corrosion-resistant, capable of handling a wide range of liquids.
Additionally, completely tested "Wet End" PumPAKs are available without motors, and the MP PumPAK can be mounted to standard NEMA C frame motors in just minutes, offering convenience and flexibility in installation.
