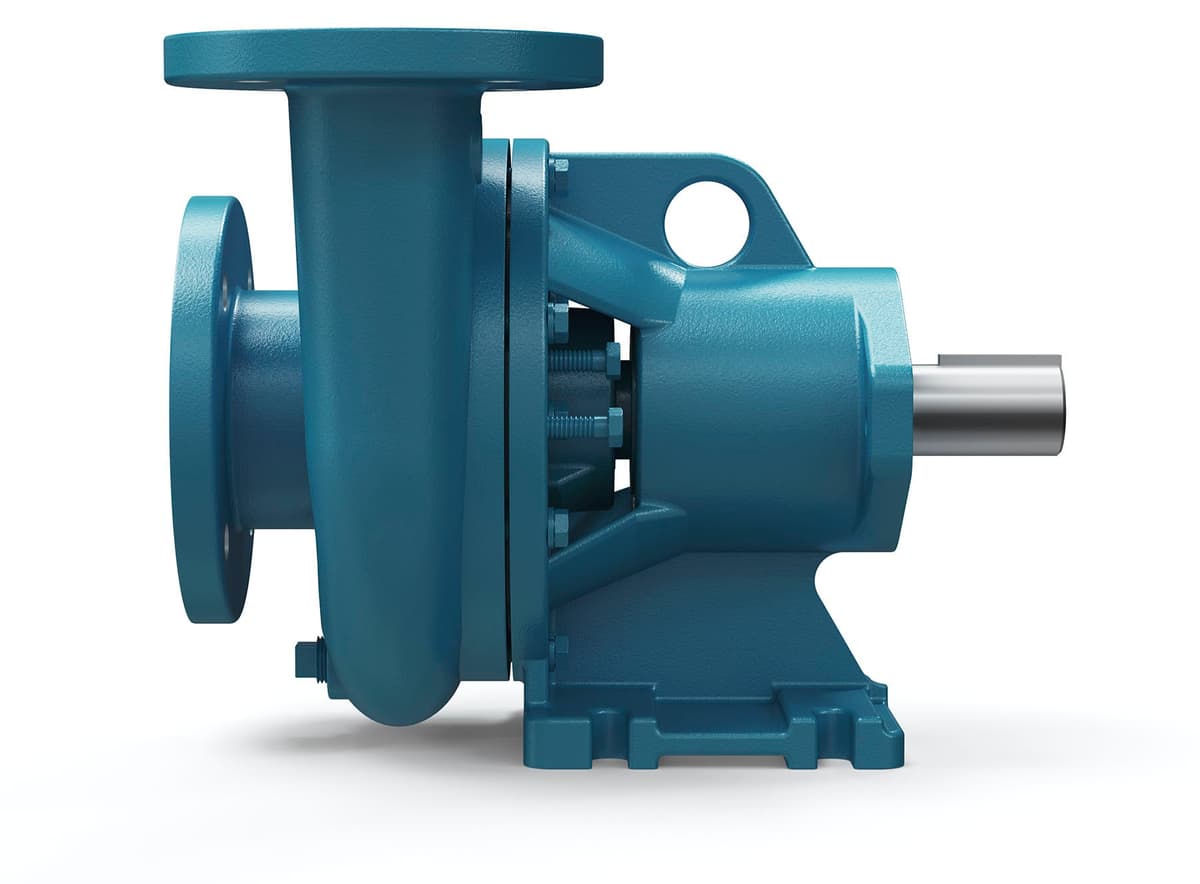

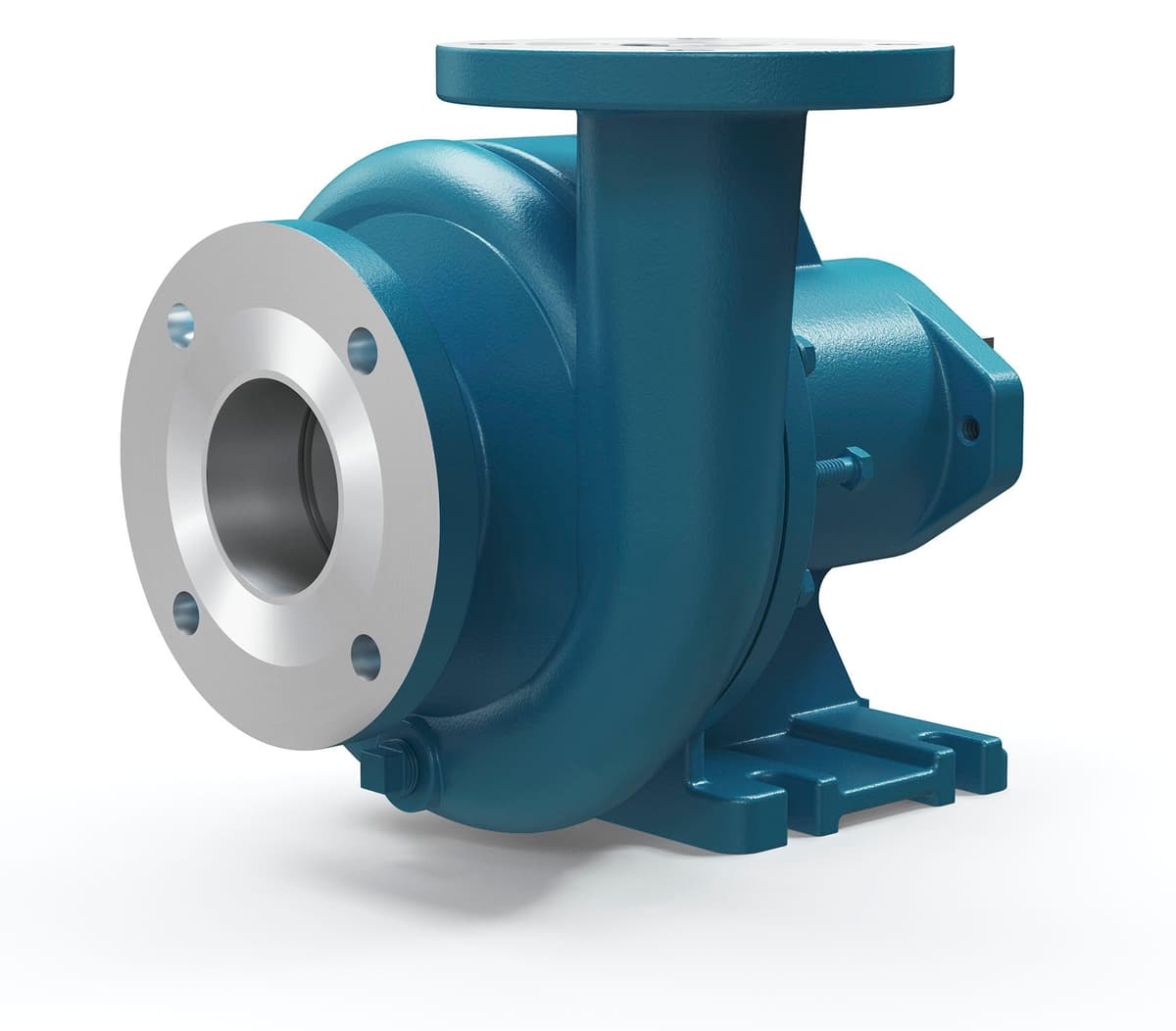

Series 300 | End Suction Centrifugal Pump | MP27708

Art. No.: mp_mp27708

Key Features:

Construction: Made from durable cast iron, bronze, or aluminum, with stainless steel fasteners to enhance longevity and minimize corrosion.
Impeller: 6.38" impeller for optimal performance.
Mounting: Foot mount design (no motor included) for easy installation.
Discharge: Vertical discharge for efficient fluid handling.
Flanges: 3" x 2.50" 150# ANSI flanges for secure connections.
Solid Handling: Capable of handling solids up to .53".
Flow Rate: Maximum flow rate of 520 GPM.
Head: Maximum head of 190 feet.
Motor Compatibility: Suitable for 20 HP motors.
Inlet/Outlet Sizes: Inlet size of 3 inches and outlet size of 2-1/2 inches.

Lead times temporarily extended to 20 weeks.

$3,966.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at Checkout.

Request a Quote

The MP Pumps Series 300 end suction centrifugal pump is engineered for reliability and efficiency in various applications, including agricultural, commercial, industrial, and OEM sectors. Designed to be closely coupled with standard NEMA "C" face motors, this pump is available in cast iron, bronze, or aluminum to suit different needs.

Recommended Parts

Seal Assembly (1.75") | Replacement Parts for Flomax and Series Pumps | MP26685

Kingersil C-4433 Replacement Gasket for Series 300 and 450 | MP26744

Replacement Gasket for Series 300, 700 and Flomax 40 | MP27403

Replacement Gasket 2.0 X 1.25 X 0.06 SHSL RULON-LD for Series 300, 700 and Flomax 40 | MP27404
