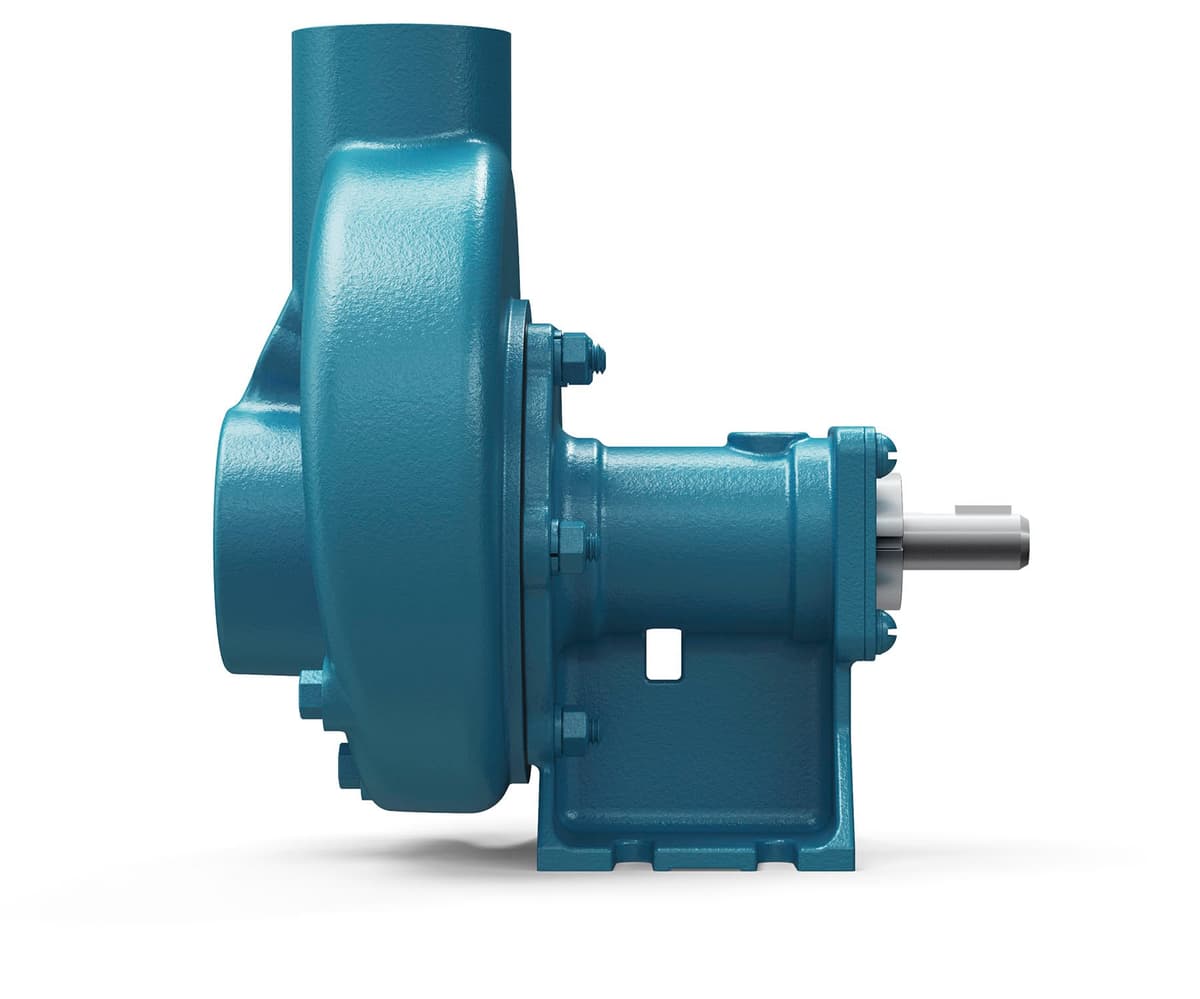

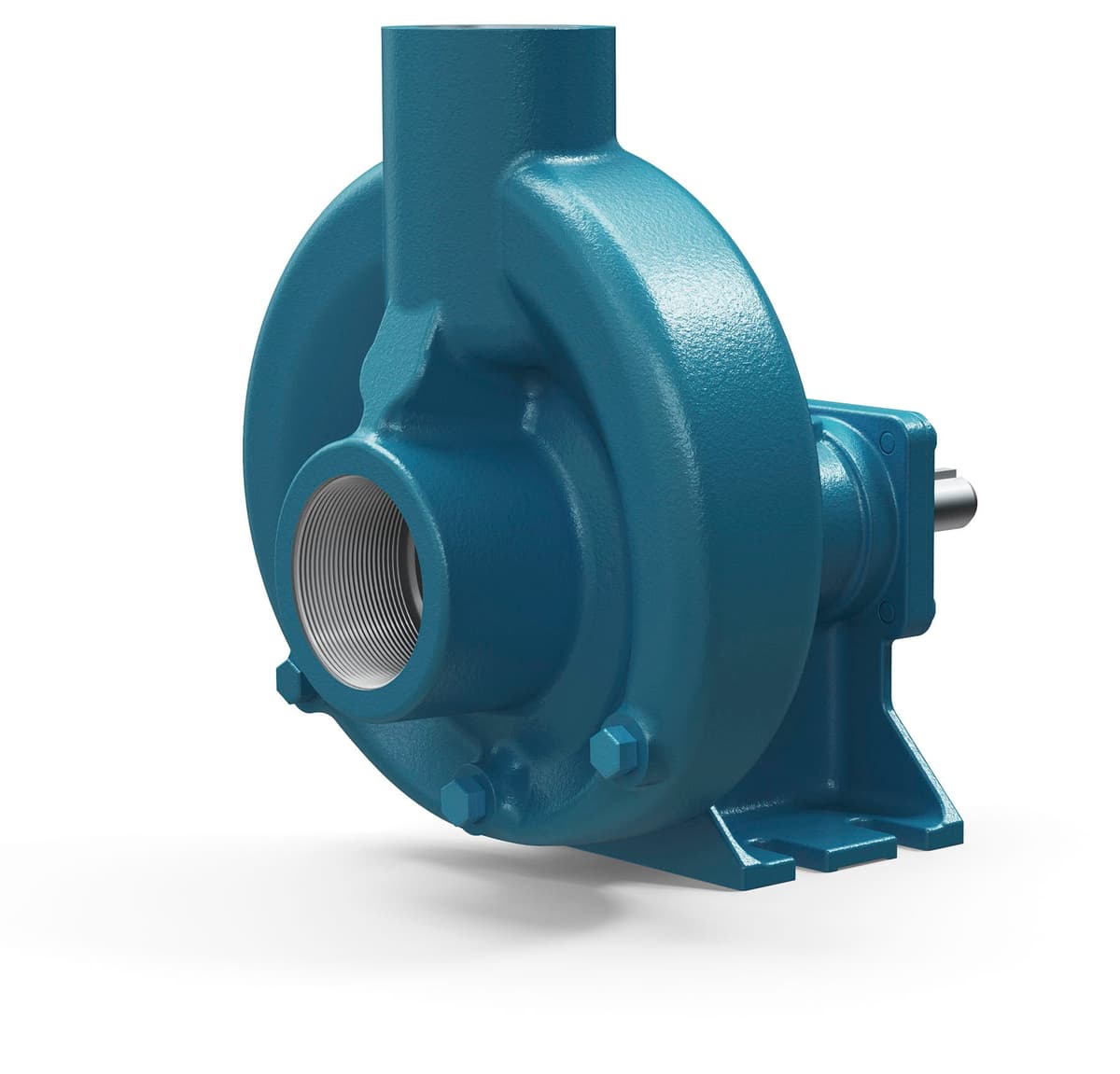

Series 130 | End Suction Centrifugal Pump and Motor Unit | MP27756
Series 130 | End Suction Centrifugal Pump and Motor Unit | MP27756
Art. No.: mp_mp27756
Art. No.: mp_mp27756
Specifications:
Pump Body: Cast Iron
Motor Specs: 2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)
Suction and Discharge: 2" x 1-1/2" NPT
Material: Cast Iron
Maximum Flow: 160 GPM
Maximum Head: 60'
Maximum Solid: 0.53"
Lead times temporarily extended to 16 weeks.
$1,661.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The MP 27756 is a robust pump and motor assembly designed for industrial applications. It features a 2 horsepower, 230/460 volts, three-phase motor with a TEFC (Totally Enclosed Fan Cooled) design. The Series 130 end suction centrifugal pumps are closely coupled to standard NEMA "C" face motors, ensuring reliable performance.
This versatile liquid pump is available in cast iron, bronze, or aluminum, catering to various needs. All fasteners are made of stainless steel to enhance durability and minimize corrosion. The pump is suitable for agricultural, commercial, industrial, and OEM applications.
Key features include dynamically balanced impellers for improved efficiency and extended bearing life. The standard carbon/ceramic/Viton mechanical seal is self-adjusting and resistant to corrosion, making it capable of handling a wide range of liquids. Additionally, fully tested "Wet End" PumPAKs are available without motors, and the MP PumPAK can be easily mounted to standard NEMA C frame motors within minutes.
