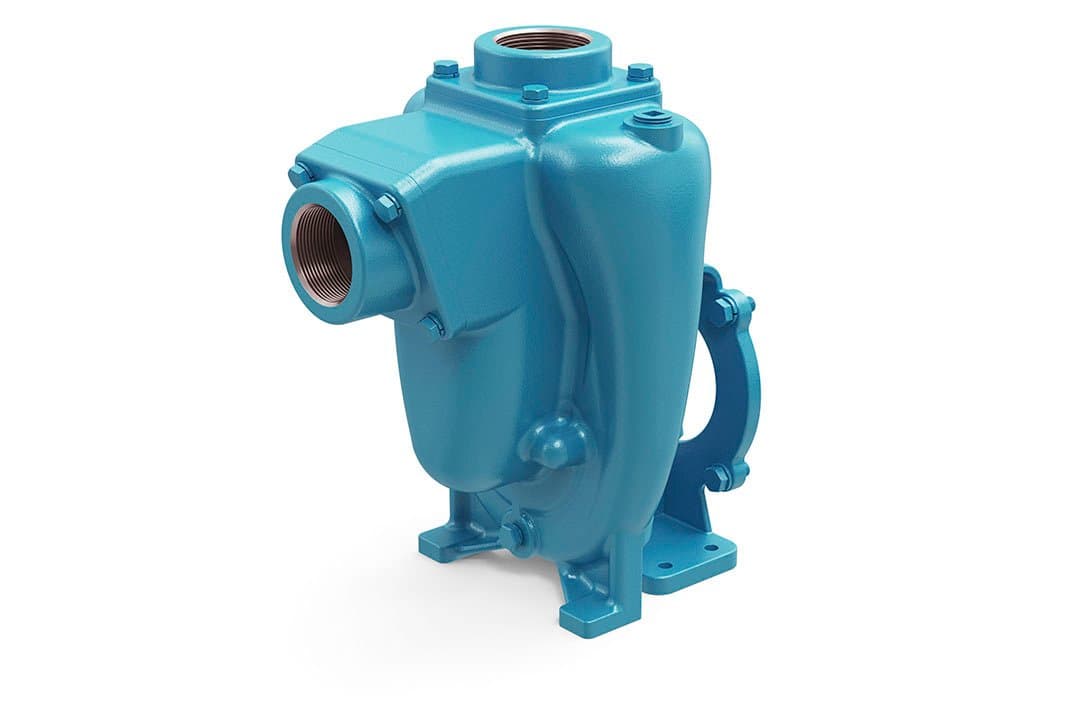

The MP 28181 is a robust and efficient self-priming centrifugal pump from the Flomax 8 series, designed for mounting on a motor. This pump end comes equipped with a foot adapter for footless motors and features a 4.62-inch diameter impeller. It has 2-inch inlet and discharge ports, making it a versatile replacement pump end without a motor.
Once primed, the FLOMAX 8 pump maintains a full column of liquid in the suction line using a flapper valve, capable of achieving up to 25 feet of lift. Constructed with stainless steel fasteners and a drive shaft, this pump is ideal for various applications in industrial, OEM, agricultural, and marine sectors.
The FLOMAX 8 PumPAK is fully assembled and tested, ready to be coupled with various drivers such as hydraulic motors, 56C and 145TC frame motors, and gas engines. Additionally, a bearing pedestal is available for T-frame motors or belt drives. Key features include a stainless steel drive sleeve, renewable wearplate, and a semi-open dynamically balanced impeller.
Common Applications:
- Bilge Pumps
- Auxiliary Fire Pumps
- Ballast Transfer Pumps
- Washdown Pumps
- Fertilizer and Pesticide Pumps
- Applicators and Sprayers
- Blending Pumps
- Nurse Tanks
- Bulk Transfer Pumps
