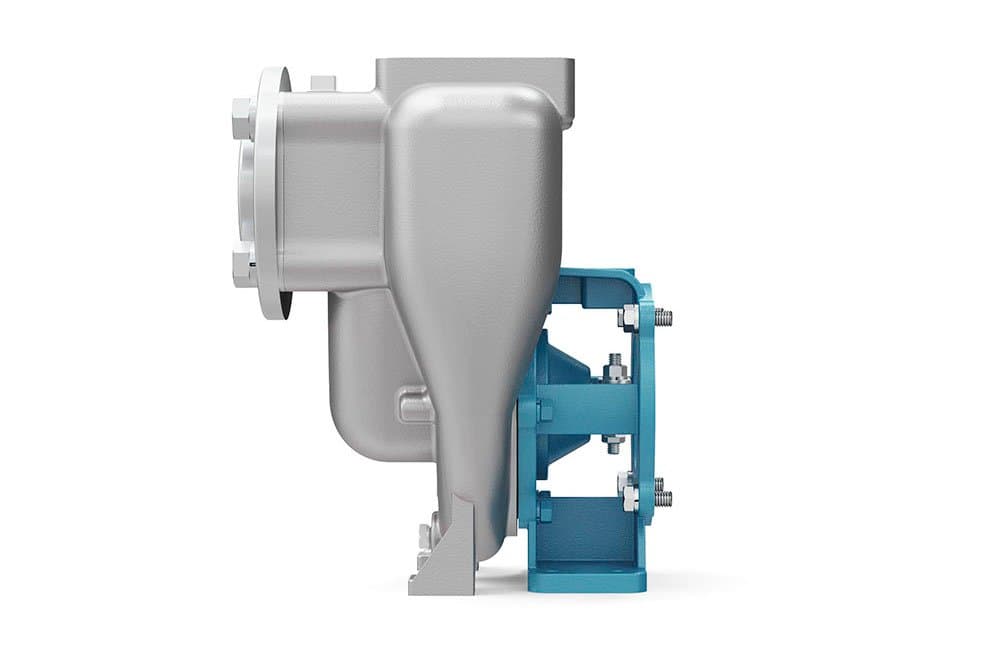

Flomax 8 PumPAK | Self Priming Centrifugal Pump | MP28398
SKU: mp28398
SKU: mp28398
Key Features:
- Pump Body: Stainless Steel
- Impeller: 5.0-inch Diameter
- Port Size: 2-inch Inlet and Discharge Ports (NPT)
- Material: Stainless Steel
- Maximum Flow: 150 GPM
- Maximum Head: 100 feet
- Max Solid Handling: 0.56 inches
- Additional Features: Serviceable wear plate, stainless steel drive sleeve, stainless steel fasteners, and suction lift up to 25 feet
- Design and Applications: The MP 28398 pump is engineered to provide enhanced durability and reliability for various applications, including OEM, industrial, and agricultural uses. Its innovative design incorporates a barrier fluid accumulator directly on the pump body, reducing system costs and improving reliability. The pump is fully assembled and tested, ready to be coupled with hydraulic motors, 56C and 145TC frame motors, and gas engines. A bearing pedestal is also available for T-frame motors or belt drives.
Lead times temporarily extended to 26 weeks.
$4,009.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 28398 is a robust and compact stainless steel self-priming centrifugal pump, designed for mounting on a motor. This pump end, which includes a foot adapter for footless motors, features a 5.0-inch diameter impeller and 2-inch by 2-inch ports. It is sold as a replacement pump end without a motor.
PumPAK Integration: The FLOMAX 8, 316 SS PumPAK is a fully assembled and run-tested pump end that can be easily coupled to various drivers such as hydraulic motors, 56C and 145TC frame motors, and gas engines. This integration ensures a seamless and efficient setup for a wide range of applications.
Standard and Optional Features:
PumPAK Integration: The FLOMAX 8, 316 SS PumPAK is a fully assembled and run-tested pump end that can be easily coupled to various drivers such as hydraulic motors, 56C and 145TC frame motors, and gas engines. This integration ensures a seamless and efficient setup for a wide range of applications.
Standard and Optional Features:
- Standard: 2 NPT 150# class flat flange on the suction side, Viton flapper, 2 SAE 4-bolt flat face discharge connection, renewable 316 SS wearplate, and a semi-open dynamically balanced 316 SS impeller.
- Optional: 5-blade high flow 316 stainless steel impeller and seals for abrasive or corrosive services.
- Bilge Pumps
- Auxiliary Fire Pumps
- Ballast Transfer Pumps
- Washdown Pumps
- Fertilizer and Pesticide Pumps
- Applicators and Sprayers
- Blending Pumps
- Nurse Tanks
- Bulk Transfer Pumps
