Durable Construction: Made from high-quality stainless steel, ensuring longevity and resistance to corrosion.
Innovative Design: The double seal design and integrated barrier fluid accumulator enhance reliability and reduce system costs.
Versatile Compatibility: Can be easily coupled with hydraulic motors, 56C and 145TC frame motors, gas engines, or T-frame motors with a bearing pedestal.
Efficient Performance: Equipped with a semi-open, dynamically balanced 316 stainless steel impeller for optimal performance.
Standard and Optional Features: Includes a 2 NPT 150# class flat flange on the suction side, Viton flapper, 2 SAE 4-bolt flat face discharge connection, stainless steel drive sleeve, fasteners, and renewable 316 SS wearplate. Optional 5-blade high flow impeller and seals for abrasive or corrosive services are available.
Lead times temporarily extended to 16 weeks.
$3,511.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

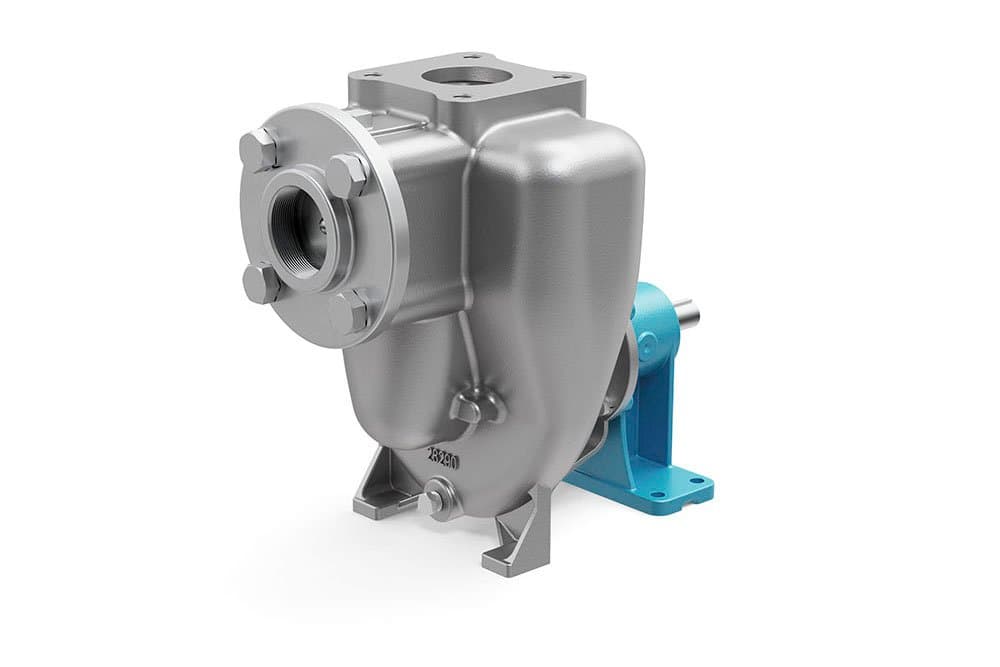

The MP 28399 is a robust and compact stainless steel self-priming centrifugal pump, designed for a variety of OEM, industrial, and agricultural applications. This model features a 5.0-inch diameter impeller and 2-inch by 2-inch ports, and is sold as a replacement pump end only, without a motor.
Specifications:
Pump Type: Self-Priming Centrifugal Pump
Inlet/Outlet Diameter: 2 inches
Maximum Flow Rate: 150 GPM
Maximum Total Head: 96 feet
Maximum Pressure: 41 PSI
Maximum Suction Lift: 25 feet
Solids Handling Capacity: Up to 0.56 inches
Temperature Range: Up to 250°F
Port Types: NPT/ANSI
Maximum Casing Pressure: 150 PSI
Additional Information:
Unit Dimensions: 14.1"L x 8.6"W x 12.3"H
Weight: 75 lbs
Compliance: CARB (California), EPA
The FLOMAX 8 series pumps are ideal for a wide range of uses, including:
