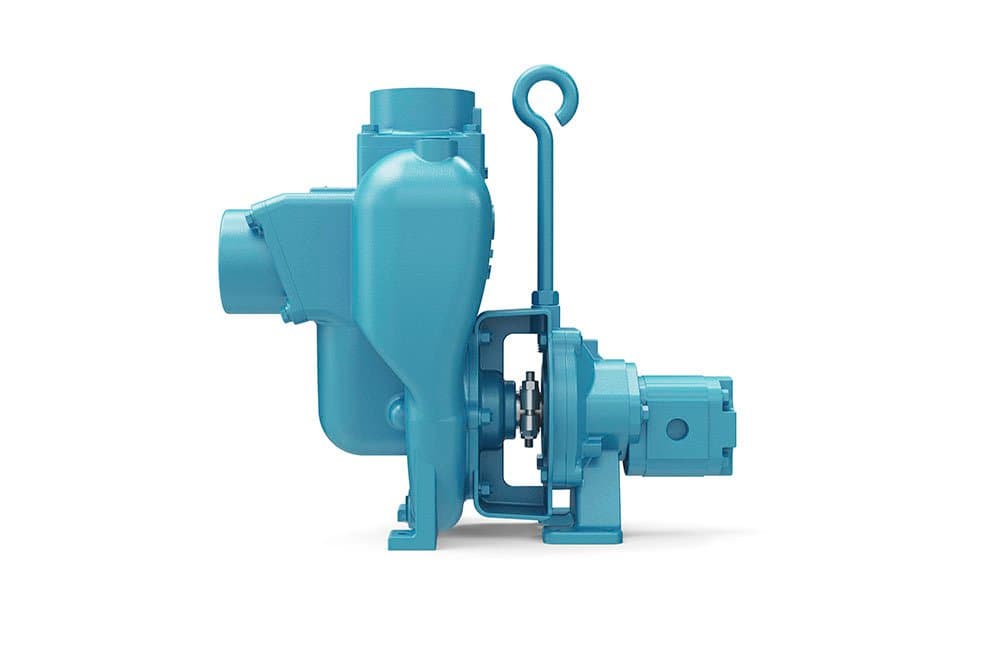

Flomax 15 | Pedestal Hydraulic Drive Self Priming Centrifugal Pump | MP28553

The MP 28553 is a robust and efficient self-priming centrifugal pump designed for demanding agricultural, marine, and industrial applications. This pump features a 5.75-inch diameter impeller and 3-inch by 3-inch NPT ports, and is sold as a replacement pump end only, without a motor.

Specifications:

• Suction and Discharge: 3" x 3" NPT
• Material: Cast Iron
• Mount Type: Pedestal
• Maximum Flow: 318 GPM
• Maximum Head: 183 feet
• Max Solid Handling: 0.625 inches

Performance and Options: Once activated, the built-in flapper valve maintains a full column of liquid throughout the suction line, enabling efficient operation. The pump can lift liquids up to 25 feet, making it suitable for various challenging environments. The FLOMAX 15 hydraulic pump is compatible with a .73 cubic inch displacement gear motor, supporting hydraulic flows from 8 GPM to 15 GPM and hydraulic pressures from 500 PSI to 1700 PSI.

The FLOMAX series pumps are ideal for a wide range of uses, including:

• Bilge Pumps
• Auxiliary Fire Pumps
• Ballast Transfer Pumps
• Washdown Pumps
• Fertilizer and Pesticide Pumps
• Applicators and Sprayers
• Blending Pumps
• Nurse Tanks
• Bulk Transfer Pumps

With options for double grease lubricated seals and stainless steel impellers, the MP 28553 is equipped to handle abrasive and corrosive services, ensuring reliable performance in the toughest conditions.
