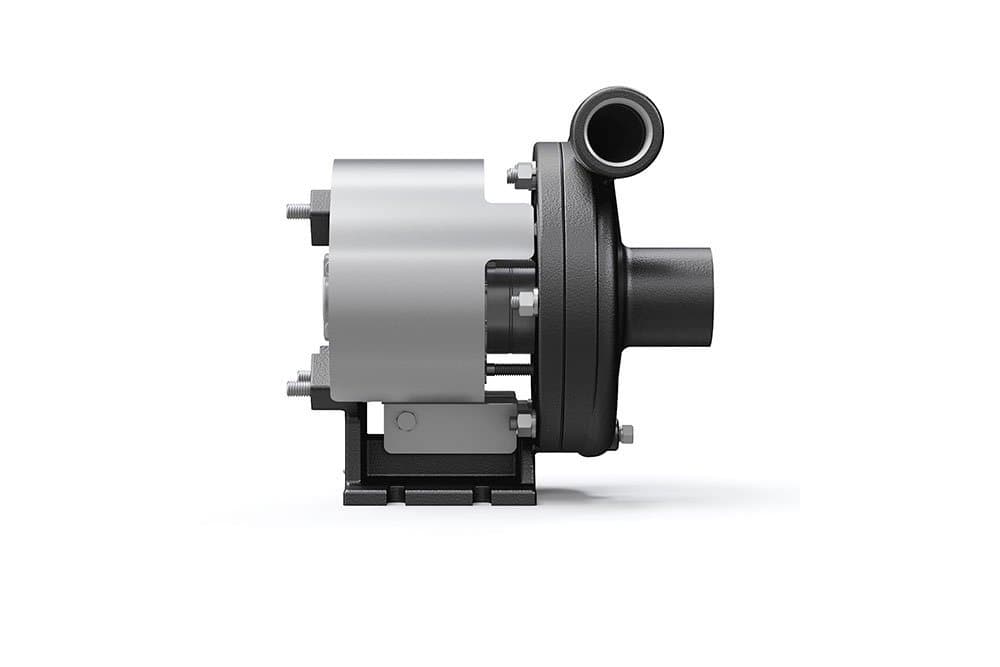

HTO 80 | Hot Oil Centrifugal Pump and Motor Unit | MP29411
HTO 80 | Hot Oil Centrifugal Pump and Motor Unit | MP29411
Art. No.: mp_mp29411
Art. No.: mp_mp29411
Key Specifications:
Material: Ductile Iron
Impeller Diameter: 5.9 inches
Port Size: 1-1/2" Inlet x 1-1/4" Discharge (NPT or flat flange)
Motor: 3 HP, 230/460V, Three-Phase, TEFC
Max Flow Rate: 85 GPM
Max Head: 130 ft
Lead times temporarily extended to 16 weeks.
$3,702.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The MP 29411 is a high-performance centrifugal pump system from the HTO 80 Series, designed specifically for demanding hot oil applications. Constructed from durable ductile iron, this pump features a 5.9-inch diameter impeller and is equipped with a 3 HP TEFC (Totally Enclosed Fan Cooled) motor, operating at 230/460V, three-phase. The unit is close-coupled to a standard NEMA "C" face motor, ensuring compact design and reliable performance.
Designed for high-temperature conditions, the pump includes an insulated, air-cooled seal chamber for enhanced thermal resistance and extended service life. It supports both NPT and flat flange port options with 1-1/2" inlet and 1-1/4" discharge ports, making it flexible for a variety of installation needs.
Available in cast iron, bronze, or aluminum configurations, the HTO 80 Series can handle a wide range of fluids, making it suitable for industrial thermal systems, heat transfer applications, and more.
Engineered for efficiency and built for endurance, the MP 29411 delivers reliable operation in extreme temperature environments.
