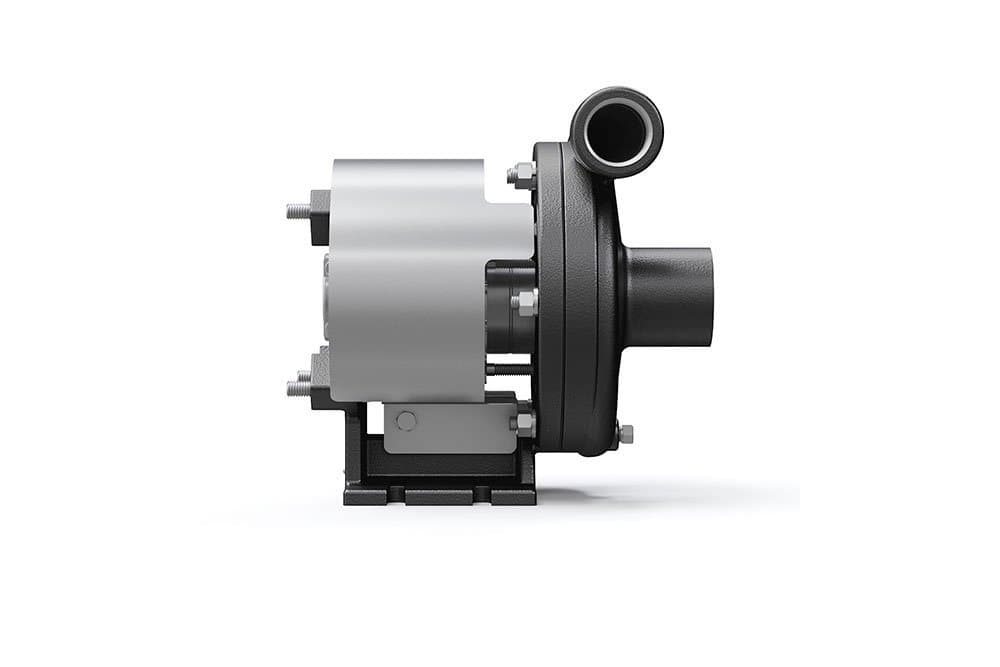

HTO 120 | Hot Oil Centrifugal Pump and Motor Unit | MP30170
SKU: mp30170
SKU: mp30170
Key Specifications:
- Pump Housing: Ductile Iron
- Impeller Diameter: 5.96 inches
- Connections: 2" Inlet x 1-1/2" Discharge (NPT or 125 lb. flat flange)
- Motor: 5 HP, 230/460V, 3-Phase, TEFC
- Maximum Flow Rate: Up to 195 GPM
- Maximum Head: 135 feet
- Cooling Method: Ambient air-cooled seal
- Mounting: Horizontal or vertical
Lead times temporarily extended to 26 weeks.
$5,208.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.Engineered for reliable operation in demanding thermal transfer applications, the MP 30170 is a high-performance centrifugal pump designed to handle hot oil with ease. This model features a robust ductile iron construction and a 5.96-inch impeller, ensuring optimal flow and durability even under extreme conditions.
Equipped with a 5 horsepower, 230/460V, three-phase TEFC (Totally Enclosed Fan Cooled) motor, this close-coupled unit delivers powerful performance while minimizing heat exposure to critical components. The air-cooled mechanical seal design helps maintain lower operating temperatures without requiring additional cooling systems—making it ideal for high-temperature environments.
With a compact and adaptable layout, the MP 30170 supports both vertical and horizontal mounting options, allowing for flexible installation based on your system's requirements. Ports are available in 2" inlet and 1-1/2" discharge sizes, with compatibility for either NPT threading or 125 lb. flat flanges.
Whether integrated into a new system or replacing an existing unit, the MP 30170 provides dependable, efficient performance for hot oil applications across industrial environments.
Equipped with a 5 horsepower, 230/460V, three-phase TEFC (Totally Enclosed Fan Cooled) motor, this close-coupled unit delivers powerful performance while minimizing heat exposure to critical components. The air-cooled mechanical seal design helps maintain lower operating temperatures without requiring additional cooling systems—making it ideal for high-temperature environments.
With a compact and adaptable layout, the MP 30170 supports both vertical and horizontal mounting options, allowing for flexible installation based on your system's requirements. Ports are available in 2" inlet and 1-1/2" discharge sizes, with compatibility for either NPT threading or 125 lb. flat flanges.
Whether integrated into a new system or replacing an existing unit, the MP 30170 provides dependable, efficient performance for hot oil applications across industrial environments.
