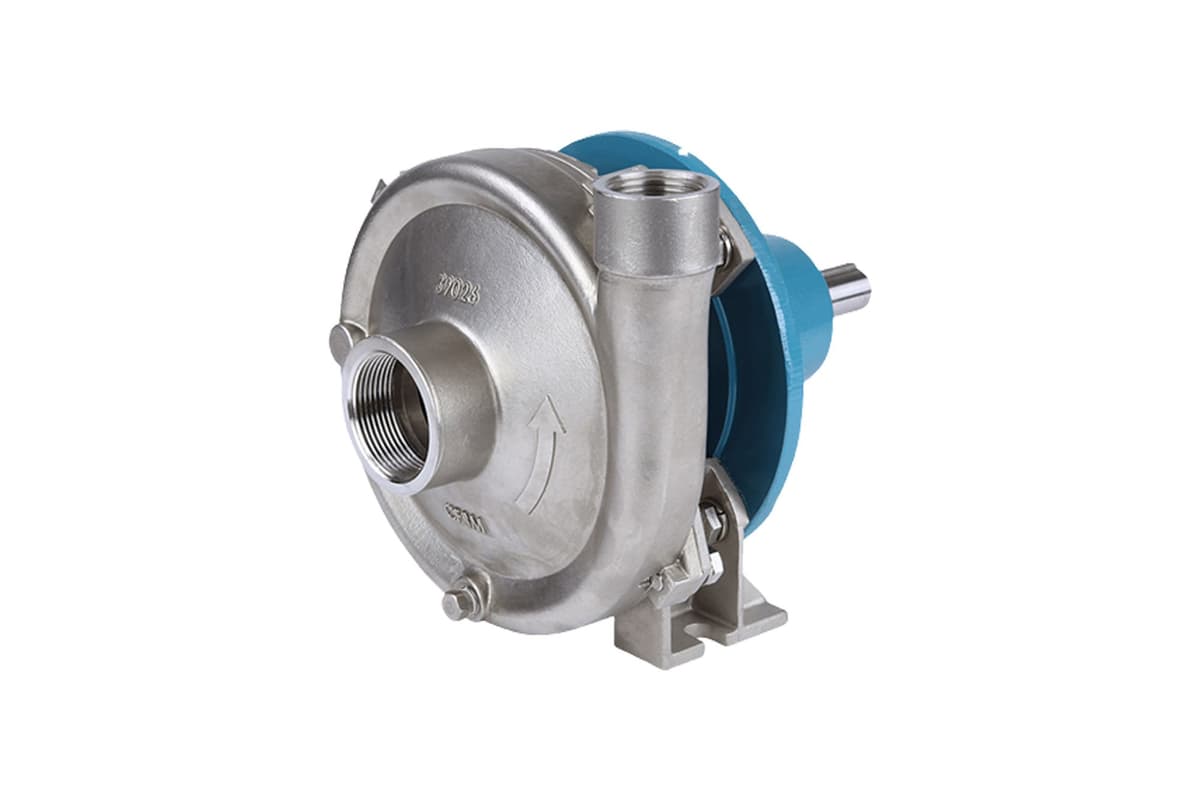

Chemflo 1 | Pedestal Centrifugal Chemical Pump | MP30328
SKU: mp30328
SKU: mp30328
Key Specifications:
- Material: Investment cast 316 stainless steel
- Mounting Style: Pedestal (bare shaft)
- Impeller Diameter: 6.0 inches
- Port Connections: 1-1/2" inlet x 1" discharge (NPT)
- Maximum Flow Rate: 100 GPM
- Maximum Head: 145 feet
- Motor Compatibility: Designed for 56C or 145TC frame motors (note: 145TC motors must include a base for pedestal mounting)
Lead times temporarily extended to 20 weeks.
$2,055.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 30328 is a pump end unit from the ChemFlo® 1 series, built from premium 316 stainless steel for enhanced durability and chemical resistance. This model features a 6.0-inch diameter impeller and NPT ports sized at 1-1/2" inlet by 1" discharge. Offered as a bare-shaft, pedestal-style pump end, it is designed for replacement or integration into custom systems—motor not included.
Engineered for demanding chemical handling tasks, this end suction centrifugal pump delivers impressive performance, reaching flow rates up to 100 GPM and generating head pressures up to 145 feet. Its semi-open impeller design accommodates small solids, while also promoting high efficiency in fluid transfer.
To suit diverse operating conditions, the ChemFlo 1 series supports multiple seal configurations, including a standard mechanical seal made of carbon, ceramic, and Viton. This version is part of the modular ChemFlo lineup, available in both complete pump assemblies and PumPAK options (pump ends only).
Optional Configuration: Also available in nickel-aluminum bronze (NiBrAl) for marine applications as the CFB 1 series.
Engineered for demanding chemical handling tasks, this end suction centrifugal pump delivers impressive performance, reaching flow rates up to 100 GPM and generating head pressures up to 145 feet. Its semi-open impeller design accommodates small solids, while also promoting high efficiency in fluid transfer.
To suit diverse operating conditions, the ChemFlo 1 series supports multiple seal configurations, including a standard mechanical seal made of carbon, ceramic, and Viton. This version is part of the modular ChemFlo lineup, available in both complete pump assemblies and PumPAK options (pump ends only).
Optional Configuration: Also available in nickel-aluminum bronze (NiBrAl) for marine applications as the CFB 1 series.
