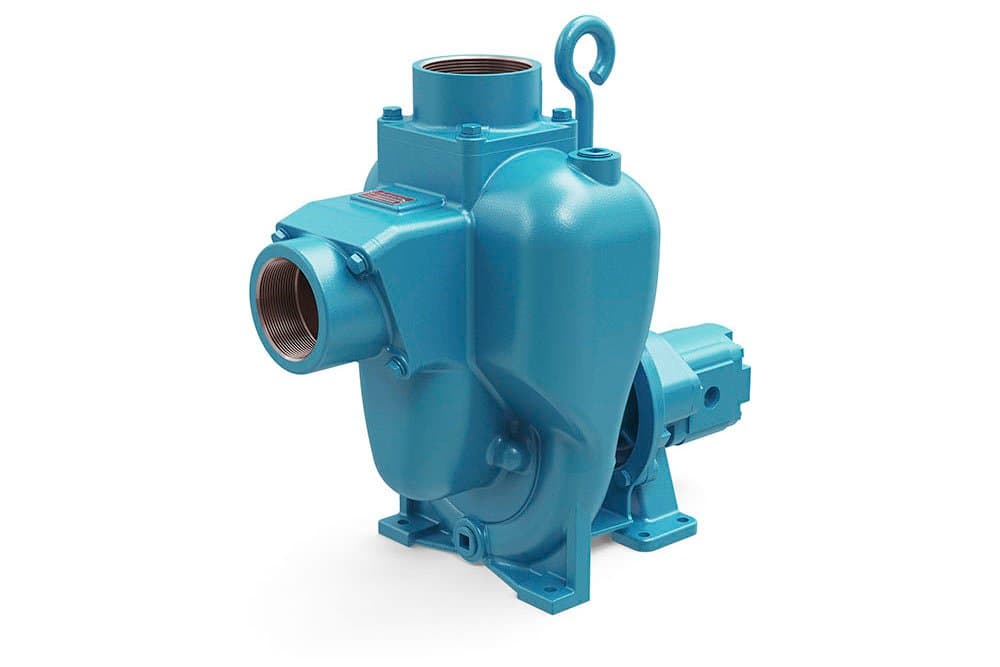

The MP 31338 is a rugged, cast iron hydraulic centrifugal pump head from the FLOMAX 15 series, designed for demanding agricultural, marine, and industrial applications. This self-priming pump end features a 5.75-inch semi-open impeller and 3" NPT suction and discharge ports. It is supplied as a pedestal-mounted pump end only, without a motor.
Engineered for high performance and durability, the MP 31338 utilizes a built-in flapper valve that helps maintain prime by keeping the suction line filled with liquid, allowing for a suction lift of up to 25 feet. The pump is capable of delivering flow rates up to 318 GPM and a maximum head of 183 feet, making it ideal for handling both high-volume and high-lift tasks.
The FLOMAX 15 can be paired with a .73 cubic inch displacement hydraulic gear motor, operating with flow rates from 8 to 15 GPM and pressures from 500 to 1700 PSI.
Available Options:
Stainless steel impeller
Double grease-lubricated seals
Corrosion- and abrasion-resistant materials for harsh media
This pump is ideal for a wide range of uses, including:
