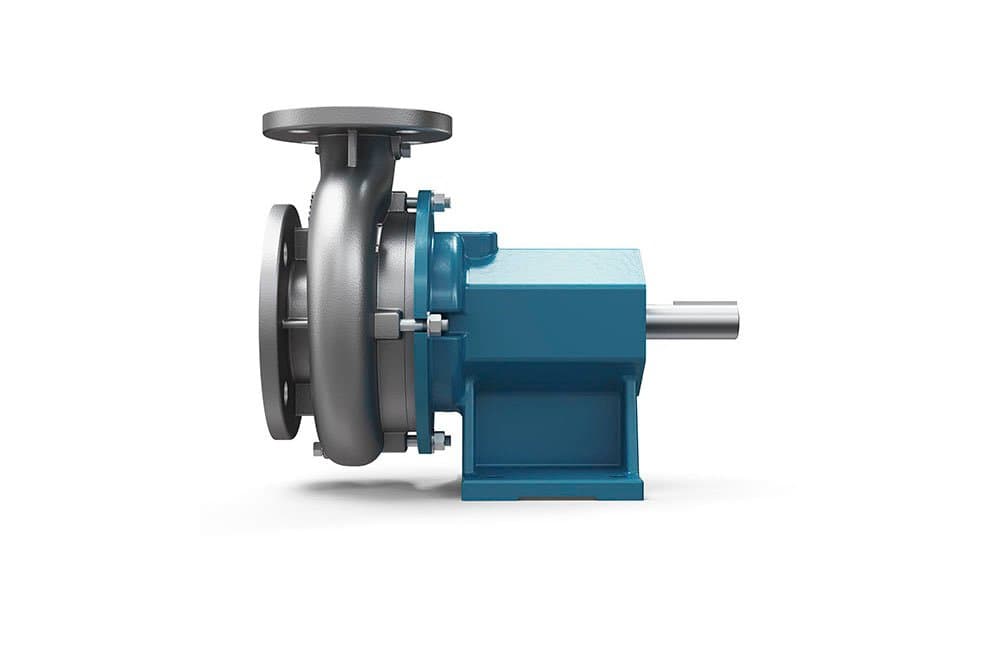

The MP 31462 is a premium-grade pump end from the ChemFlo 5 Series, designed for use with compatible electric motors. Constructed from high-quality stainless steel, this pump end offers outstanding resistance to chemical corrosion, making it ideal for demanding fluid transfer applications in industrial and chemical processing environments.
Engineered for durability and performance, it features a fully enclosed 4.75-inch diameter impeller that promotes efficient flow and smooth operation. The suction and discharge ports follow ANSI 150 lb. flange standards, with a 2-inch inlet and 1-1/2 inch outlet configuration.
Optimized for versatility, the ChemFlo 5 pump end delivers flow rates up to 300 GPM and can handle total dynamic heads up to 157 feet. Its enclosed impeller design enables higher efficiency and better performance at greater heads compared to standard semi-open alternatives.
Available as a PumPAK configuration (pump end only), this model is intended for mounting on compatible 145TC, 184TC, or 215TC frame motors with a base. A range of mechanical seal options, including the standard carbon/ceramic/Viton (Type 2100), ensures adaptability to various operating conditions.
Ideal for applications where chemical resistance, reliability, and high hydraulic performance are critical, the MP 31462 delivers exceptional results without compromise.
