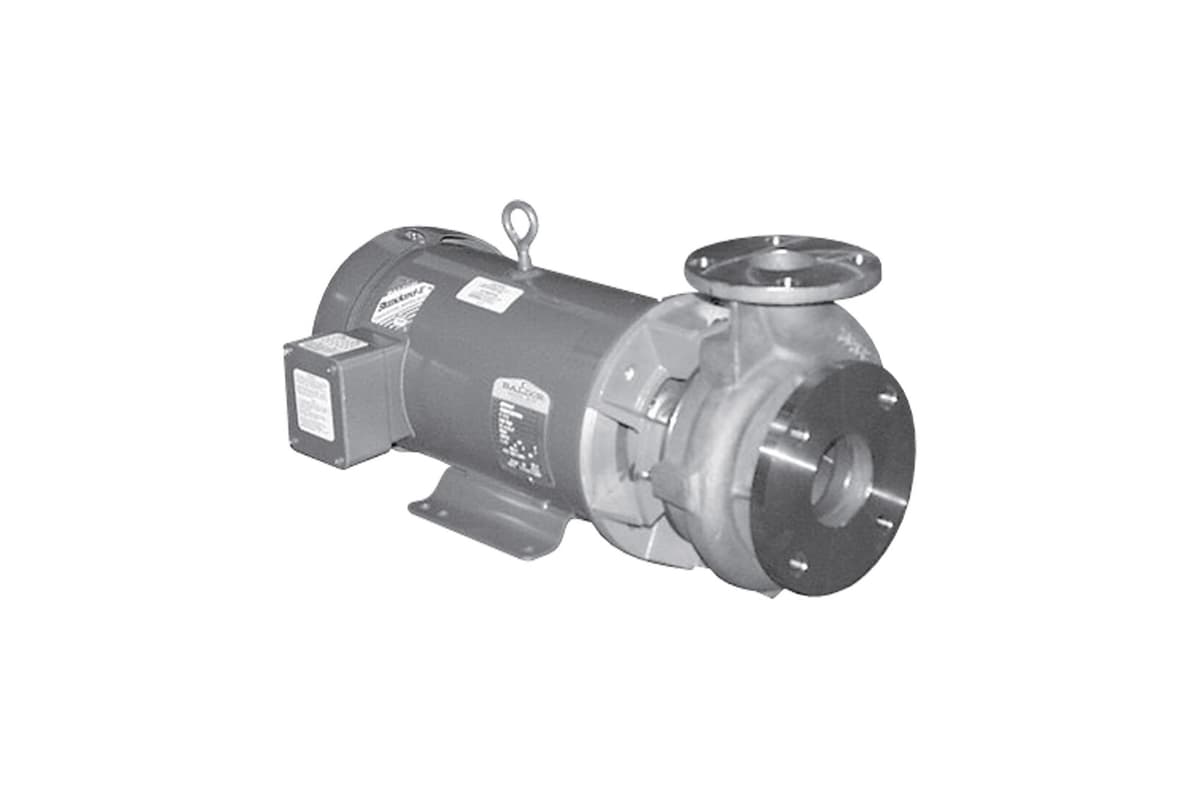

Chemflo 6 PumPAK | Centrifugal Chemical Pump | MP31661
SKU: mp31661
SKU: mp31661
Key Specifications:
- Pump Construction: 100% Stainless Steel
- Impeller Diameter: 6.18 inches
- Port Size: 3” inlet x 2” discharge (ANSI 150# flanges)
- Max Flow Rate: Up to 450 GPM
- Max Head: Up to 157 ft
- Seal Options: Multiple mechanical seal types available
- Motor Compatibility: Designed for 145TC, 184TC, 215TC motors (motor not included)
- Mounting Note: Electric motor must include a base when used with PumPAK
Lead times temporarily extended to 20 weeks.
$3,858.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 31661 is a high-performance stainless steel pump end from the ChemFlo® 6 series, specifically engineered for demanding chemical transfer applications. This model is a PumPAK configuration, meaning it comes without a motor and is designed for direct mounting on compatible motors including 145TC, 184TC, and 215TC frame types.
Featuring a precision-engineered 6.18-inch enclosed impeller, this end suction centrifugal pump delivers excellent hydraulic efficiency and higher head performance compared to semi-open impeller designs. With the capability to handle flow rates of up to 450 GPM and generate heads as high as 157 feet, the ChemFlo® 6 series is ideal for a wide range of industrial fluid handling tasks.
The pump is constructed entirely of corrosion-resistant stainless steel, making it a durable choice for corrosive and chemically aggressive environments. It is equipped with 3" x 2" ANSI 150# flange ports, ensuring secure and standardized connections for both suction and discharge.
To meet various operating conditions, the ChemFlo® 6 offers a wide selection of mechanical seals. The standard configuration includes a Type 2100 carbon/ceramic/Viton seal, with other material combinations available to match specific application needs.
Featuring a precision-engineered 6.18-inch enclosed impeller, this end suction centrifugal pump delivers excellent hydraulic efficiency and higher head performance compared to semi-open impeller designs. With the capability to handle flow rates of up to 450 GPM and generate heads as high as 157 feet, the ChemFlo® 6 series is ideal for a wide range of industrial fluid handling tasks.
The pump is constructed entirely of corrosion-resistant stainless steel, making it a durable choice for corrosive and chemically aggressive environments. It is equipped with 3" x 2" ANSI 150# flange ports, ensuring secure and standardized connections for both suction and discharge.
To meet various operating conditions, the ChemFlo® 6 offers a wide selection of mechanical seals. The standard configuration includes a Type 2100 carbon/ceramic/Viton seal, with other material combinations available to match specific application needs.
