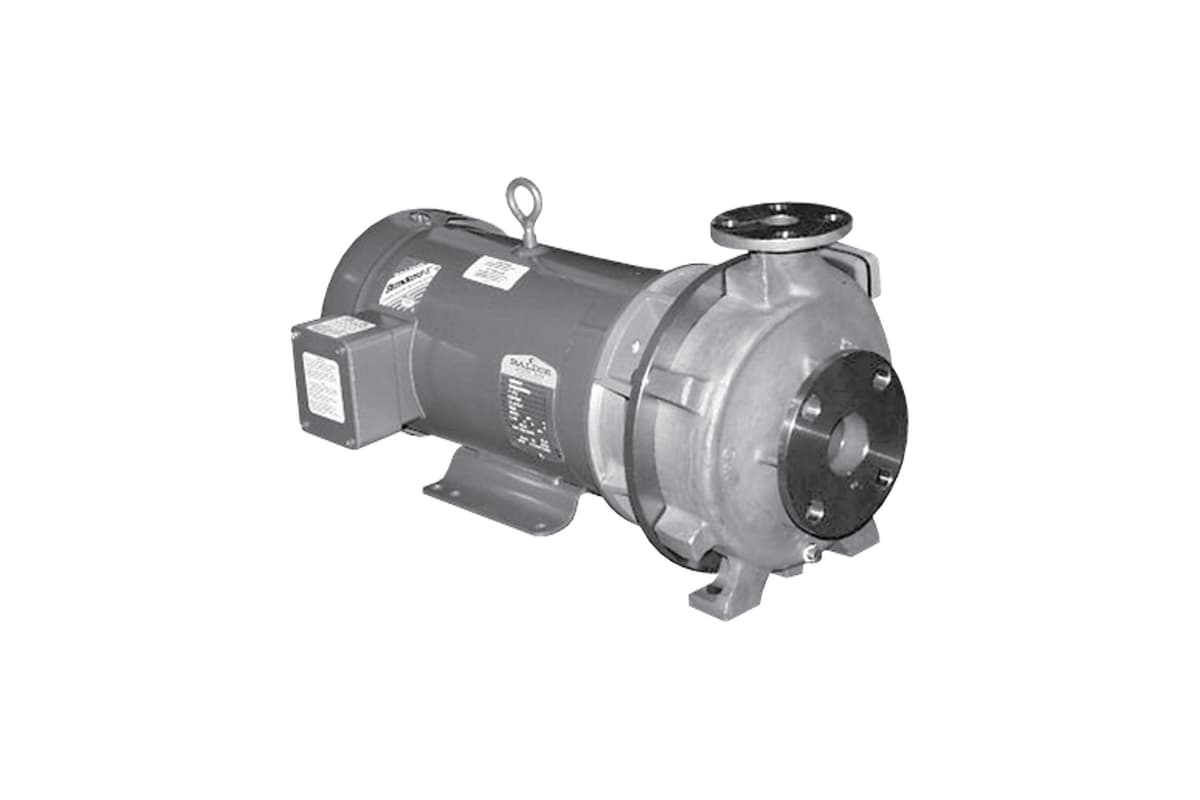

The MP 31989 is a robust pedestal-mounted centrifugal pump end from the ChemFlo® 7 series, designed for handling a wide range of chemical processing applications. This model features a precision-engineered, 7.95-inch enclosed impeller for superior hydraulic performance, and 2" x 1" ANSI 150# flanged ports for secure and standardized connections. Please note that this is a bare shaft pump end only—a motor is not included.
Crafted from investment-cast 316 stainless steel, all wetted components deliver exceptional resistance to corrosion, making the MP 31989 an ideal solution for transferring aggressive or hazardous fluids. Engineered to deliver flow rates up to 200 gallons per minute (GPM) and reach a maximum total head of 280 feet, this pump supports demanding operational requirements across industries such as chemical processing, water treatment, and manufacturing.
The ChemFlo® 7 pedestal configuration is compatible with a variety of electric motor frame sizes, including 145TC, 184TC, 215TC, and 256TC. If you're pairing the unit with a 145TC frame motor, ensure the motor is equipped with a mounting base.
Built to perform under pressure, the MP 31989 ChemFlo® 7 pump end combines chemical resistance, mechanical durability, and installation flexibility in one powerful package.
