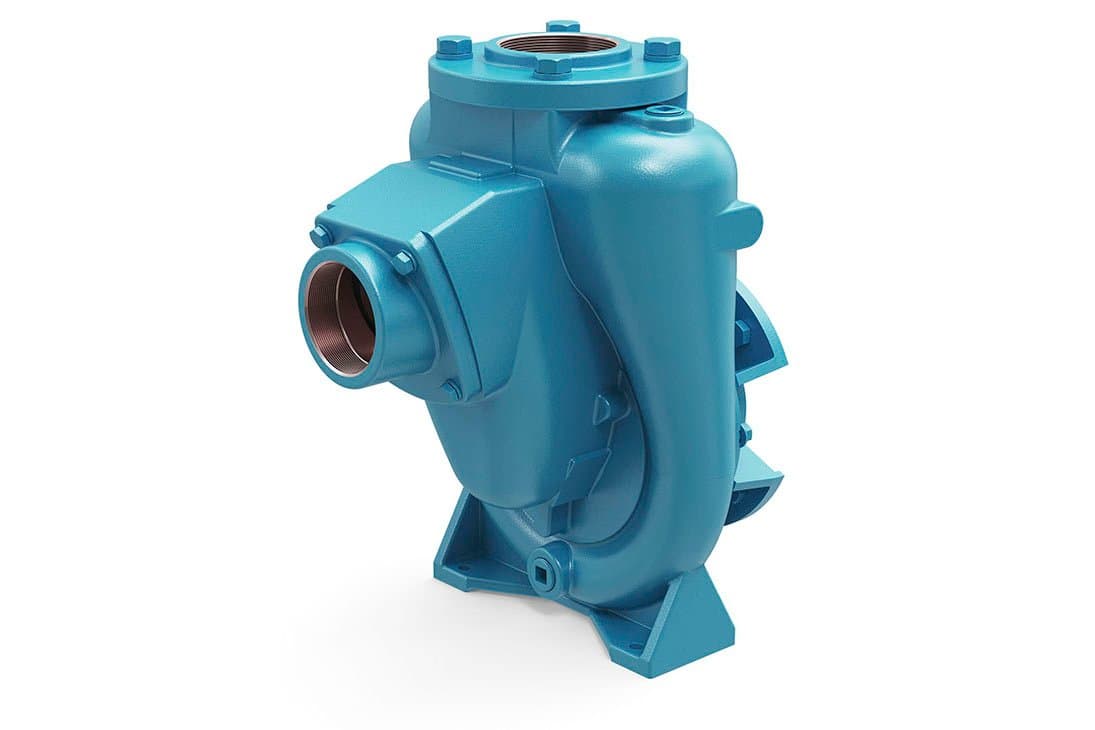

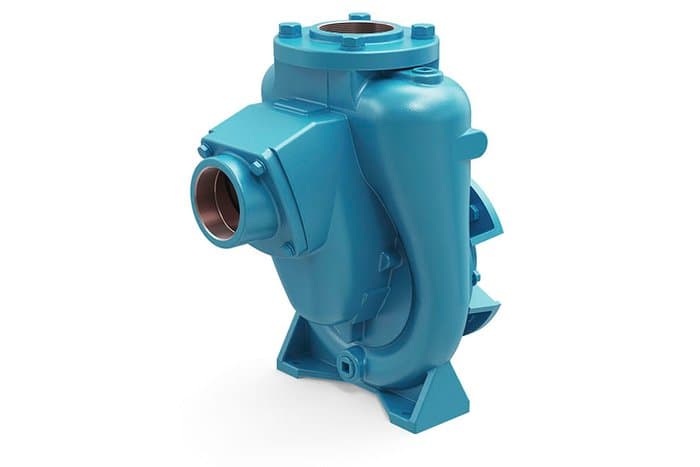

Flomax 30 | Pedestal Self Priming Centrifugal Pump | MP32035
SKU: mp32035
SKU: mp32035
Key Features:
- Pump Body: Durable cast iron construction
- Impeller: 7.0" diameter, semi-open, dynamically balanced
- Port Size: 3" NPT inlet and 3" NPT discharge
- Mounting: Pedestal configuration (bare shaft)
- Maximum Flow Rate: Up to 480 GPM
- Maximum Head: Up to 190 feet
- Maximum Solids Handling: Up to 0.6 inches
- Suction Lift Capability: Up to 25 feet
- Corrosion Resistance: Stainless steel fasteners and drive sleeve
- Ease of Maintenance: Replaceable wear plate
Lead times temporarily extended to 20 weeks.
$5,279.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 32035 is a high-performance, cast iron pump end from the FLOMAX® 30 series, designed for reliable self-priming operation in demanding environments. This model is a pedestal-mounted pump end supplied without a motor, making it ideal for customized configurations. It features a 7.0-inch diameter semi-open impeller and 3" x 3" NPT suction and discharge ports, engineered for high efficiency and extended service life.
Capable of lifting liquids from depths of up to 25 feet, the FLOMAX 30 ensures dependable suction through its integrated flapper check valve, which helps maintain a full suction line. The renewable wear plate, stainless steel fasteners, and stainless steel drive sleeve all contribute to long-term durability and reduced maintenance.
This pump end, also known as a PumPAK, is factory-assembled and test-run for quality assurance. It's compatible with 182TC to 256TC frame electric motors as well as gas engine drives. For belt-driven systems or T-frame motor setups, a bearing pedestal is also available.
Ideal for use across industrial, agricultural, OEM, and marine sectors, including:
Capable of lifting liquids from depths of up to 25 feet, the FLOMAX 30 ensures dependable suction through its integrated flapper check valve, which helps maintain a full suction line. The renewable wear plate, stainless steel fasteners, and stainless steel drive sleeve all contribute to long-term durability and reduced maintenance.
This pump end, also known as a PumPAK, is factory-assembled and test-run for quality assurance. It's compatible with 182TC to 256TC frame electric motors as well as gas engine drives. For belt-driven systems or T-frame motor setups, a bearing pedestal is also available.
Ideal for use across industrial, agricultural, OEM, and marine sectors, including:
- Bilge and ballast water transfer
- Auxiliary fire pumps
- Washdown and blending systems
- Fertilizer and pesticide spraying
- Nurse tanks and bulk liquid transfer
