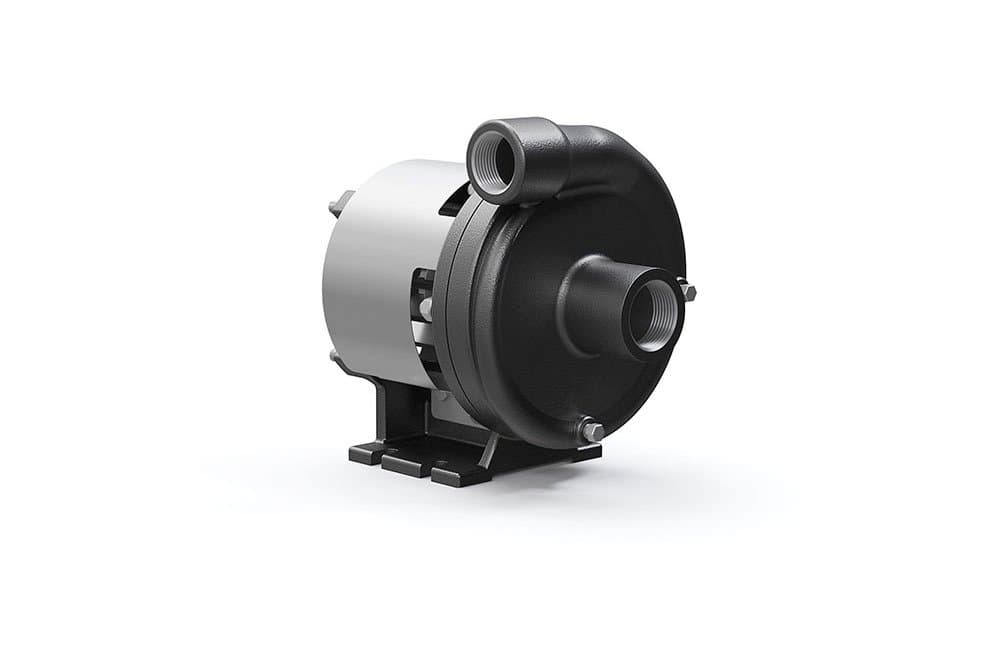

HTO 120 | Hot Oil Centrifugal Pump and Motor Unit | MP32065
SKU: mp32065
SKU: mp32065
Key Specifications:
- Pump Construction: Heavy-duty ductile iron
- Impeller Diameter: 5.96 inches
- Inlet/Outlet Size: 2" suction x 1-1/2" discharge (NPT or 125 lb. flat flange)
- Motor: 5 HP, 230/460V, 3-phase
- Flow Capacity: Up to 195 gallons per minute
- Maximum Head: 135 feet
- Seal Cooling: Air-cooled design for efficient heat management
- Mounting Options: Horizontal or vertical
Lead times temporarily extended to 26 weeks.
$5,836.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.Engineered for high-performance thermal transfer applications, the MP 32065 is a robust centrifugal pump designed to handle hot oil circulation with exceptional reliability. Built from durable ductile iron, this HTO 120 series unit features a 5.96-inch diameter impeller and is equipped with 2" x 1-1/2" flat flange or NPT ports to ensure a secure, adaptable connection.
The pump is directly coupled to a 5-horsepower, three-phase motor (230/460V), delivering efficient operation under demanding conditions. A key feature of this model is its air-cooled mechanical seal, which helps maintain safe operating temperatures even during continuous use with high-temperature fluids.
This end-suction pump offers versatile installation options—whether mounted vertically or horizontally—making it suitable for a wide range of industrial heat transfer systems. It supports a maximum flow rate of up to 195 GPM and achieves a maximum head of 135 feet, providing strong and consistent fluid movement.
The MP 32065 is part of the versatile Tempuflo series, available with or without a motor to suit your specific system requirements.
The pump is directly coupled to a 5-horsepower, three-phase motor (230/460V), delivering efficient operation under demanding conditions. A key feature of this model is its air-cooled mechanical seal, which helps maintain safe operating temperatures even during continuous use with high-temperature fluids.
This end-suction pump offers versatile installation options—whether mounted vertically or horizontally—making it suitable for a wide range of industrial heat transfer systems. It supports a maximum flow rate of up to 195 GPM and achieves a maximum head of 135 feet, providing strong and consistent fluid movement.
The MP 32065 is part of the versatile Tempuflo series, available with or without a motor to suit your specific system requirements.
