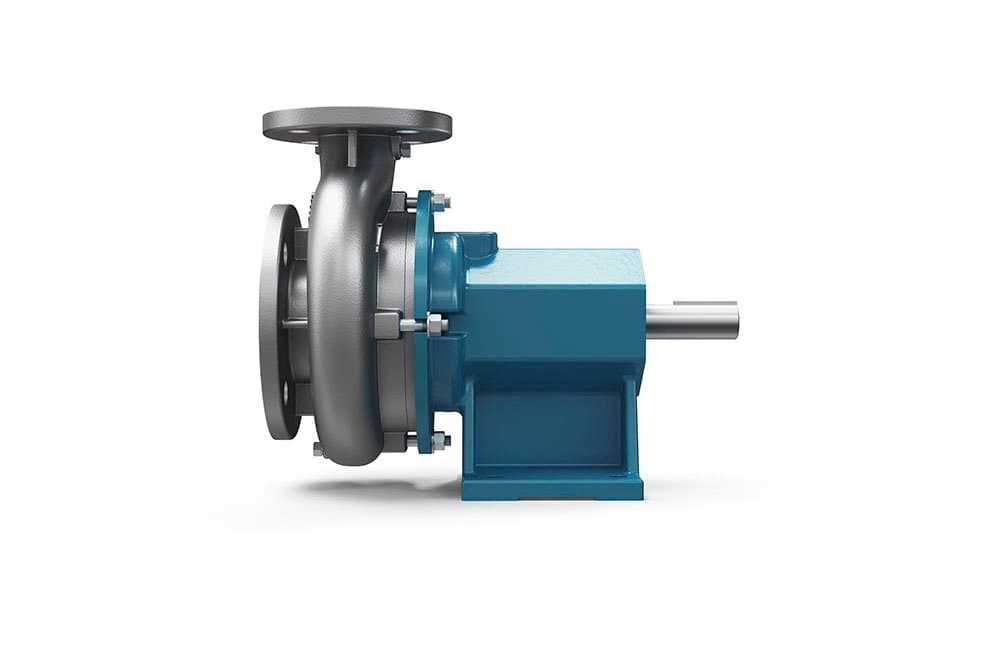

Chemflo 6 | Pedestal Centrifugal Chemical Pump | MP33066
Chemflo 6 | Pedestal Centrifugal Chemical Pump | MP33066
Art. No.: mp_mp33066
Art. No.: mp_mp33066
Key Specifications:
Material: 316 Stainless Steel (All Wetted Parts)
Mount Type: Pedestal
Impeller Diameter: 5.25 inches (Enclosed Design)
Connections: 3" Suction x 2" Discharge (ANSI 150# Flange)
Maximum Flow Rate: 450 GPM
Maximum Head: 157 Feet
Seal Type: Standard Type 2100 (Carbon/Ceramic/Viton) – Optional seals available
Lead times temporarily extended to 16 weeks.
$4,551.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The MP 33066 is a high-performance pump end from the ChemFlo® 6 series, expertly engineered for demanding chemical handling applications. Constructed entirely from investment-cast 316 stainless steel in all wetted components, this pump offers exceptional resistance to corrosion, ensuring long-lasting durability in harsh environments.
Designed without a motor, this bare-shaft unit is intended as a replacement pump end and features a 5.25-inch enclosed impeller. This impeller configuration provides superior efficiency and higher head capabilities compared to typical semi-open designs, making it a reliable choice for high-demand operations. The pump supports a maximum flow rate of 450 GPM and a total head of up to 157 feet.
The 3" inlet and 2" discharge are equipped with standard 150 lb. ANSI flanges, allowing for easy integration into existing systems. The pedestal mount (PumPAK design) offers compatibility with 145TC, 184TC, or 215TC electric motors. Please note that when pairing with a 145TC frame, the motor must include a base.
This model comes standard with a type 2100 carbon/ceramic/Viton mechanical seal, with multiple seal options available to suit various chemical applications.
Ideal for industries requiring reliable chemical transfer with high efficiency, the MP 33066 ChemFlo® 6 pump end delivers outstanding performance in a rugged and maintenance-friendly design.
