Key Specifications:
Material: 316 Stainless Steel (wetted components)
Pump Type: End suction centrifugal (bare shaft)
Mounting: Pedestal
Impeller Diameter: 4.75 inches (enclosed type)
Inlet / Outlet Ports: 2" x 1-1/2" ANSI 150# flange
Max Flow Rate: Up to 300 GPM
Max Total Head: Up to 157 feet
Seal Options: Standard carbon/ceramic/Viton (Type 2100) with other configurations available
Lead times temporarily extended to 16 weeks.
$4,551.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

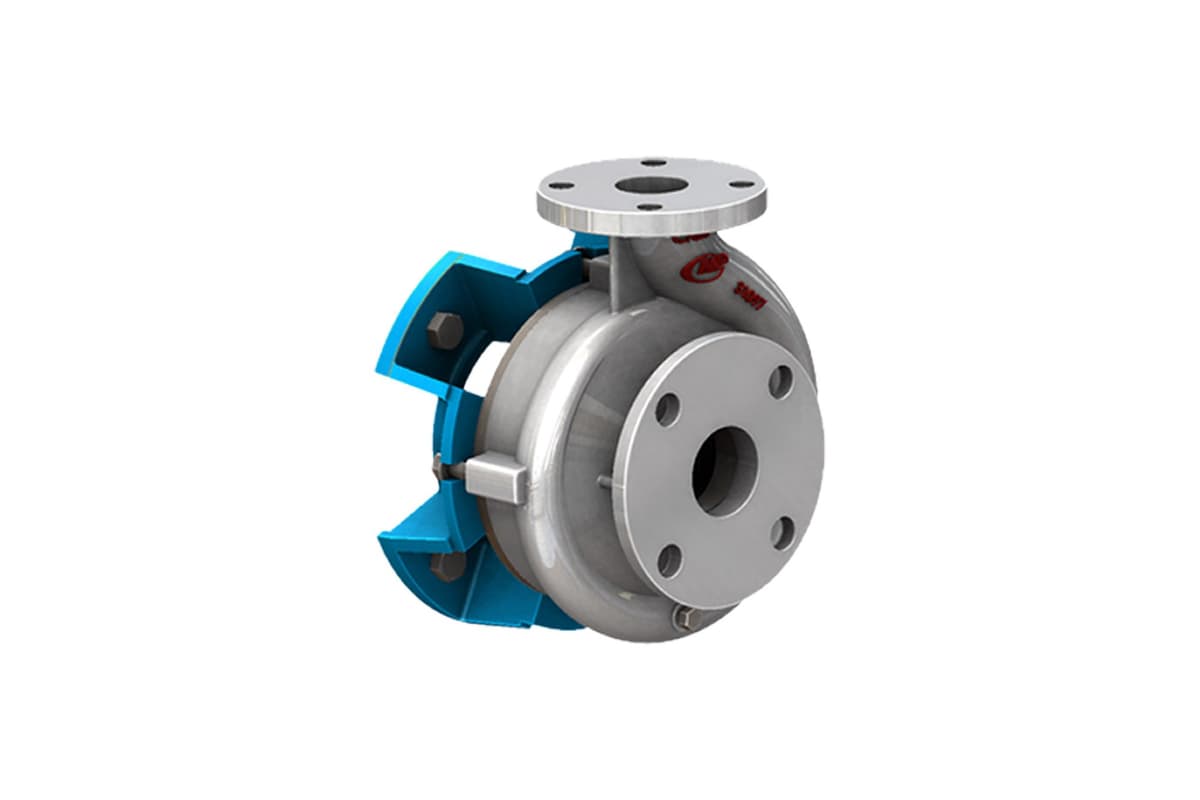

Engineered for durability and high performance, the MP 33187 is a premium stainless steel pump end from the ChemFlo 5 series. Designed without a motor (bare shaft), this pump end features a 4.75-inch enclosed impeller and is configured with 2" x 1-1/2" ANSI 150 lb. flange connections. Ideal for replacing worn pump ends, it is well-suited for applications across agriculture, OEM systems, marine environments, industrial setups, and commercial operations.
Crafted from 316 investment cast stainless steel, all wetted parts offer excellent resistance to corrosion, making this pump ideal for handling aggressive chemicals and demanding fluids. The enclosed impeller delivers improved hydraulic performance and efficiency, capable of achieving flow rates of up to 300 gallons per minute and a total head of up to 157 feet.
The ChemFlo 5 pedestal pump design (PumPAK) provides flexibility in motor compatibility and can be paired with 145TC, 184TC, or 215TC frame motors. When installing with a 145TC motor, ensure the motor includes a base for proper mounting.
Built to withstand the rigors of challenging fluid transfer tasks, the MP 33187 ChemFlo 5 pump end offers a reliable, corrosion-resistant solution for professionals demanding both performance and longevity.
