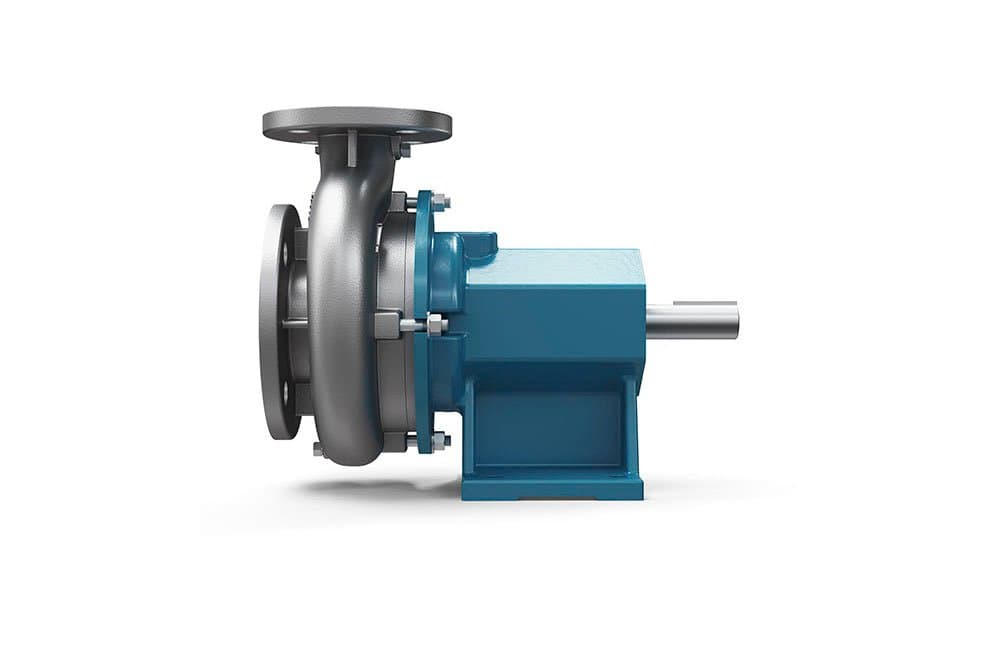

Chemflo 5 | Pedestal Centrifugal Chemical Pump | MP33667
SKU: mp33667
SKU: mp33667
Key Specifications:
- Pump Housing: 316 Stainless Steel (Investment Cast)
- Impeller Diameter: 4.75 inches
- Seal Type: T-9 Mechanical Seal (Teflon/Carbon/Ceramic)
- Connections: 2" x 1-1/2" ANSI 150# Flange
- Mount: Pedestal
- Max Flow Rate: 300 GPM
- Max Head: 157 ft
Lead times temporarily extended to 20 weeks.
$5,793.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.Engineered for demanding chemical transfer applications, the MP 33667 is a premium-grade pump end from the ChemFlo® 5 series. Designed for durability and performance, this bare-shaft centrifugal pump end features a robust 316 stainless steel construction, ensuring long-lasting resistance against corrosion from aggressive and hazardous fluids.
This pedestal-mounted model includes a 4.75-inch enclosed impeller, ideal for delivering higher efficiencies and elevated head pressures. Capable of handling flow rates up to 300 GPM and achieving a maximum head of 157 feet, the ChemFlo® 5 is a dependable choice across a range of industries—including agriculture, marine, OEM, commercial, and industrial sectors.
Fitted with a Teflon/Carbon/Ceramic T-9 mechanical seal optimized for chemical handling, the MP 33667 offers reliable sealing under demanding operating conditions. The unit features ANSI 150 lb. flange ports with a 2-inch suction and 1-1/2-inch discharge connection.
This is a replacement pump end only, delivered without a motor, and is compatible with 145TC, 184TC, and 215TC electric motors. When pairing with a 145TC frame motor, please ensure the motor includes a base for proper installation.
Designed with flexibility and performance in mind, the MP 33667 delivers the reliability needed for safe and efficient chemical processing in the most challenging environments.
This pedestal-mounted model includes a 4.75-inch enclosed impeller, ideal for delivering higher efficiencies and elevated head pressures. Capable of handling flow rates up to 300 GPM and achieving a maximum head of 157 feet, the ChemFlo® 5 is a dependable choice across a range of industries—including agriculture, marine, OEM, commercial, and industrial sectors.
Fitted with a Teflon/Carbon/Ceramic T-9 mechanical seal optimized for chemical handling, the MP 33667 offers reliable sealing under demanding operating conditions. The unit features ANSI 150 lb. flange ports with a 2-inch suction and 1-1/2-inch discharge connection.
This is a replacement pump end only, delivered without a motor, and is compatible with 145TC, 184TC, and 215TC electric motors. When pairing with a 145TC frame motor, please ensure the motor includes a base for proper installation.
Designed with flexibility and performance in mind, the MP 33667 delivers the reliability needed for safe and efficient chemical processing in the most challenging environments.
