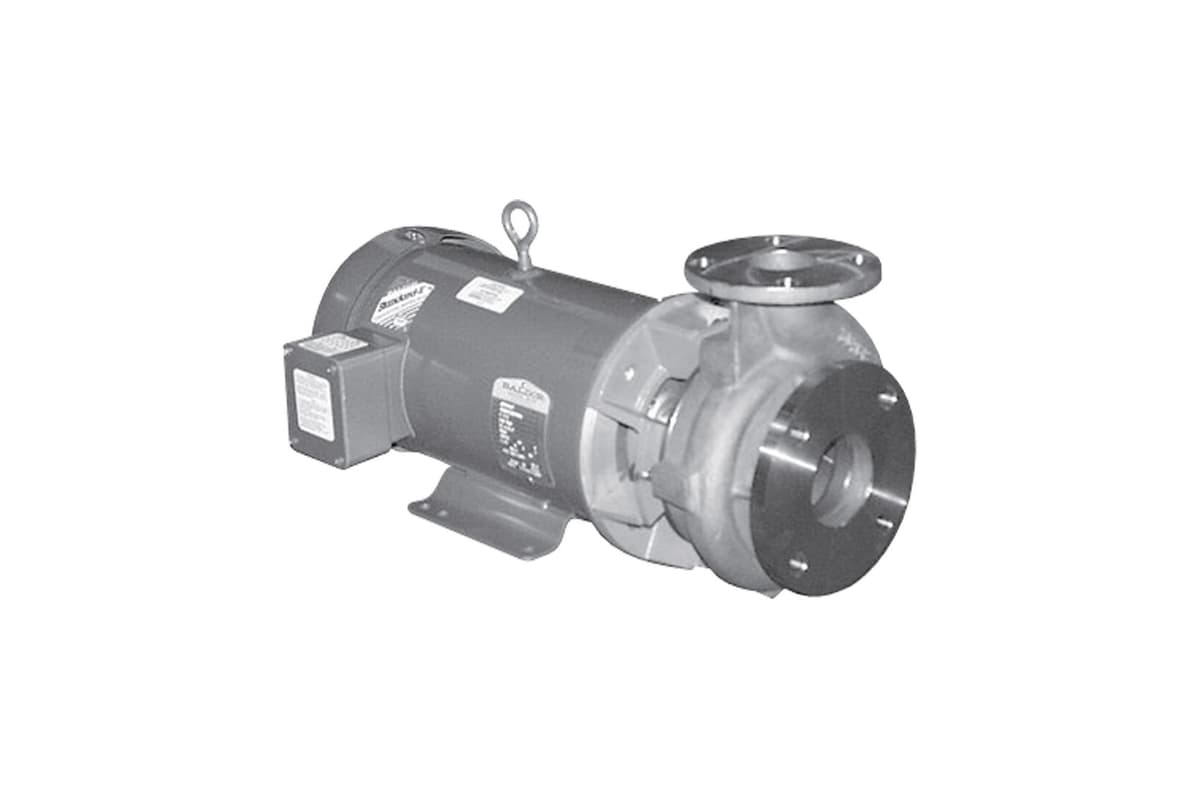

The MP 33710 is a robust pump end from the ChemFlo® 6 Series, engineered for demanding chemical handling applications. Designed for mounting onto a compatible motor, this PumPAK version (motor not included) is crafted entirely from durable stainless steel, ensuring excellent resistance to internal corrosion and prolonged service life.
Equipped with a 6.18-inch enclosed impeller, the ChemFlo 6 pump end delivers superior hydraulic performance, capable of handling flow rates up to 450 GPM and reaching total heads of up to 157 feet. This enclosed impeller design provides improved efficiency and higher heads compared to traditional semi-open designs.
The unit features ANSI 150# flange connections — a 3-inch suction inlet and a 2-inch discharge outlet — making integration into existing systems straightforward. Multiple impeller trims are available, allowing customization to meet various performance requirements.

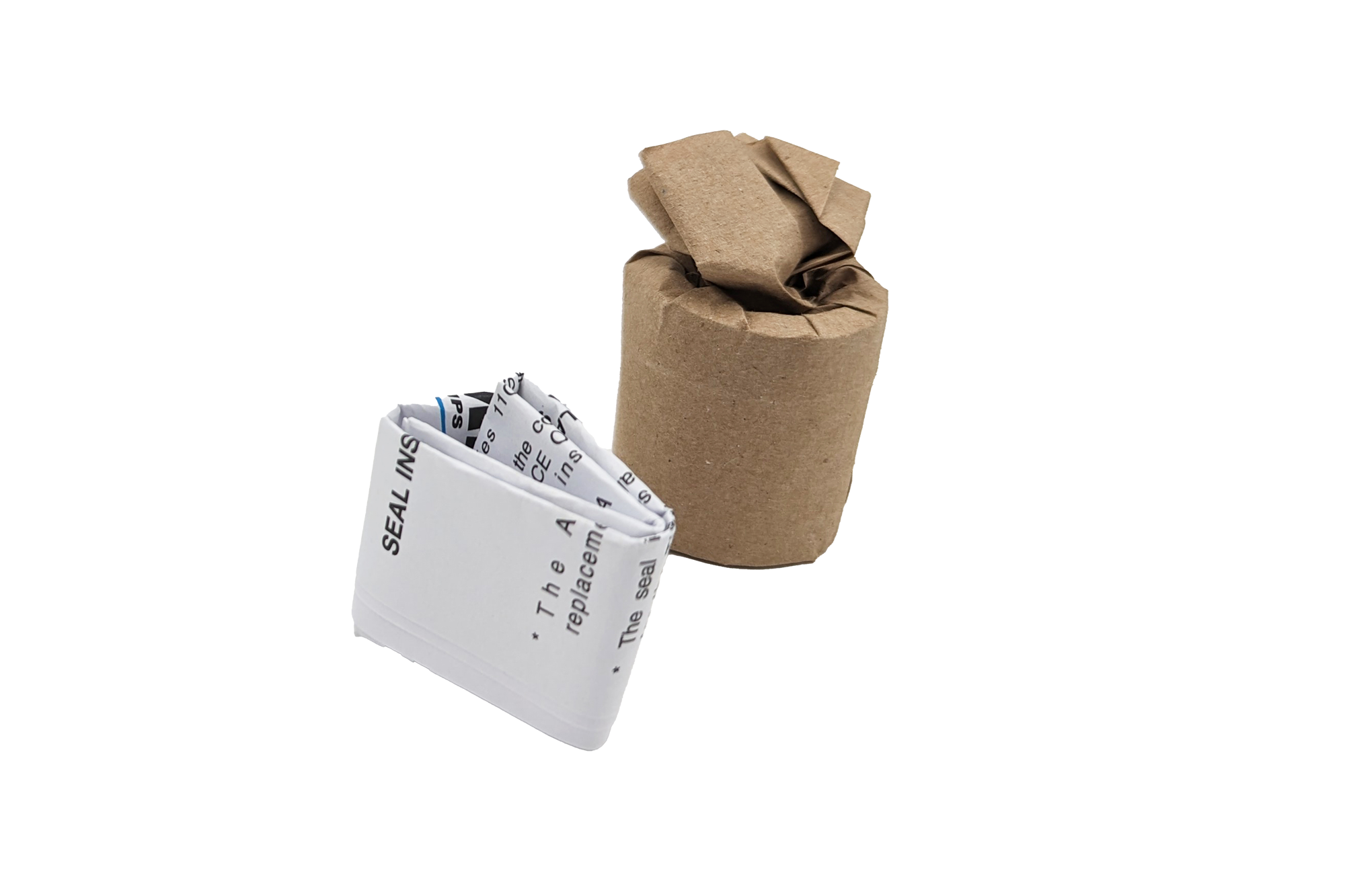

The MP 33710 supports a variety of mechanical seal configurations, including the standard carbon/ceramic/Viton Type 2100 seal, and is compatible with 145TC, 184TC, and 215TC frame motors. Please note that if purchasing the pump end only (PumPAK), the motor used must include a base.
Ideal For:
- Agricultural systems
- Industrial and commercial applications
- OEM integrations
- Marine environments
