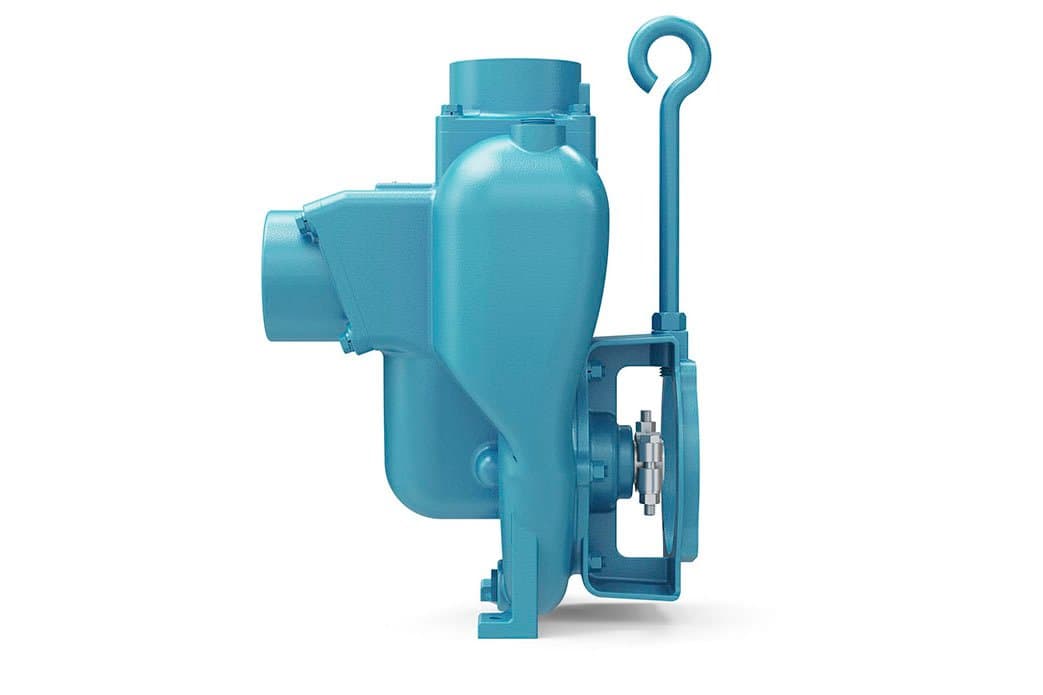

The MP 33888 is a robust and reliable cast iron pump end from the Flomax 15 series, designed for high-performance self-priming applications. This pump end unit is intended for direct mounting to motors or engines and does not include a motor. It is compatible with 184TC/215TC frame electric motors, hydraulic motors, and gasoline engines.
Built for demanding environments, this self-priming centrifugal pump features a 6.0-inch diameter semi-open, dynamically balanced impeller for efficient fluid movement. Its 3" x 3" NPT inlet and discharge ports support a maximum flow rate of up to 320 GPM and a total head of up to 145 feet. It can handle solids up to 0.625 inches, making it suitable for challenging transfer tasks.
Each unit comes pre-assembled and factory-tested for quality assurance. A flapper valve is included as standard equipment to maintain prime and ensure smooth operation. For alternative drive systems, a bearing pedestal version is available, supporting T-frame motors and belt-driven setups.
Designed for versatile use in agricultural, industrial, marine, and OEM sectors. Common uses include:
- Bilge and ballast transfer
- Firefighting support
- Washdown and cleaning systems
- Fertilizer and pesticide application
- Spraying and blending operations
- Bulk liquid transfer and nurse tanks
