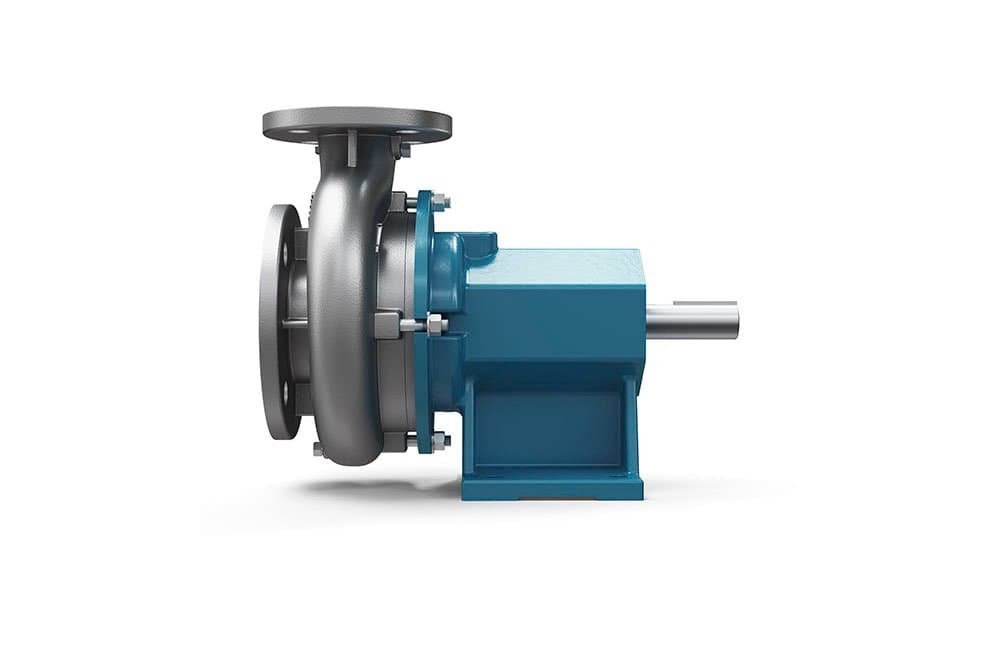

Chemflo 5 PumPAK | Centrifugal Chemical Pump | MP34443
SKU: mp34443
SKU: mp34443
Key Features:
- Material: Corrosion-resistant stainless steel
- Impeller Diameter: 6.18 inches (enclosed design)
- Port Configuration: 2" suction x 1-1/2" discharge (ANSI 150# flanges)
- Flow Capacity: Up to 300 GPM
- Maximum Head: 157 feet
- Seal Options: Multiple mechanical seal configurations available
Lead times temporarily extended to 20 weeks.
$3,439.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 34443 is a premium-grade stainless steel pump end from the ChemFlo® 5 Series, engineered for demanding chemical transfer applications. This pump end is designed for direct motor mounting (motor not included) and features a robust 6.18-inch enclosed impeller for enhanced hydraulic performance. Built with high-quality stainless steel, it provides exceptional resistance to chemical corrosion, ensuring long-term durability and efficiency.
With ANSI 150 lb. flange connections—2-inch suction and 1-1/2 inch discharge—this end suction centrifugal pump delivers reliable, smooth operation. Capable of handling flow rates up to 300 GPM and achieving total dynamic heads up to 157 feet, it is ideal for high-performance fluid handling needs.
Multiple impeller trims are available to tailor performance across various duty points. The enclosed impeller design allows for higher efficiencies and greater head capacities compared to typical semi-open configurations. For flexibility in sealing requirements, the pump supports several mechanical seal options, including the standard carbon/ceramic/Viton Type 2100.
This PumPAK version includes only the pump end and requires a compatible motor with base mount (145TC, 184TC, or 215TC frame sizes).
Typical Applications:
With ANSI 150 lb. flange connections—2-inch suction and 1-1/2 inch discharge—this end suction centrifugal pump delivers reliable, smooth operation. Capable of handling flow rates up to 300 GPM and achieving total dynamic heads up to 157 feet, it is ideal for high-performance fluid handling needs.
Multiple impeller trims are available to tailor performance across various duty points. The enclosed impeller design allows for higher efficiencies and greater head capacities compared to typical semi-open configurations. For flexibility in sealing requirements, the pump supports several mechanical seal options, including the standard carbon/ceramic/Viton Type 2100.
This PumPAK version includes only the pump end and requires a compatible motor with base mount (145TC, 184TC, or 215TC frame sizes).
Typical Applications:
- Agricultural systems
- Commercial fluid handling
- Industrial processing
- Marine operations
- OEM integration
