HTO 80 | Hot Oil Centrifugal Pump and Motor Unit | MP34498
HTO 80 | Hot Oil Centrifugal Pump and Motor Unit | MP34498
Art. No.: mp_mp34498
Art. No.: mp_mp34498
Key Specifications:
Construction Material: Ductile Iron
Impeller Diameter: 5.25 inches
Port Sizes: 1-1/2" suction x 1-1/4" discharge (NPT or F-FLG)
Motor Power: 2 HP
Voltage: 230/460V, Three Phase
Motor Type: TEFC (Totally Enclosed Fan Cooled)
Maximum Flow Rate: 85 GPM
Maximum Head: 130 feet
Lead times temporarily extended to 16 weeks.
$5,015.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

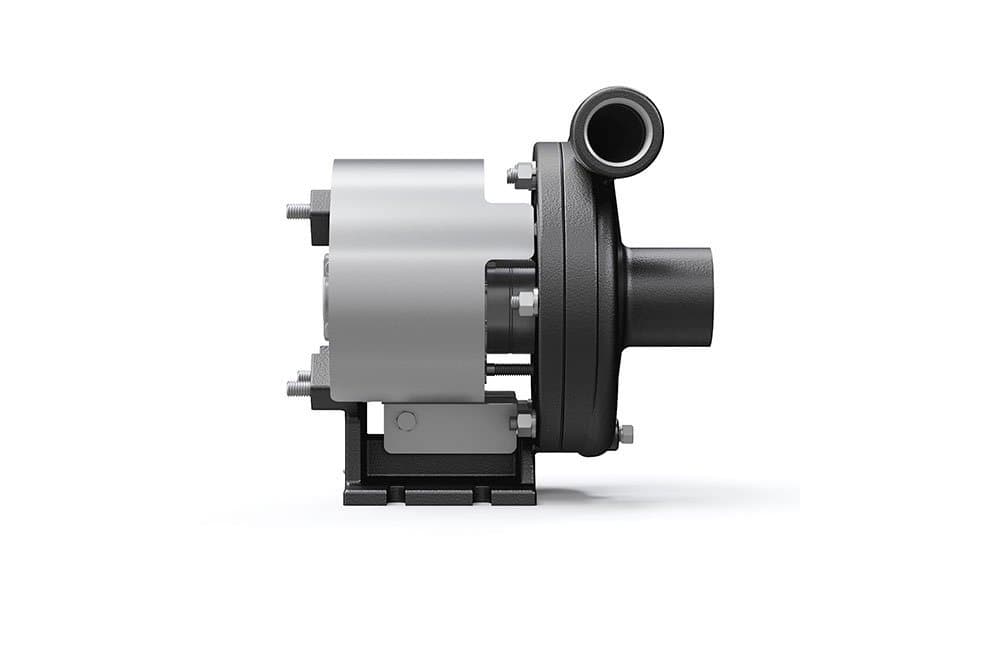

The MP 34498 is a robust and reliable high-temperature centrifugal pump system from the HTO 80 series. Constructed with durable ductile iron, it features a 5.25-inch impeller and offers flexible connection options with 1-1/2" inlet and 1-1/4" outlet ports (available in NPT or flat flange configurations).
This close-coupled pump is mounted directly to a 2 HP, 230/460V, three-phase TEFC (Totally Enclosed Fan Cooled) electric motor, designed for dependable performance in demanding industrial environments. The HTO 80 pump design allows direct coupling to standard NEMA "C" face motors, ensuring ease of installation and maintenance.
Engineered with a thermally insulated, air-cooled seal chamber, the MP 34498 excels in handling high-temperature fluids efficiently, making it a preferred solution for hot oil circulation and heat transfer systems.
Typical Applications:
Ideal for use in industrial processes and OEM equipment where high-temperature liquid handling is required.
