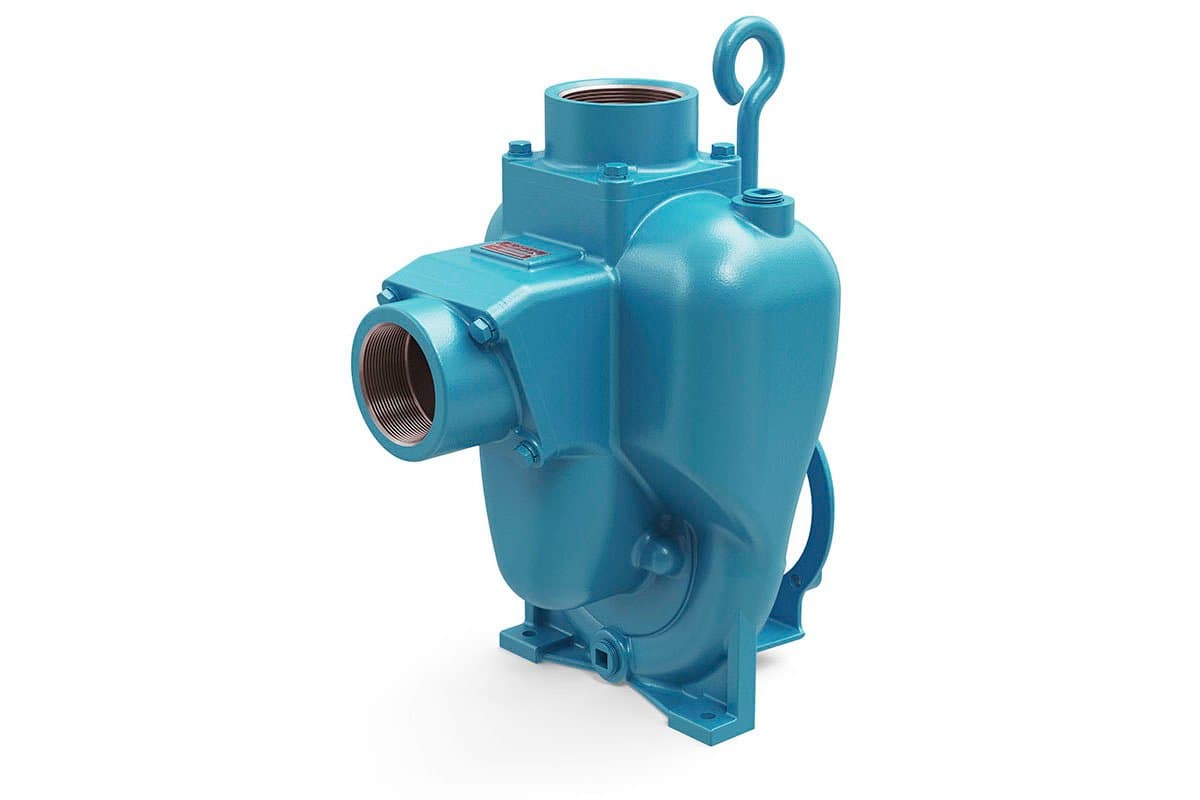

Flomax 15 PumPAK | Self Priming Centrifugal Pump | MP34792
SKU: mp34792
SKU: mp34792
Key Features:
- Pump Housing: 316 Stainless Steel
- Impeller Diameter: 6.0 inches
- Suction Port: 3" NPT ANSI 150 lb. flat flange with Viton flapper
- Discharge Port: 3" ANSI 4-bolt flat face flange (Optional NPT ANSI flange available)
- Max. Flow: 320 GPM
- Max. Head: 145'
- Max Solid: 0.625"
- Seal: Lubricated for dry-run protection
- Fasteners & Sleeve: Stainless steel components
- Wear Plate: Renewable
- Mounting Options: Compatible with 184TC and 215C frame electric motors, gas engines, or hydraulic drives; bearing pedestal option available for belt drive or T-frame motors
Lead times temporarily extended to 20 weeks.
$6,561.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 34792 is a pump end from the Flomax 15 series, engineered for mounting on motors and designed to handle demanding applications with ease. Constructed from 316 stainless steel, this self-priming centrifugal pump head is built for durability, corrosion resistance, and superior performance in harsh environments.
This model features a 6.0-inch semi-open, dynamically balanced impeller, making it suitable for various liquids, including aggressive and corrosive substances. The inlet port is a 3-inch NPT ANSI 150 lb. class flat flange with a Viton suction flapper, while the discharge side is equipped with a 3-inch ANSI 4-bolt flat face flange. For added flexibility, an optional 3-inch NPT ANSI 150 lb. discharge flange kit is available (Part No. 38647).
One of the standout features of the MP 34792 is its ability to run dry, thanks to a well-lubricated seal system that extends operational life while preventing seal damage during priming or low-flow conditions.
Applications:
This model features a 6.0-inch semi-open, dynamically balanced impeller, making it suitable for various liquids, including aggressive and corrosive substances. The inlet port is a 3-inch NPT ANSI 150 lb. class flat flange with a Viton suction flapper, while the discharge side is equipped with a 3-inch ANSI 4-bolt flat face flange. For added flexibility, an optional 3-inch NPT ANSI 150 lb. discharge flange kit is available (Part No. 38647).
One of the standout features of the MP 34792 is its ability to run dry, thanks to a well-lubricated seal system that extends operational life while preventing seal damage during priming or low-flow conditions.
Applications:
- Agriculture (fertilizer and pesticide transfer, sprayers, nurse tanks)
- Industrial processing and fluid handling
- Marine (bilge pumping, ballast transfer, washdown systems)
- OEM systems and custom equipment
