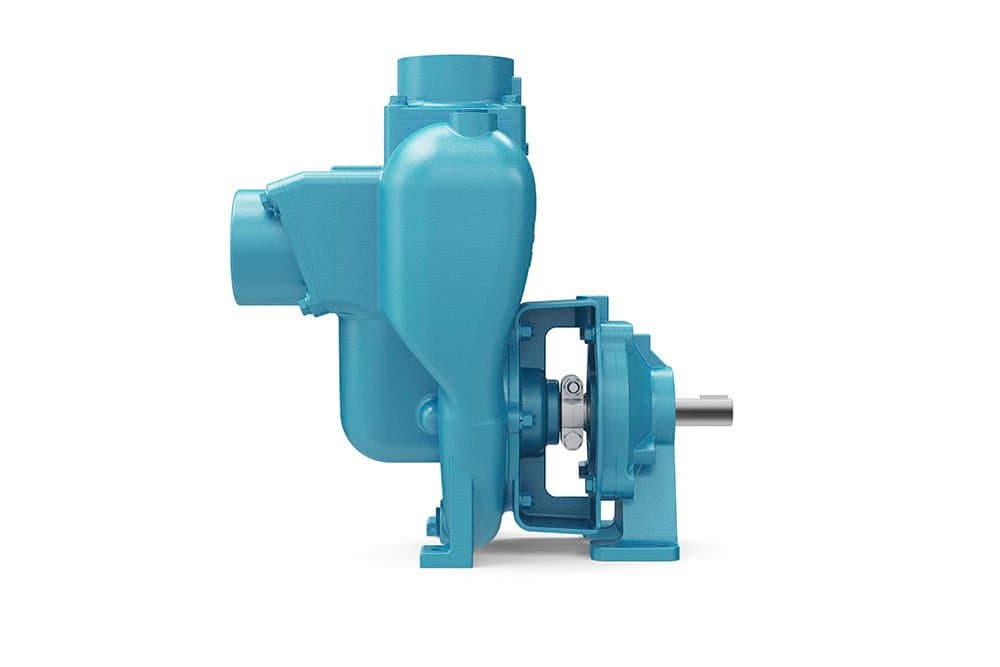

Flomax 15 | Pedestal Self Priming Centrifugal Pump | MP34793

The MP 34793 is a robust and versatile self-priming centrifugal pump designed for demanding industrial, agricultural, marine, and OEM applications. Crafted from durable 316 stainless steel, this pump is ideal for handling corrosive and aggressive fluids.

This model features a 6.0-inch diameter semi-open impeller that is dynamically balanced for smooth operation. The inlet and outlet ports are both 3" NPT ANSI 150 lb. class flat flange connections. A Viton flapper valve on the suction side enhances priming performance, and a 3" ANSI 4-bolt flange is also included for flexible installation. An optional 3" NPT discharge flange kit (part number 38647) is available for customized setups.

Engineered for reliability, the MP 34793 comes with a factory-greased seal that supports dry run conditions, protecting internal components and extending pump life. The pump end is supplied without a motor, making it ideal for integration with various drivers including 184TC and 215C frame electric motors, hydraulic motors, gas engines, or belt drives using a bearing pedestal.

Typical Applications:

• Bilge and Ballast Transfer
• Auxiliary Fire Systems
• Washdown Operations
• Fertilizer and Pesticide Handling
• Spraying and Blending Systems
• Nurse Tanks
• Bulk Fluid Transfer

The FLOMAX 15 stainless steel pump end is performance-tested and ready to be coupled with the driver of your choice. Its rugged construction and self-priming design make it a reliable choice for both routine and critical pumping tasks.
