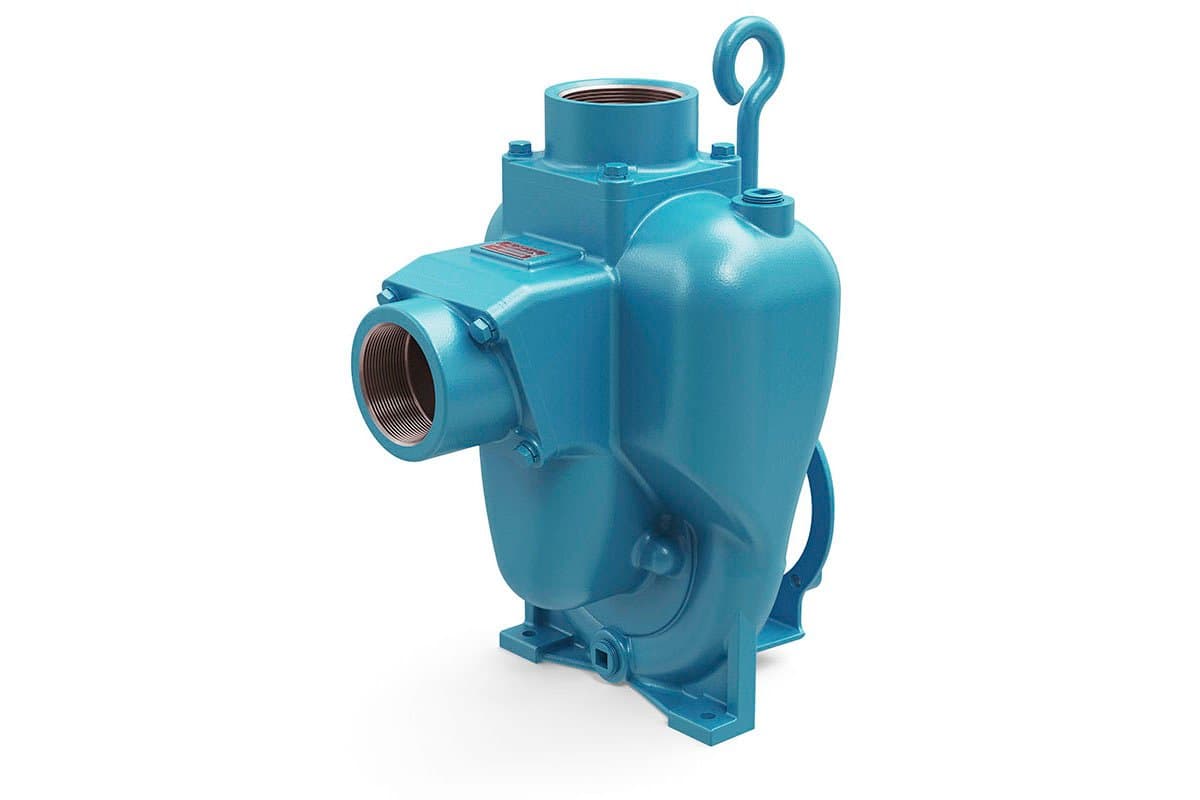

The MP 34801 is a high-performance pump end from the Flomax 15 series, constructed from durable 316 stainless steel for excellent resistance to corrosive and caustic fluids. Designed to be mounted on a motor, this self-priming centrifugal pump offers superior operational reliability and flexibility in various demanding environments.
Equipped with a 6.0-inch diameter, semi-open, dynamically balanced impeller, the MP 34801 provides efficient and consistent fluid movement. The suction port features a 3-inch NPT ANSI 150 lb. class flat flange with a Viton flapper for dependable sealing, while the discharge side is configured with a 3-inch ANSI 4-bolt flange. An optional 3-inch NPT ANSI 150 lb. discharge flange kit (Part No. 38647) is also available for enhanced versatility.
This pump end includes a pre-lubricated mechanical seal, allowing for short dry-run capabilities, minimizing downtime, and protecting internal components from wear. The stainless steel construction extends the lifespan of the pump, even in applications involving aggressive media.
Standard Features:
- Renewable wear plate
- Stainless steel shaft sleeve and fasteners
- Viton flapper for effective sealing
- SAE 4-bolt discharge flange
- Fully assembled and run-tested pump end
Mounting Options:
This pump end is compatible with various drivers, including hydraulic motors, 184TC and 215TC frame motors, and gas engines. A bearing pedestal is also available for installations requiring T-frame motors or belt drives.
Ideal for a wide range of industries, including:
- Agriculture (fertilizer/pesticide transfer, sprayers, nurse tanks)
- Industrial and OEM systems
- Marine applications (bilge, ballast, and washdown pumps)
- Bulk fluid transfer and blending operations
