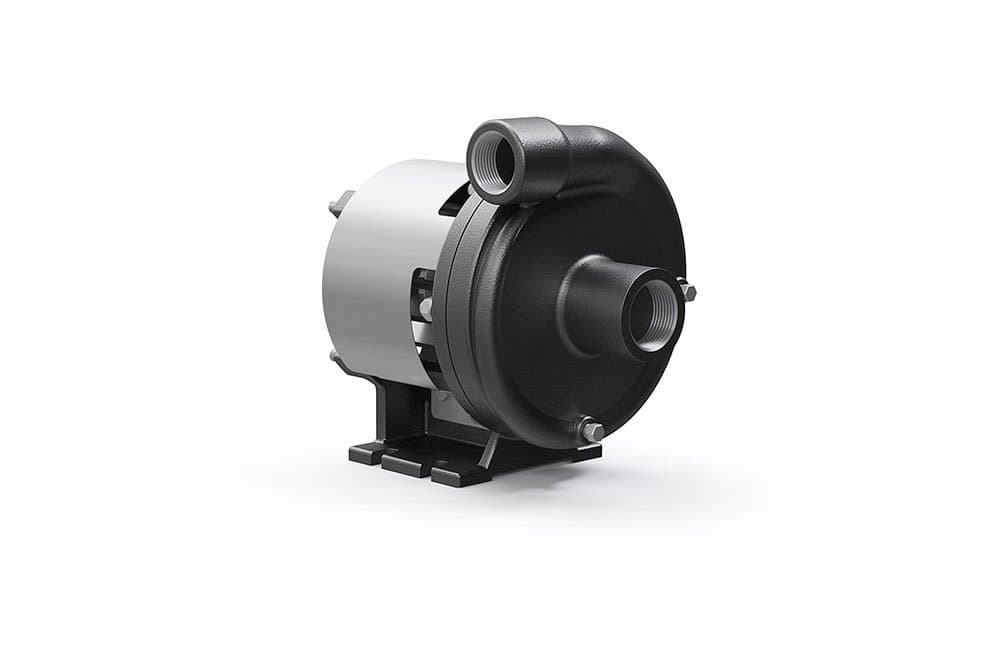

HTO 80 | Hot Oil Centrifugal Pump and Motor Unit | MP34810
HTO 80 | Hot Oil Centrifugal Pump and Motor Unit | MP34810
Art. No.: mp_mp34810
Art. No.: mp_mp34810
Specifications:
Construction: Ductile Iron
Impeller Diameter: 5.25 inches
Port Sizes: 1-1/2" Inlet, 1-1/4" Outlet (NPT or Flat Flange)
Motor: 3 HP, 230/460V, 3-Phase
Max Flow Rate: 85 GPM
Max Head: 130 ft
Lead times temporarily extended to 16 weeks.
$4,454.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The MP 34810 is a robust and high-performance centrifugal pump designed specifically for hot oil transfer applications. Constructed from durable ductile iron, this model belongs to the HTO 80 Series and is built to handle high-temperature fluids with reliability and efficiency.
This unit features a 5.25-inch diameter impeller and comes with 1-1/2" suction and 1-1/4" discharge ports, available in either NPT or flat flange configurations to accommodate different piping systems. The pump is directly coupled to a 3 HP, three-phase motor (230/460V), utilizing a close-coupled design with a standard NEMA "C" face for easy integration and compact installation.
Engineered for thermal endurance, the MP 34810 includes an insulated, air-cooled seal chamber that ensures stable operation even under elevated temperatures. With a maximum flow rate of 85 gallons per minute and a maximum head of 130 feet, this pump delivers powerful and efficient fluid transfer for demanding industrial applications.
Typical Uses:
Ideal for industrial systems and OEM applications that require consistent hot oil circulation under high thermal loads.
