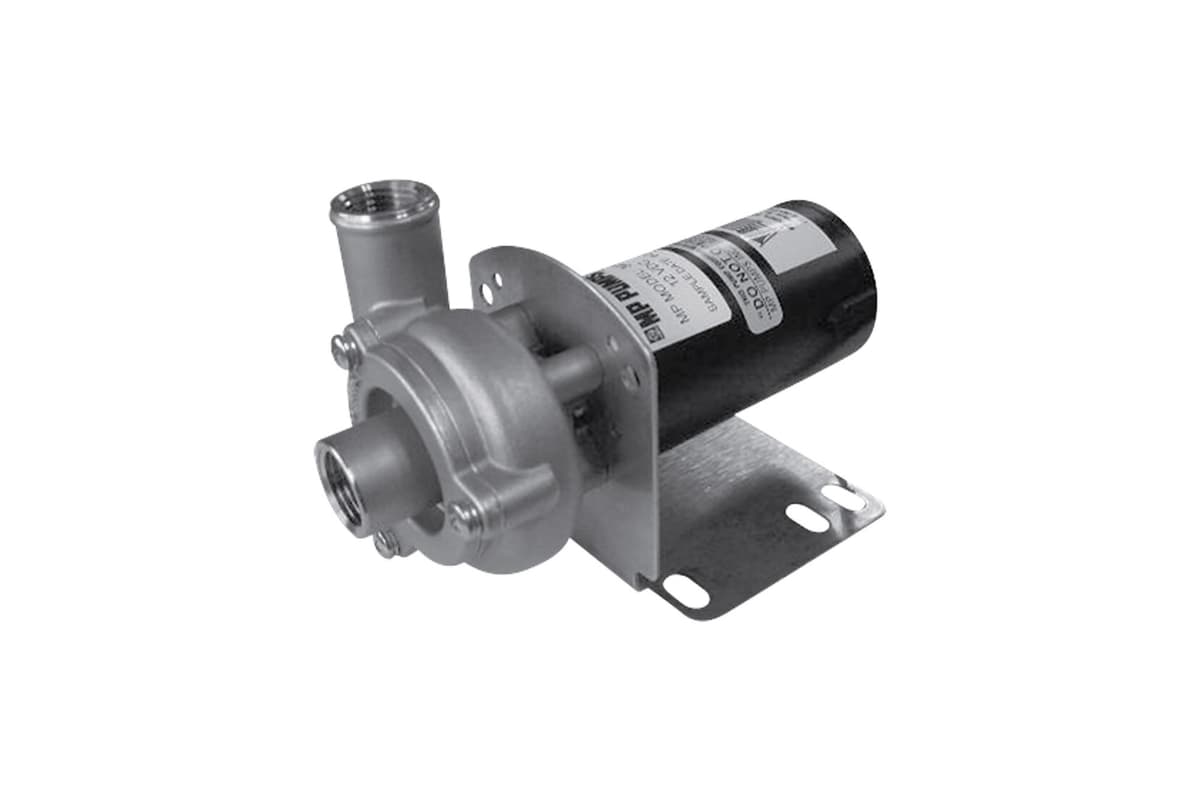

CFX 50 | End Suction Centrifugal Circulator Pump and Permanent Magnet Motor Unit | MP35098
SKU: mp35098
SKU: mp35098
Key Features:
- Pump Material: 316 Stainless Steel for exceptional corrosion resistance
- Port Configuration: 1/2" NPT threaded inlet and outlet
- Motor: 24V DC, 3600 RPM, high-efficiency permanent magnet motor
- Seal Type: Carbon/Ceramic/Viton bellows shaft seal
- Max Flow Rate: 15 GPM
- Max Head: 14 feet
- Design: Close-coupled, end suction configuration
- Optional: Marine ignition-protected motors available
- Mounting Flexibility: Rotatable in 90° increments for versatile installation
Lead times temporarily extended to 20 weeks.
$489.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 35098 is a compact, high-efficiency centrifugal circulator pump from the CFX 50 series, engineered for demanding environments. Constructed entirely from 316 stainless steel, this end suction pump is designed to deliver reliable performance while resisting corrosion when handling aggressive chemicals and fluids.
This unit features a permanent magnet 24V DC motor operating at 3600 RPM, closely coupled with the pump for a space-saving design. Both the inlet and outlet ports are 1/2 inch NPT threaded, ensuring easy integration into existing systems. A carbon/ceramic/Viton bellows shaft seal comes standard, providing dependable sealing for a variety of applications.
The MP 35098 pump supports a maximum flow rate of 15 gallons per minute and a maximum head of 14 feet, making it suitable for continuous-duty applications across a wide range of industries including agriculture, marine, transportation, OEM manufacturing, industrial processing, and commercial systems.
This model is ideal for use in:
This unit features a permanent magnet 24V DC motor operating at 3600 RPM, closely coupled with the pump for a space-saving design. Both the inlet and outlet ports are 1/2 inch NPT threaded, ensuring easy integration into existing systems. A carbon/ceramic/Viton bellows shaft seal comes standard, providing dependable sealing for a variety of applications.
The MP 35098 pump supports a maximum flow rate of 15 gallons per minute and a maximum head of 14 feet, making it suitable for continuous-duty applications across a wide range of industries including agriculture, marine, transportation, OEM manufacturing, industrial processing, and commercial systems.
This model is ideal for use in:
- Agricultural systems
- Commercial equipment
- Industrial processes
- Marine environments
- OEM integrations
- Transportation applications
