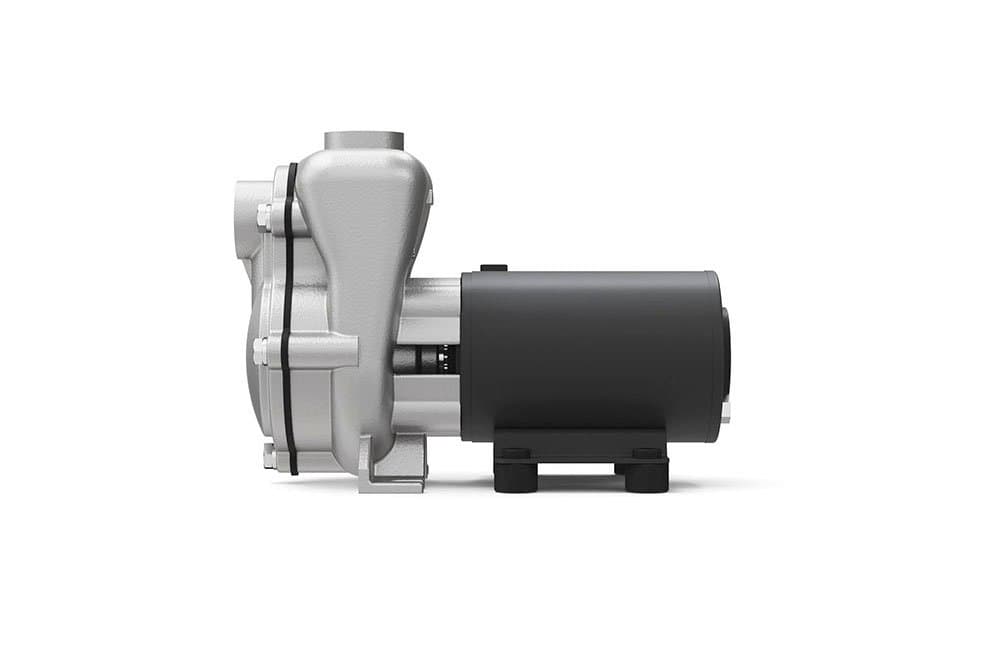

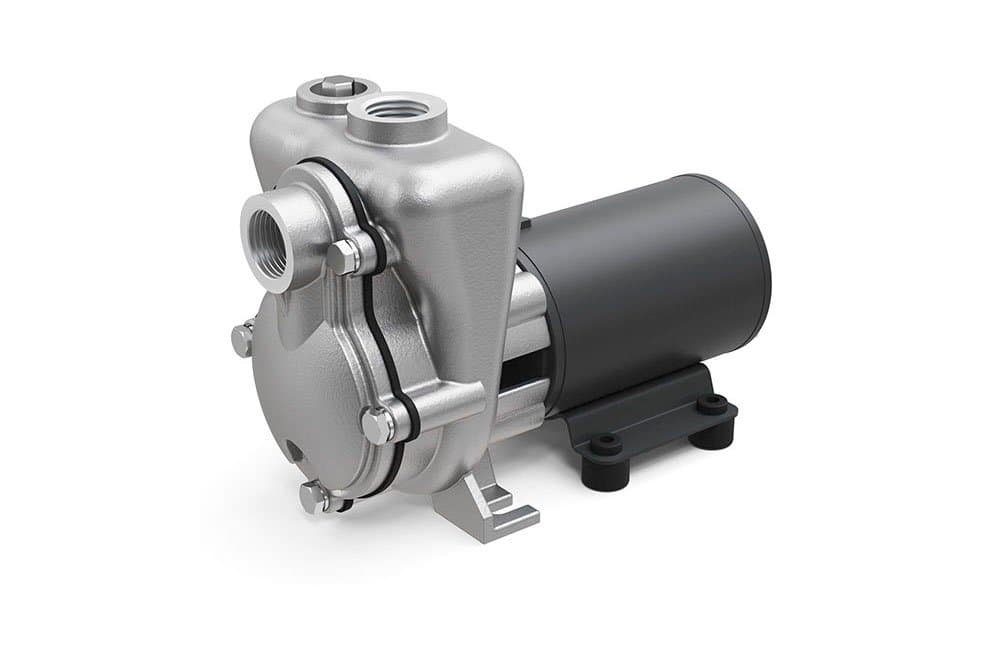

FMX75 | Self Priming Centrifugal Pump and Permanent Magnet Motor Unit | MP35322
SKU: mp35322
SKU: mp35322
Key Specifications:
- Pump Material: 316 Stainless Steel
- Port Size: 3/4" NPT (Inlet & Discharge)
- Motor: 12 Volt DC
- Max Flow Rate: 21 GPM
- Max Head: 23 feet
- Suction Lift: Up to 12 feet
- Seal Type: Carbon/Ceramic/Viton bellows
- Motor Protection: Optional ISO 8846 marine ignition protected models available
Lead times temporarily extended to 26 weeks.
$888.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 35322 is a high-performance self-priming centrifugal pump, expertly engineered for demanding applications. This unit combines the robust FMX 75 series pump with a powerful 12V DC motor in a compact, close-coupled design. Featuring 3/4-inch NPT threaded ports, it delivers consistent reliability across a wide range of environments.
Constructed entirely from premium 316 stainless steel, the MP 35322 offers exceptional resistance to corrosion and is ideal for handling aggressive or hazardous fluids. A carbon/ceramic/Viton bellows shaft seal comes standard, ensuring durability and leak protection under tough conditions.
Designed to perform in settings where suction lift is required, this pump can achieve a lift height of up to 12 feet at 3450 RPM. Its versatility makes it well-suited for marine, industrial, agricultural, commercial, and OEM applications.
Applications:
Perfect for marine systems, agricultural irrigation, commercial installations, industrial fluid transfer, and OEM integrations, the MP 35322 delivers performance and durability where it matters most.
Constructed entirely from premium 316 stainless steel, the MP 35322 offers exceptional resistance to corrosion and is ideal for handling aggressive or hazardous fluids. A carbon/ceramic/Viton bellows shaft seal comes standard, ensuring durability and leak protection under tough conditions.
Designed to perform in settings where suction lift is required, this pump can achieve a lift height of up to 12 feet at 3450 RPM. Its versatility makes it well-suited for marine, industrial, agricultural, commercial, and OEM applications.
Applications:
Perfect for marine systems, agricultural irrigation, commercial installations, industrial fluid transfer, and OEM integrations, the MP 35322 delivers performance and durability where it matters most.
