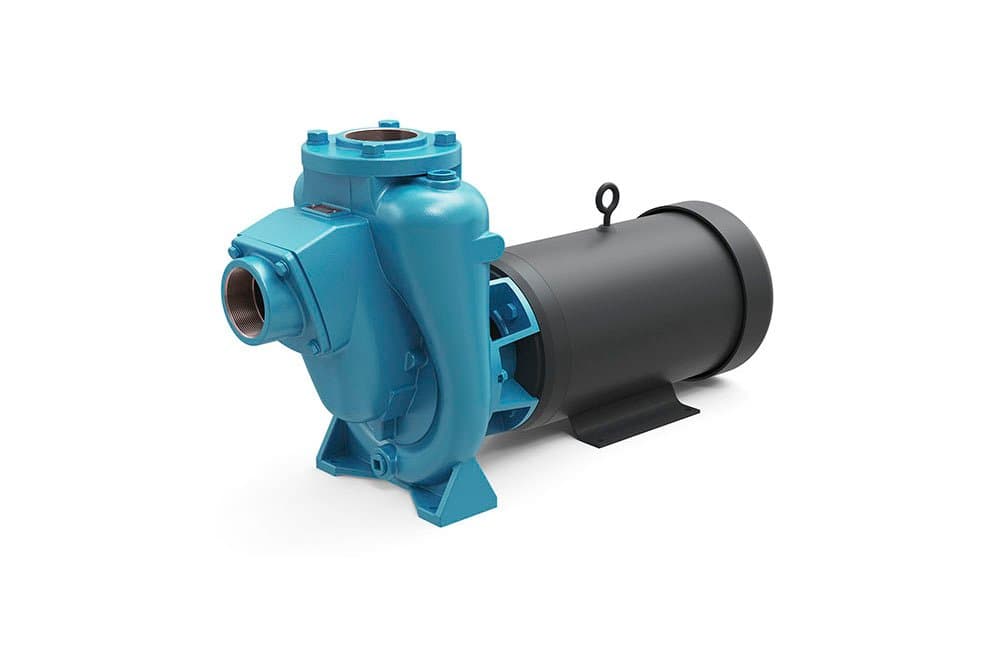

Flomax 30 | Self Priming Centrifugal Pump and Motor Unit | MP35387
SKU: mp35387
SKU: mp35387
Key Specifications:
- Pump Construction: Durable Cast Iron
- Impeller Diameter: 6.75 inches
- Seal Type: T-21 Mechanical Seal
- Inlet/Outlet Ports: 3" x 3" NPT
- Max Flow Rate: 480 GPM
- Max Head: 190 feet
- Solids Handling: Up to 0.6 inches
- Motor: 25 HP, 230/460V, Three-Phase
Lead times temporarily extended to 20 weeks.
$13,187.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.Engineered for high-performance and reliability, the MP 35387 is part of the trusted FLOMAX 30 series—a cast iron self-priming centrifugal pump designed for demanding industrial, agricultural, marine, and OEM applications. This unit features a 6.75-inch diameter semi-open impeller, precision-balanced for smooth operation, and is directly coupled to a robust 25 horsepower, 230/460V three-phase motor.
With 3" NPT suction and discharge ports, this pump delivers up to 480 gallons per minute and achieves a maximum head of 190 feet. Its self-priming capability allows it to lift fluids from depths of up to 25 feet, aided by a built-in flapper valve that maintains prime and promotes efficient operation.
Built to last, the MP 35387 includes corrosion-resistant stainless steel fasteners, a renewable wear plate for extended service life, and a stainless steel drive sleeve. It utilizes a T-21 single convolution mechanical seal for reliable sealing under tough conditions. The pump end (PumPAK) is factory-tested and ready for use with motors ranging from 182TC to 256TC frames, as well as gas engine drives. A bearing pedestal option is also available for belt-driven or T-frame motor applications.
Common Applications:
With 3" NPT suction and discharge ports, this pump delivers up to 480 gallons per minute and achieves a maximum head of 190 feet. Its self-priming capability allows it to lift fluids from depths of up to 25 feet, aided by a built-in flapper valve that maintains prime and promotes efficient operation.
Built to last, the MP 35387 includes corrosion-resistant stainless steel fasteners, a renewable wear plate for extended service life, and a stainless steel drive sleeve. It utilizes a T-21 single convolution mechanical seal for reliable sealing under tough conditions. The pump end (PumPAK) is factory-tested and ready for use with motors ranging from 182TC to 256TC frames, as well as gas engine drives. A bearing pedestal option is also available for belt-driven or T-frame motor applications.
Common Applications:
- Bilge and Ballast Transfer
- Agricultural Sprayers and Nurse Tanks
- Industrial Washdown Systems
- Fire Pump Support
- Fertilizer and Pesticide Distribution
- OEM and Custom Equipment Solutions
