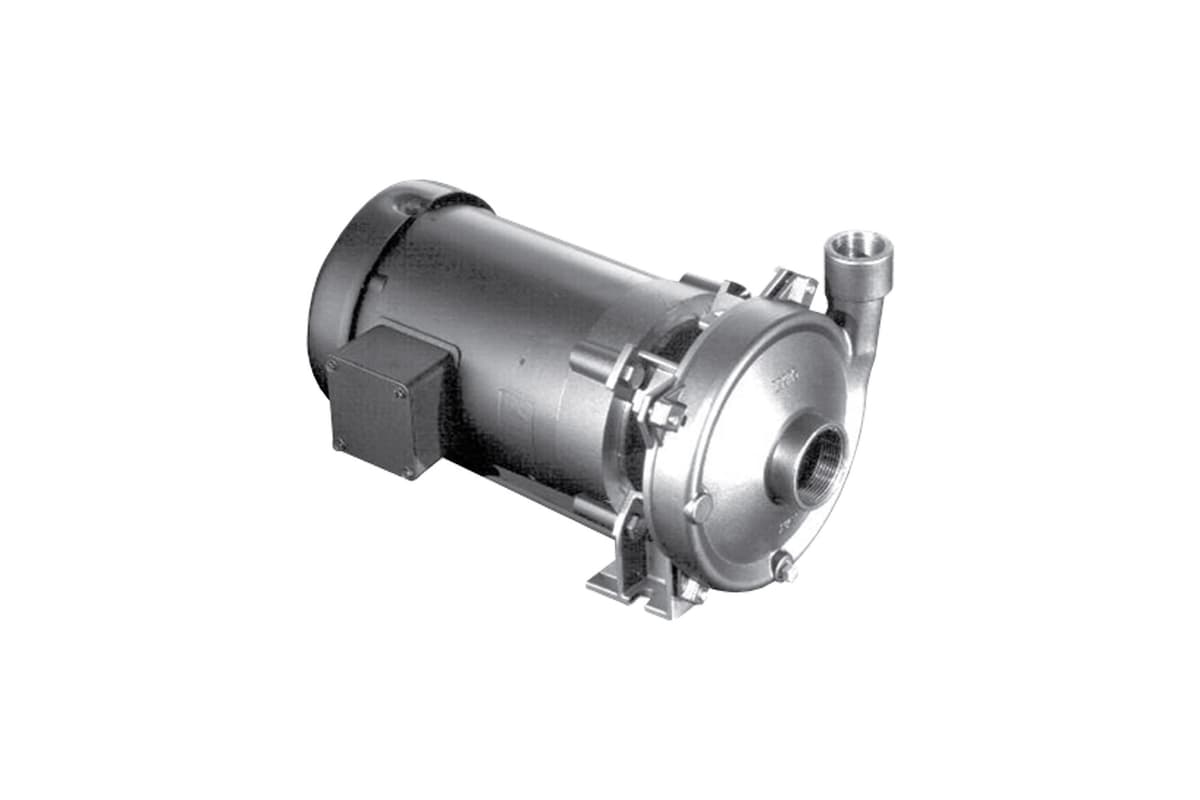

The MP 35829 is a premium-quality stainless steel pump end from the ChemFlo 3 series, engineered for demanding chemical handling applications. Designed for close coupling to electric or hydraulic motors, this PumPAK version is supplied without a motor, making it a versatile choice for custom installations.

Featuring a robust 3.75-inch semi-open impeller and durable T-2 double convolution mechanical seal, this unit supports maximum flow and efficiency. The semi-open impeller design also facilitates the movement of larger solids compared to similarly sized enclosed impellers.

Constructed with precision investment-cast 316 stainless steel and fitted with a corrosion-resistant CA 958 nickel aluminum bronze drive sleeve, the MP 35829 offers enhanced resistance to aggressive chemicals and extended service life. The 2-inch inlet and 1-1/2 inch NPT discharge port ensure smooth operation in a range of settings.

This pump end is compatible with various motor configurations, including close-coupled or pedestal-mounted setups. Optional sealing materials are available to meet specific application needs beyond the standard carbon/ceramic/Viton Type 2100 mechanical seal.

Common Uses:
Ideal for agricultural, commercial, industrial, marine, and OEM systems, the MP 35829 combines durable construction with versatile mounting options, making it a reliable solution for fluid transfer in tough environments.

Note: When pairing with a 145TC frame, ensure the electric motor includes a mounting base.
