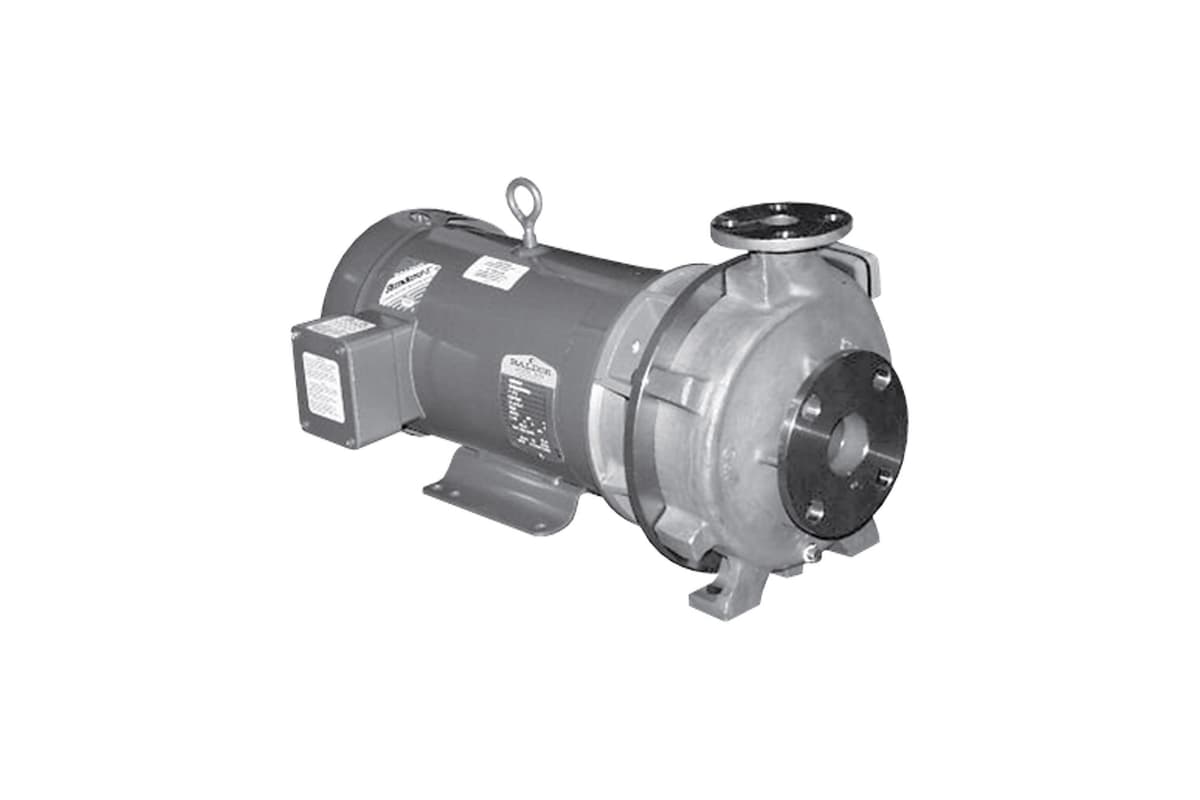

Chemflo 7 PumPAK | Centrifugal Chemical Pump | MP35970
SKU: mp35970
SKU: mp35970
Key Features:
- Material: 316 Stainless Steel
- Impeller Diameter: 7.95 inches
- Seal Type: Silicon Carbide Mechanical Seal
- Connections: 2" Inlet x 1" Discharge, ANSI 150# Flange
- Max Flow Rate: Up to 200 GPM
- Max Head: Up to 280 feet
- Configuration: Pump end only (motor not included)
- Mounting: Requires a base-mounted electric motor (145TC, 184TC, 215TC, or 256TC)
Lead times temporarily extended to 20 weeks.
$4,818.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 35970 is a high-performance pump end from the ChemFlo® 7 series, engineered for demanding chemical transfer applications. Constructed from durable 316 stainless steel, this corrosion-resistant pump end is designed to be mounted on a compatible motor, offering a dependable solution without the motor included (PumPAK configuration).
Featuring a precision-engineered 7.95-inch enclosed impeller, the MP 35970 is capable of delivering flows up to 200 GPM and achieving total heads of up to 280 feet. This enclosed impeller design enhances both head pressure and efficiency compared to standard semi-open impellers.
The unit is equipped with a rugged silicon carbide mechanical seal and ANSI 150 lb. flange connections—2-inch inlet and 1-inch discharge—ensuring robust performance and compatibility with industrial piping standards.
Whether used in agriculture, industrial processing, marine operations, or OEM systems, the MP 35970 offers reliable performance across a wide range of fluid handling applications. Multiple impeller trims and mechanical seal options are available to match specific system requirements.
Applications: Ideal for use in agricultural, commercial, industrial, marine, and OEM systems where high flow and head performance are required from a corrosion-resistant, stainless steel pump.
Featuring a precision-engineered 7.95-inch enclosed impeller, the MP 35970 is capable of delivering flows up to 200 GPM and achieving total heads of up to 280 feet. This enclosed impeller design enhances both head pressure and efficiency compared to standard semi-open impellers.
The unit is equipped with a rugged silicon carbide mechanical seal and ANSI 150 lb. flange connections—2-inch inlet and 1-inch discharge—ensuring robust performance and compatibility with industrial piping standards.
Whether used in agriculture, industrial processing, marine operations, or OEM systems, the MP 35970 offers reliable performance across a wide range of fluid handling applications. Multiple impeller trims and mechanical seal options are available to match specific system requirements.
Applications: Ideal for use in agricultural, commercial, industrial, marine, and OEM systems where high flow and head performance are required from a corrosion-resistant, stainless steel pump.
