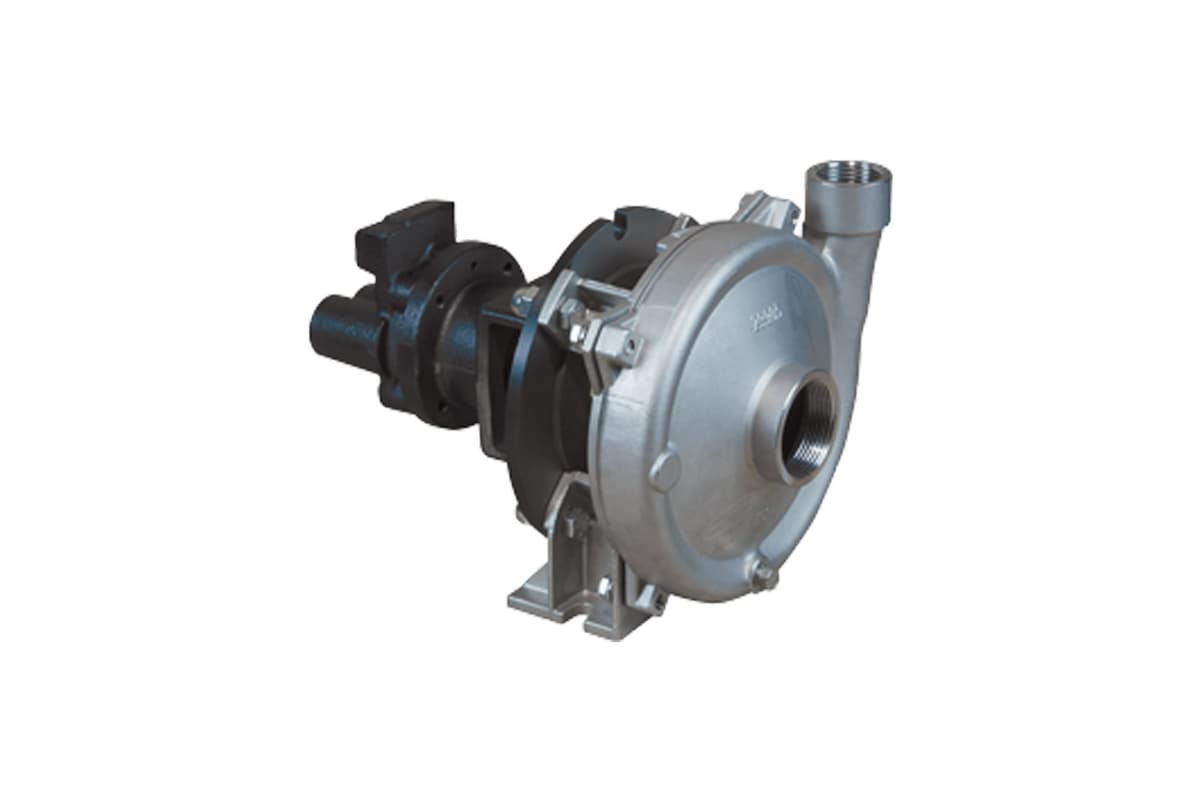

Chemflo 1 | Centrifugal Chemical Pump with High Speed Hydraulic Drive Pump | MP36038
Chemflo 1 | Centrifugal Chemical Pump with High Speed Hydraulic Drive Pump | MP36038
Art. No.: mp_mp36038
Art. No.: mp_mp36038
Key Features:
Construction: Stainless Steel body for superior chemical resistance
Impeller Size: 6.0 inches in diameter
Connections: 1-1/2" inlet x 1" discharge (NPT)
Max Flow Rate: Up to 100 GPM
Max Head: Up to 350 feet
Seal Options: Standard with type 2100 (carbon/ceramic/Viton), with additional options available
Motor Flow Control: Supports precise adjustment of flow via hydraulic motor control
Lead times temporarily extended to 16 weeks.
$3,941.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The MP 36005 is a high-performance hydraulic pump end from the ChemFlo 1 series, expertly crafted from durable stainless steel. This model features a 6.0-inch diameter impeller and 1-1/2" x 1" NPT inlet and discharge ports. Designed for demanding chemical transfer applications, this version is a pump end only—motor not included—ideal for customers needing a replacement or custom drive configuration.
Engineered for durability and efficiency, the ChemFlo 1 hydraulic centrifugal pump incorporates a semi-open impeller, enabling the efficient passage of larger solids, while also maintaining high performance standards through a fully enclosed impeller design. The MP 36005 supports various mechanical seal configurations, with the standard option being a type 2100 carbon/ceramic/Viton seal.
Available in both motorized and PumPAK (motorless) versions, the ChemFlo 1 range offers flexible compatibility with 56C and 145TC motors. If using a 145TC motor, ensure it includes a mounting base. Additional drive options are available for enhanced adaptability across systems.
Common Uses: Ideal for use in agricultural, commercial, industrial, marine, and OEM environments where reliable, high-capacity fluid handling is critical.
