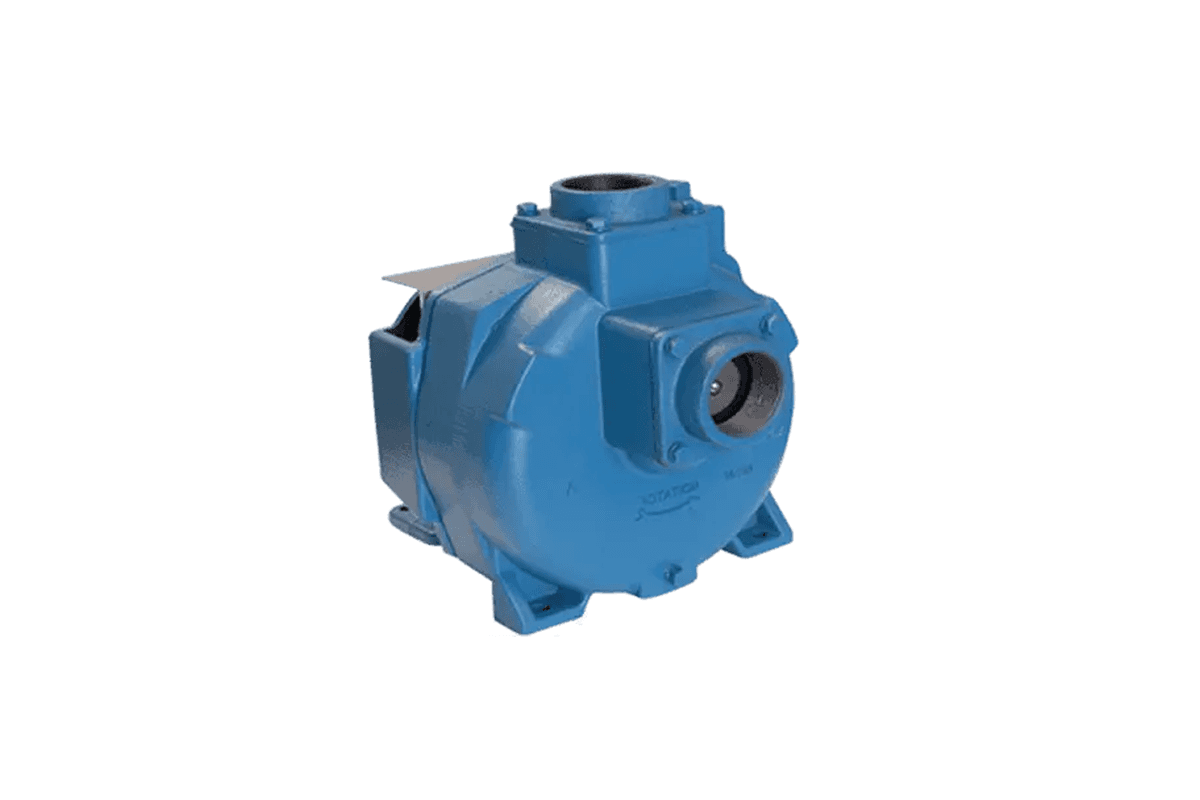

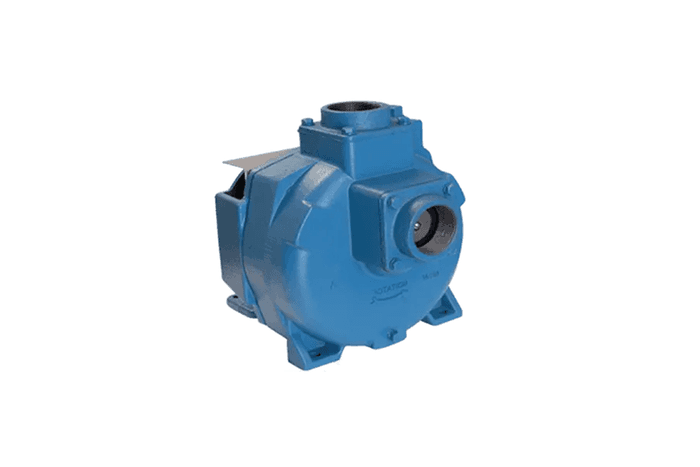

The MP 36094 from the HHLF series is a durable, high-performance self-priming centrifugal pump end designed for motor mounting. Constructed with a cast iron housing and equipped with a 6.5-inch bronze impeller, this unit delivers reliable operation in high-pressure environments. The 1.00-inch shaft and elevated suction and discharge ports enhance fluid handling and priming performance, reducing the risk of priming loss and ensuring consistent operation.

Built to meet stringent USCG standards for auxiliary fire control and ABS type approval, this pump end is engineered for demanding applications across agricultural, commercial, industrial, marine, and OEM sectors. The high suction centerline and advanced impeller design allow for a suction lift of up to 25 feet, making it ideal for operations where rapid and reliable fluid movement is critical.

The pump’s volute and impeller components are removable and can be easily replaced, simplifying maintenance and extending service life. This pump end is designed to be close-coupled to NEMA C-face motors or mounted on gasoline or diesel engines with 1-inch keyed shafts. Pedestal-mounted versions are also available.

Applications:
Ideal for use in agriculture, marine operations, commercial systems, industrial environments, and OEM integrations, the MP 36094 Pump End delivers powerful, self-priming performance with minimal maintenance requirements.
