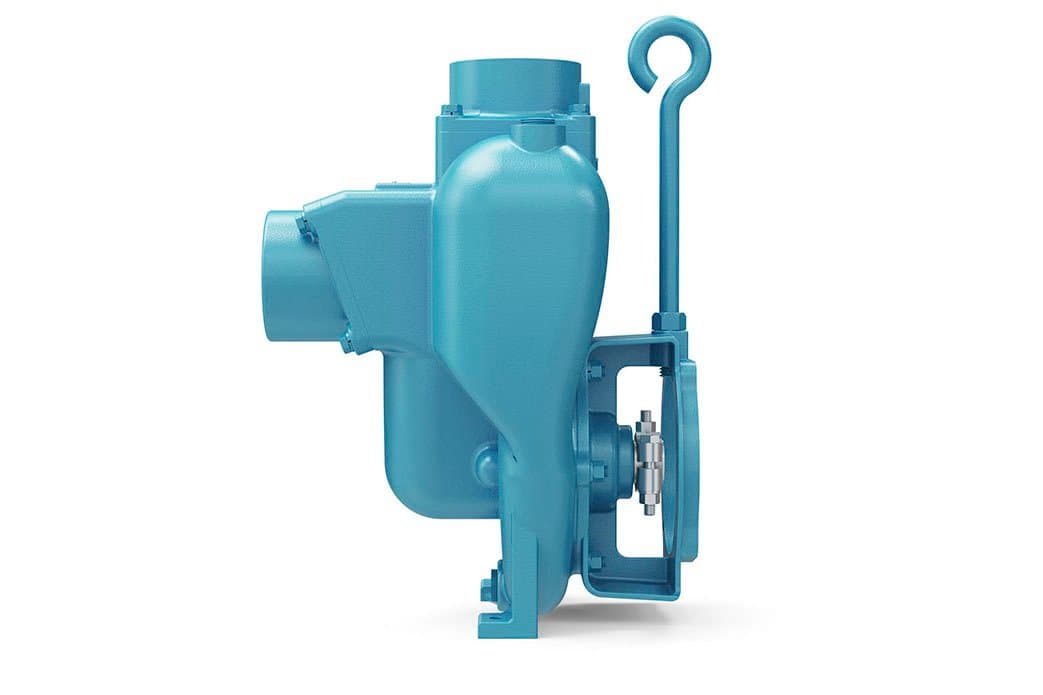

Flomax 15 PumPAK | Self Priming Centrifugal Pump | MP36220
SKU: mp36220
SKU: mp36220
Key Features:
- Pump Body: Cast Iron
- Impeller: Stainless Steel Impeller, 5.5 inch Diameter
- Port Size: Inlet Port is 3 inch, Discharge Port is 3 inch NPT.
- Maximum Flow: 320 GPM
- Maximum Head: 145'
- Max Solid: 0.625"
Lead times temporarily extended to 20 weeks.
$3,217.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 36220 is a high-performance pump end from the FLOMAX 15 series, designed for reliable fluid handling across a range of demanding applications. This unit includes the pump end only—ready for coupling with motors, hydraulic drives, or gas engines. It features a rugged cast iron body and a durable 5.5-inch diameter stainless steel impeller, ensuring excellent resistance to corrosion and wear.
Engineered for flexibility, the MP 36220 is compatible with 184TC and 215TC frame motors, hydraulic motors, and gasoline engines. For applications requiring belt drive or T-frame motors, a bearing pedestal is also available.
This pump end is self-priming and includes a built-in flapper valve, which helps maintain liquid in the suction line for consistent operation. Every PumPAK assembly is factory-tested and fully assembled, making installation simple and dependable.
Typical Uses:
This pump is ideal for a broad range of environments including agriculture, marine, industrial, and OEM applications.
Common uses include:
Engineered for flexibility, the MP 36220 is compatible with 184TC and 215TC frame motors, hydraulic motors, and gasoline engines. For applications requiring belt drive or T-frame motors, a bearing pedestal is also available.
This pump end is self-priming and includes a built-in flapper valve, which helps maintain liquid in the suction line for consistent operation. Every PumPAK assembly is factory-tested and fully assembled, making installation simple and dependable.
Typical Uses:
This pump is ideal for a broad range of environments including agriculture, marine, industrial, and OEM applications.
Common uses include:
- Bilge and ballast water pumping
- Auxiliary fire systems
- Washdown and irrigation systems
- Chemical and fertilizer transfer
- Sprayers, blending systems, and nurse tanks
- Bulk fluid transfer and more
