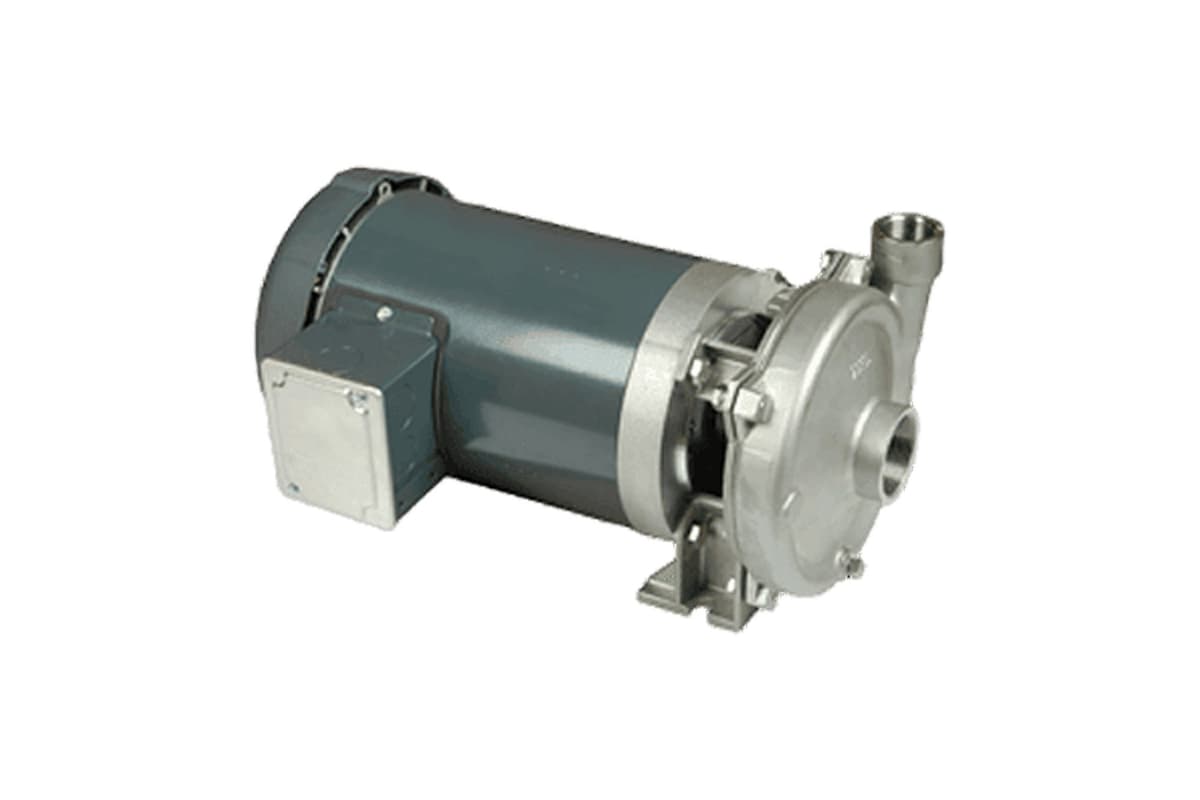

The MP 36429 is a high-performance chemical pump from the ChemFlo® 1 Series, built for durability and efficiency in demanding environments. Constructed from corrosion-resistant 316 stainless steel, this centrifugal pump is engineered to handle aggressive chemicals and toxic fluids with ease.

Equipped with a 6.0-inch diameter semi-open impeller, the unit supports improved flow performance and can accommodate larger solid particles, making it ideal for various challenging applications. The close-coupled design integrates seamlessly with a 3-horsepower, explosion-proof motor (XP rated), operating on 230/460 volts in a three-phase configuration.

This model features 1-1/2" inlet and 1" NPT discharge ports, ensuring reliable fluid transfer. With a maximum flow rate of 100 GPM and a total head up to 145 feet, it delivers consistent performance even under demanding conditions.

For added versatility, multiple mechanical seal options are available, including the standard Type 2100 carbon/ceramic/Viton seal. The ChemFlo® 1 line offers both pump-and-motor units as well as PumPAK (pump-only) options, with compatibility for 56C and 145TC motor frames. When pairing with a 145TC motor, a motor base is required.

The ChemFlo® range is further expanded with the CFB 1 series, featuring nickel-aluminum-bronze construction for enhanced corrosion resistance in marine and saltwater applications.

Typical Applications:
Ideal for use in agriculture, industrial processing, marine systems, OEM equipment, and commercial operations.
