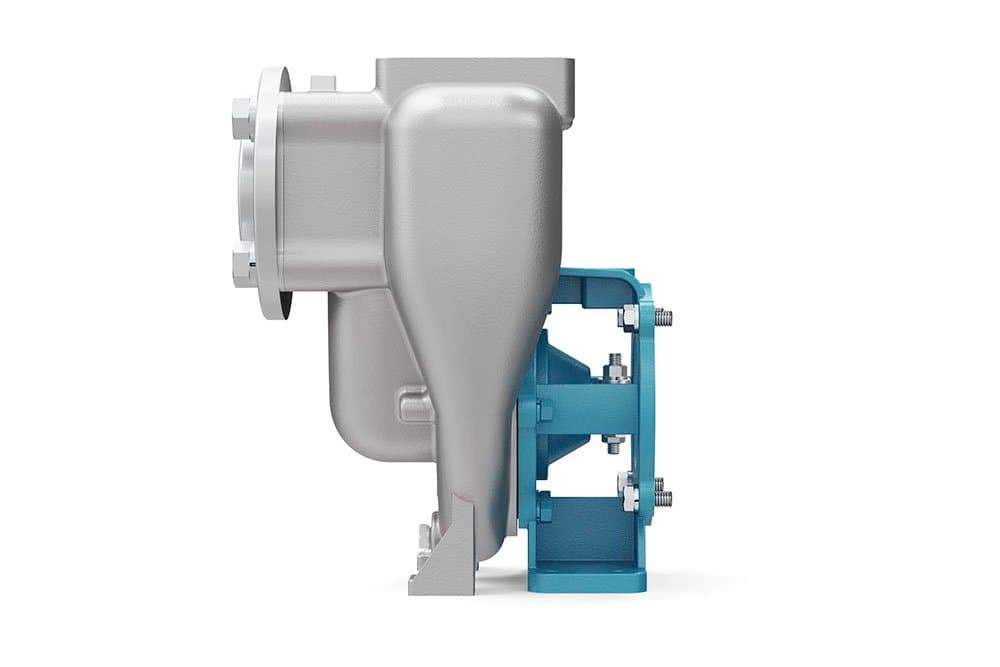

The MP 37147 is a robust and compact pump-end solution from the Flomax 8 series, engineered for high performance in a wide range of industrial, agricultural, OEM, and marine applications. Constructed from durable 316 stainless steel, this self-priming centrifugal pump end is designed for direct mounting to a motor and does not include a motor in the package.
Equipped with a 5.0-inch semi-open impeller and featuring a T/21 single convolution mechanical seal, the MP 37147 offers reliable operation even in demanding environments. The 2" NPT suction and discharge ports, flat flange inlet, and SAE 4-bolt flat face discharge connection provide flexible integration into various systems.
This pump end includes advanced features such as:
- A stainless steel shaft sleeve and fasteners for enhanced corrosion resistance
- A renewable 316 stainless steel wear plate to extend operational life
- A Viton flapper for improved sealing
- Compatibility with multiple drive options including hydraulic motors, 56C and 145TC frame motors, and gasoline engines
The pump's patent-pending design places the barrier fluid accumulator directly on the pump body, simplifying system layout, reducing overall costs, and increasing reliability.
Optional upgrades include a high-flow 5-blade impeller and seal options suited for handling abrasive or corrosive fluids.
Typical applications include bilge pumping, auxiliary fire systems, chemical spraying, fertilizer and pesticide transfer, ballast operations, washdown systems, and general fluid transfer tasks.
