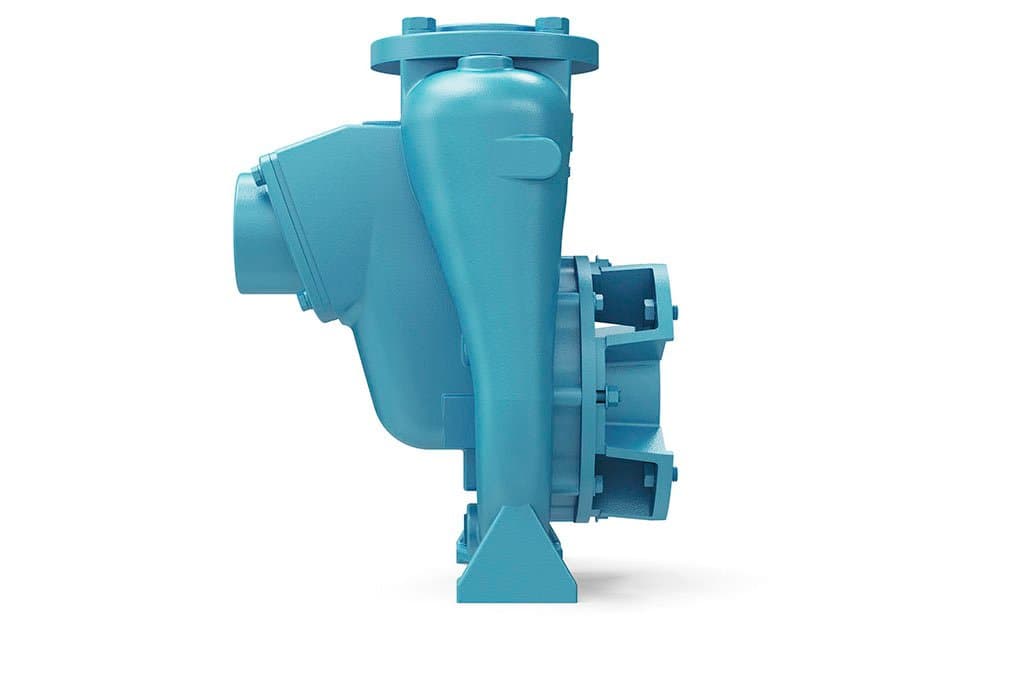

Flomax 30 | Pedestal Self Priming Centrifugal Pump | MP38294
SKU: mp38294
SKU: mp38294
Key Specifications:
- Material: 316 Stainless Steel
- Impeller Diameter: 7.0 inches
- Inlet/Outlet Size: 3" NPT suction x 3" NPT with 150 lb. flat flange discharge
- Mounting Style: Pedestal
- Maximum Flow Rate: 480 GPM
- Maximum Head: 190 ft
- Solids Handling Capacity: Up to 0.6 inches
Lead times temporarily extended to 20 weeks.
$9,205.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The MP 38294 is a high-performance pump end from the FLOMAX 30 series, designed for demanding fluid transfer tasks. Crafted from durable 316 stainless steel, this self-priming centrifugal pump offers superior resistance to corrosion and chemical degradation, making it ideal for handling aggressive or corrosive liquids across a variety of sectors, including agriculture, industry, and marine environments.
This model features a 7.0-inch diameter impeller and is built with 3" NPT suction and discharge ports. The discharge port includes a 150 lb. class flat flange for secure and reliable connection.
Please note: this is a bare shaft pump end only, intended as a direct replacement or for integration with an existing motor or drive system.
Engineered with a standard Viton flapper and a convenient priming chamber fill plug, the FLOMAX 30 ensures quick and efficient priming. Its flexible design allows compatibility with standard NEMA “C” frame electric motors, gasoline or diesel engines, and MP’s pedestal mount configuration. The fully assembled PUMPAK allows for quick installation, minimizing downtime.
Typical Applications:
This model features a 7.0-inch diameter impeller and is built with 3" NPT suction and discharge ports. The discharge port includes a 150 lb. class flat flange for secure and reliable connection.
Please note: this is a bare shaft pump end only, intended as a direct replacement or for integration with an existing motor or drive system.
Engineered with a standard Viton flapper and a convenient priming chamber fill plug, the FLOMAX 30 ensures quick and efficient priming. Its flexible design allows compatibility with standard NEMA “C” frame electric motors, gasoline or diesel engines, and MP’s pedestal mount configuration. The fully assembled PUMPAK allows for quick installation, minimizing downtime.
Typical Applications:
- Transfer of agricultural fertilizers
- Chemical fluid transfer
- Diesel Exhaust Fluid (DEF) distribution
- Reverse osmosis (R.O.) water transfer
